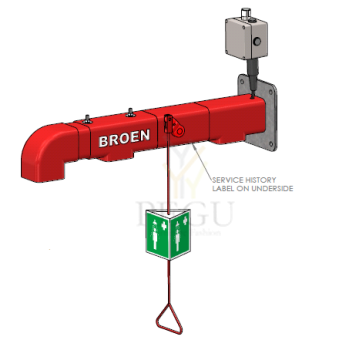

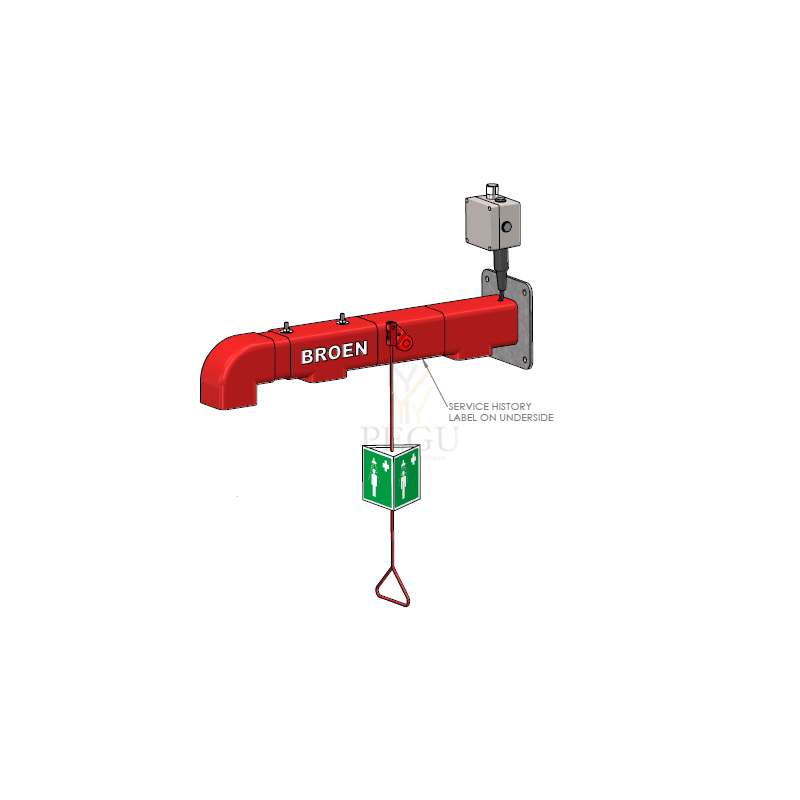

Broen SOS душ для безопасности для тела настенный ARCTIC

Артикул: B-H7230011000321
Бренд:
Единица: комплект
Время доставки: 7-8 недель
Цена:
3786,00 €
Кол-во: - +
   - или -

Min. working pressure: 1.5 bar for all Eye Showers

Файлы

Схожие продукты
Broen-Lab Greenline nood-oogdouchecombinatie, aansluitmaat 1.1/4", 1 sproeikop, vloer, binnendraad, bediening nooddouche trekstang (pullhandle), elektronisch 24V, incl. ogendouche, met opvangbak, oogdouche met opvangbak


Артикул: B-H7410021000321 ,   Время доставки: 3-4 недели
7476,00 €

SOS dušš, seinale kinnituv 1/2"

Артикул: BR-17582009 ,   Время доставки: 7-14 дней
437,40 € (10%)
486,00 €

Wall mounted double eye wash

Wall mounted eye shower with a two 45° angled heads, incl. 1.5m inlet hose.

Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (14 l/min).



Description

Wall Mount Double Eye Wash

SAFETY

Improved trigger lock

Improved activation of the shower

OPERATION

Stay-open dust cap

Light weight

Well-balanced construction

Better spray pattern

RELIABILITY

Easy-to-clean spray head

Anti-limescale design and material choice

Improved functionality

Longer lifetime

Артикул: B-27100091003011 ,   Время доставки: 14-21 день
420,00 €

Eye wash and safety shower combination
Ref. 9203

Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".

Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).

TECHNICAL FEATURES

Eye wash and safety shower combination
Ref. 9203

Supply F1"
Height 2207mm
Length 660mm
Drop height 2115mm
Flow rate 120 lpm at 3 bar dynamic pressure
Артикул: DE-9203 ,   Время доставки: 14-21 день
1350,00 €

Free-standing eye wash station
Ref. 9201

Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".

TECHNICAL FEATURES

Free-standing eye wash station
Ref. 9201

Height 1050mm
Depth 500mm
Flow rate 20 lpm
Finish Epoxy
Артикул: DE-9201 ,   Время доставки: 14-21 день
850,00 €
