Delabie Be-line lift-up съёмное душевое сидение алюминий антрацит
Коды и спецификации доступны по запросу для проектов и точного подбора.
Мы рекомендуем делиться ссылкой на товар, а не только кодом — это исключает ошибки.
Обратитесь напрямую: info@pegu.ee
Единица: шт
Время доставки: 14-21 день
✅ На PEGU.ee мы выбираем то, что действительно приятно иметь дома.
Умные решения, красивый дизайн, проверенное качество.
Покупая у нас, вы выбираете уверенность и спокойствие.

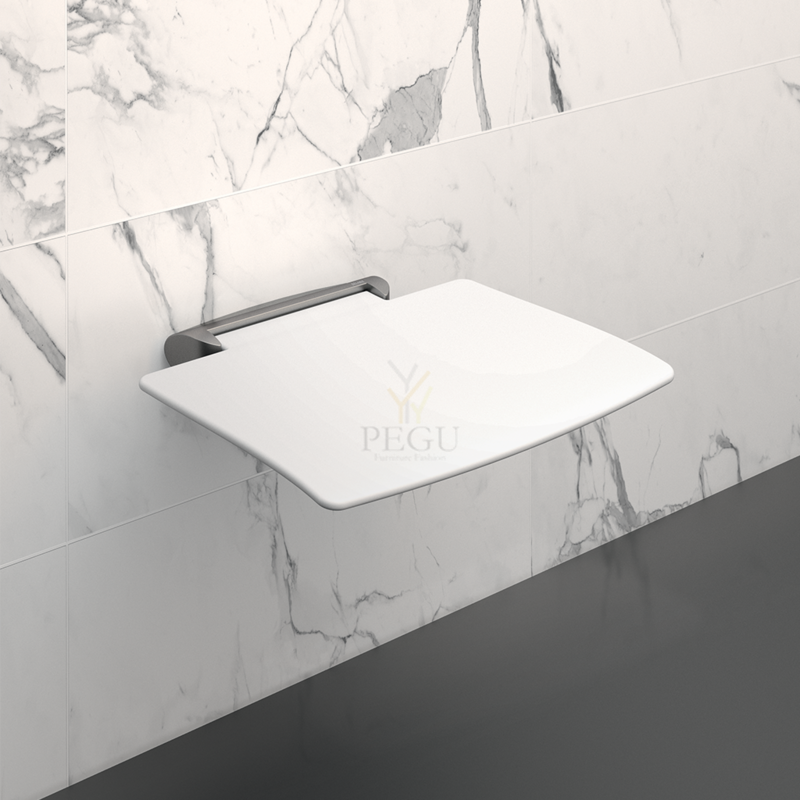

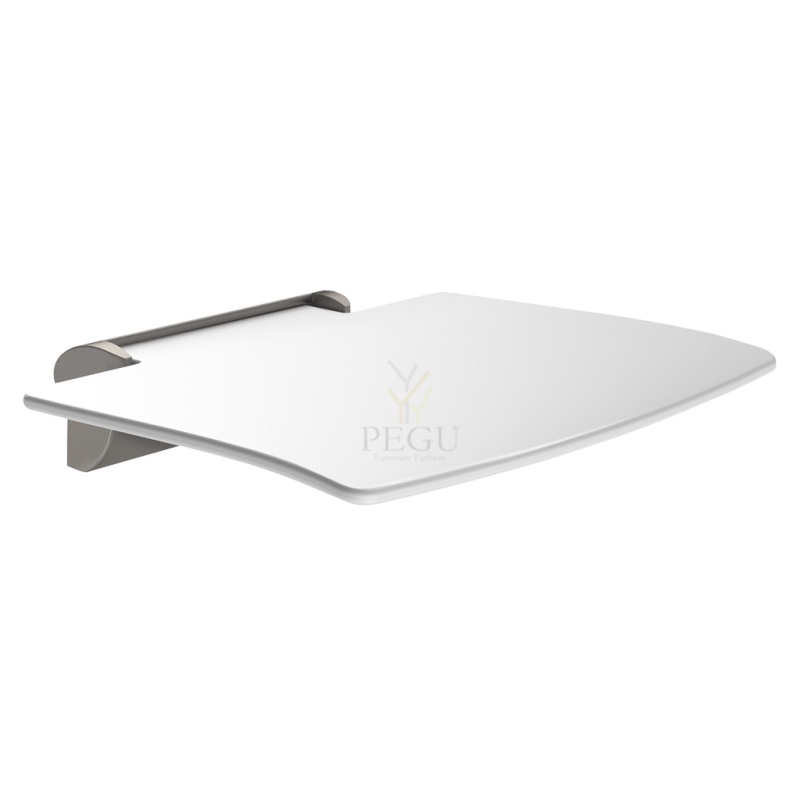

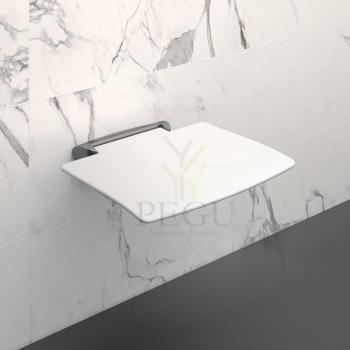

Be-line lift-up shower seat
Ref. 511920C
Be-line removable lift-up shower seat for people with reduced mobility.
Large model.

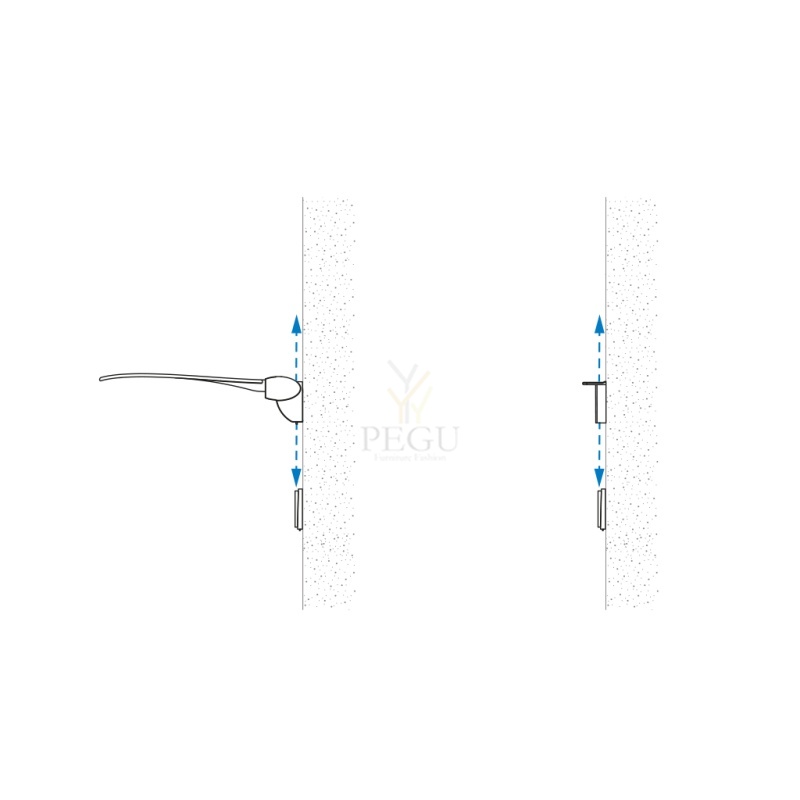

Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid, reinforced seat made from high strength polymer which can be installed, without a supporting leg, on any suitable wall.
Non-slip surface.
Metallised anthracite powder-coated aluminium provides a good visual contrast with the wall.
Solid aluminium mounting bracket.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 455 x 450 x 90mm.
Folded dimensions: 85 x 470mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Файлы
Technical features
Be-line lift-up shower seat
Ref. 511920C
| Height | 90mm |
|---|---|
| Depth | 455mm |
| Width | 450mm |
| Finish | Metallised anthracite powder-coated aluminium |
Kuni 100kg
Nova2 Care
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW
Be-Line matte white cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Matte white |
Крепление настенное инвалидное L-форма 800x800x70 белое
Horisontaalne nurga käetugi, 3-punkti kinnitus. Toru d 32 mm.
• 90º wall to wall horizontal grab bar for showers, baths and changing rooms, with three anchoring points and with snap flange covers, made with stainless steel tube, folded in an "L" shape at 90º.
• Designed to achieve barrier-free accessibility in bathrooms and public spaces. This grab bar is suitable for specific spaces for the elderly or people with reduced mobility. Model suitable for collectivities.
• Stainless steel gives this bar great durability and great resistance to rust.
• The bar has three snap flange covers that conceal the anchoring screws to the wall and reinforce, even more, the beauty of the product once installed.
• Optionally, these bars can be electrically isolated by installing the Electrical Isolation Kit code KA0020.
• Supplied with all the necessary hardware to fix the bar to a brick wall.
General description
Mediepoxi / Medinox series
BD0700C BD0700CS Bright finish Satin finish
-
90o wall to wall horizontal grab bar for showers, baths and changing rooms, with three anchoring points and with snap flange covers, made with stainless steel tube, folded in an "L" shape at 90o.
-
Designed to achieve barrier-free accessibility in bathrooms and public spaces. This grab bar is suitable for specific spaces for the elderly or people with reduced mobility. Model suitable for collectivities.
-
Stainless steel gives this bar great durability and great resistance to rust.
-
The bar has three snap flange covers that conceal the anchoring screws to the wall and reinforce, even more, the beauty of the product once
installed.
-
Optionally, these bars can be electrically isolated by installing the Electrical Isolation Kit code KA0020.
-
Supplied with all the necessary hardware to fix the bar to a brick wall.
Components and materials
-
BD2700: 90o wall to wall horizontal grab bar with three anchoring points, made with AISI 201 stainless steel tube white finish.
-
BD2700B: 90o wall to wall horizontal grab bar with three anchoring points, made with AISI 201 stainless steel tube matte black finish.
-
BD0700C: 90o wall to wall horizontal grab bar with three anchoring points, made with AISI 304 stainless steel tube bright finish.
-
BD0700CS: 90o wall to wall horizontal grab bar with three anchoring points, made with AISI 304 stainless steel tube satin finish.
-
TUBING: made of stainless steel 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the
diameter along the bends.
-
CONCEALED WALL BRACKET: three units made of stainless steel sheet, 3 mm thick and joined to the bar by welding to the ends of the
tube. It has three holes (BD2700 and BD2700B) or two holes (other references), with a diameter of 6.5 mm that allow the fixing of the bar
to the wall.
-
SNAP FLANGE COVER: three units that conceal the installation screws made of 1.5 mm thick polypropylene (BD2700 and BD2700B) or
0.8 mm thick stainless steel (other references).
