Delabie Be-line lift-up съёмное душевое сидение с ногой алюминий антрацит

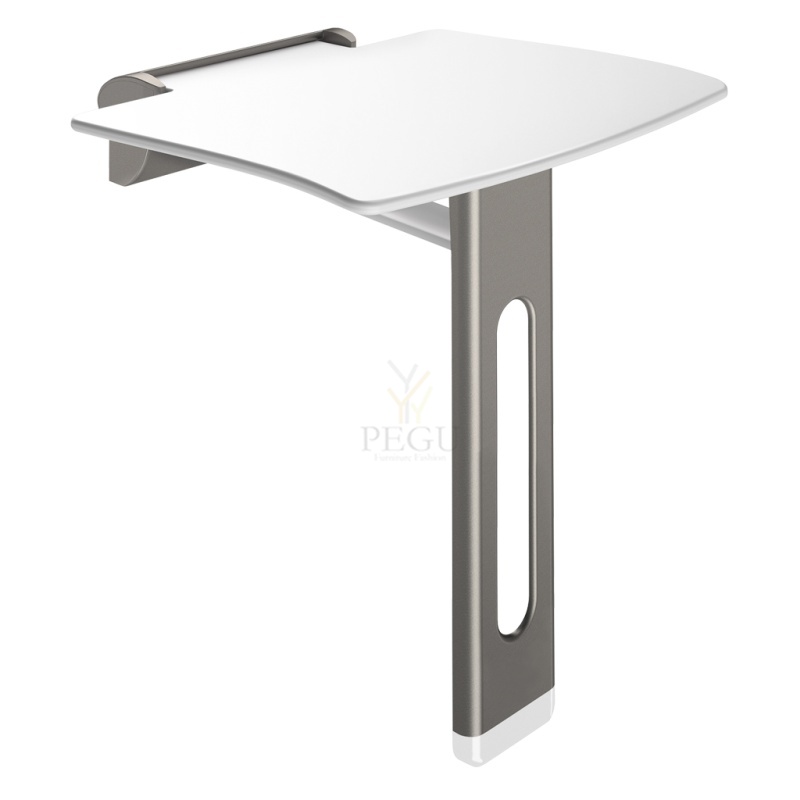

Be-line lift-up shower seat with leg
Ref. 511930C
Be-line removable lift-up for people with reduced mobility.
Large model.

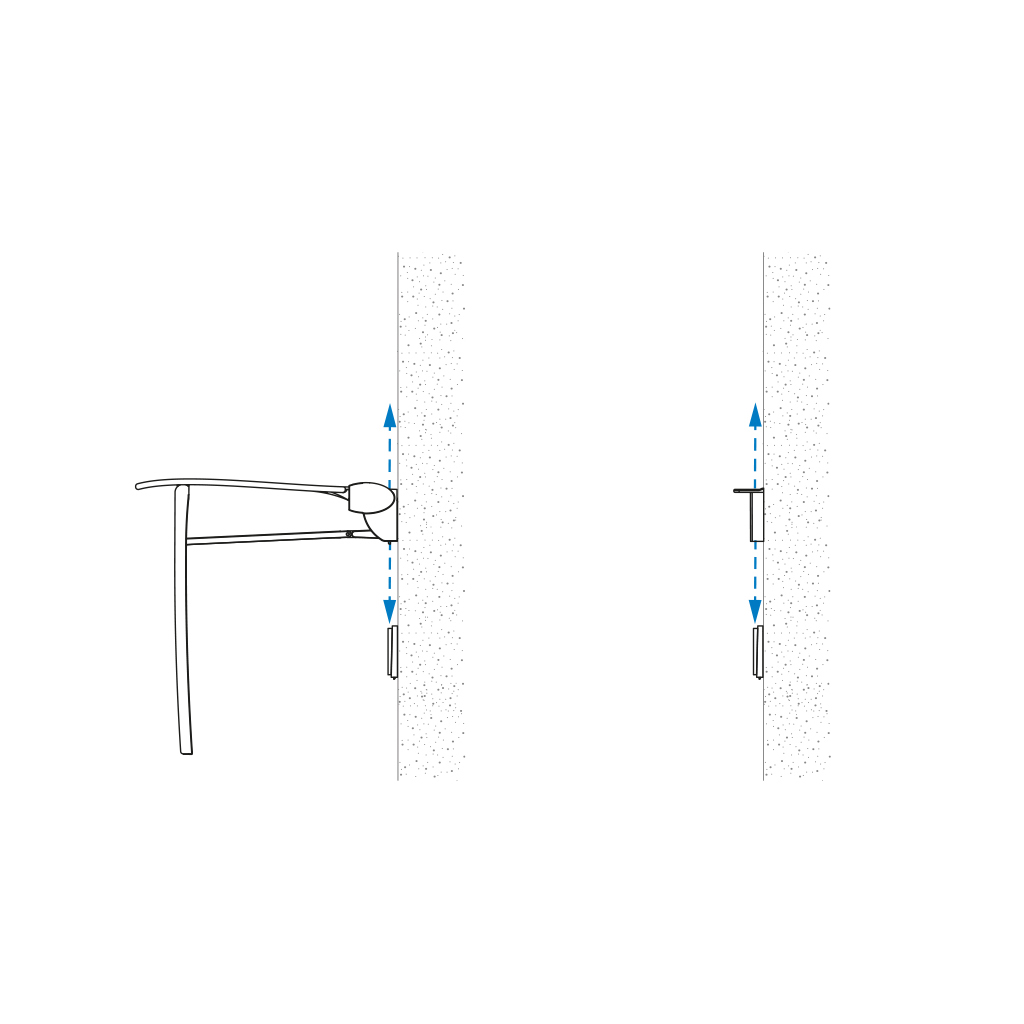

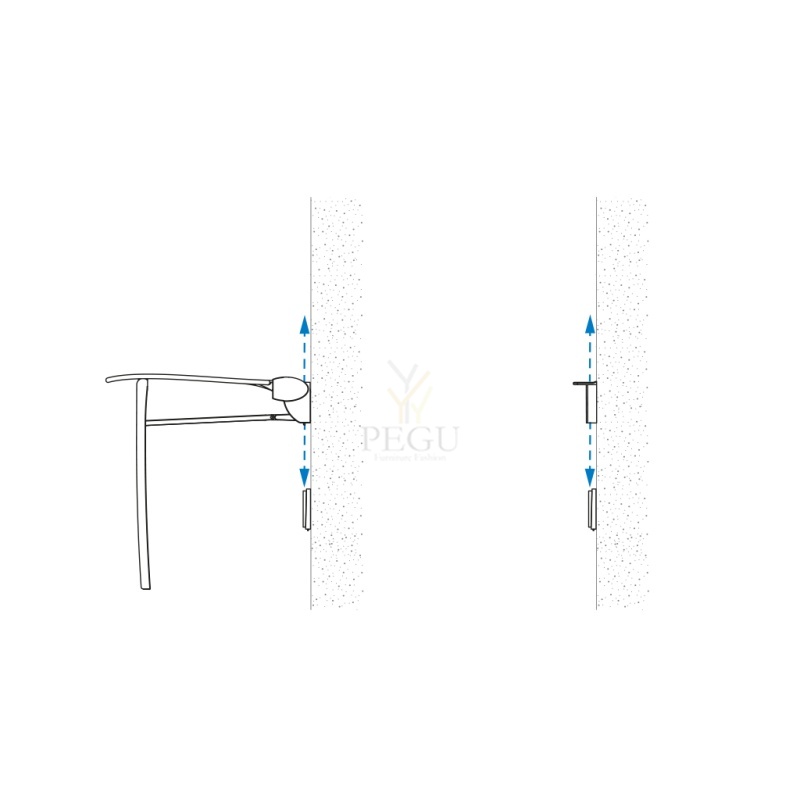

Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid seat made from high strength polymer.
Non-slip surface.
Reinforced by a central, hinged leg which folds automatically.
Metallised anthracite finish provides a good visual contrast with the wall.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.

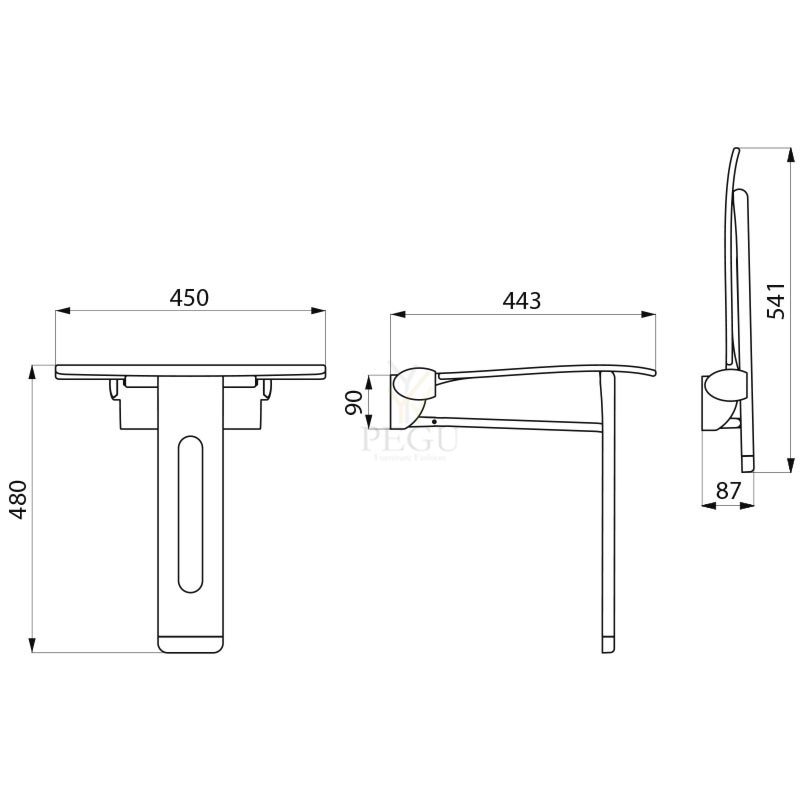

Dimensions: 443 x 450 x 480mm.
Folded dimensions: 87 x 541mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-line lift-up shower seat with leg
Ref. 511930C
Height | 480mm |
---|---|
Depth | 443mm |
Width | 450mm |
Finish | Metallised anthracite |
DESCRIPTION
Wall-mounted shelf for showers to conceal fixings
Ref. 511921FW
Matte white wall-mounted shelf for showers to conceal fixings with mounting bracket for Be-Line shower seats.
Conceals the mounting bracket when the lift-up shower seat is removed.
Reduces the number of lift-up shower seats in a facility, allowing installation only when required. E.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 55 x 275 x 90mm.
TECHNICAL FEATURES
Wall-mounted shelf for showers to conceal fixings
Ref. 511921FW
Height | 90mm |
---|---|
Depth | 55mm |
Width | 275mm |
Finish | Matte white |
Lift-up shower seat with ALU leg- Large model
Ref. 510410
Lift-up ALU shower seat with leg, for people with reduced mobility.
Large model.
Large plastic slats, comfortable and easy to maintain.
Folding leg guided by an articulated arm.
Structure made from white aluminium tube Ø 25mm x 2mm.
Concealed fixings.
Dimensions: 430 x 465 x 480mm.
Folded dimensions: 82 x 565mm .
Leg height can be adjusted up to 8mm.
Ergonomic non-slip side grips.
Seat height: 480mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
CE marked.
TECHNICAL FEATURES
Lift-up shower seat with ALU leg- Large model
Ref. 510410
Height | 480mm |
---|---|
Depth | 430mm |
Width | 465mm |
Finish | White powder-coated aluminium |
Be-Line® matte white straight grab bar Ø 35mm, L. 300mm
Ref. 511903W
Be-Line® straight grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall:minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
300mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-Line® matte white straight grab bar Ø 35mm, L. 300mm
Ref. 511903W
Length | 300mm |
---|---|
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte white powder-coated aluminium |
Be-line corner grab bar 2 walls, white
Ref. 511941W
Be-Line corner grab bar Ø 35mm for showers.
Use as a shower rail and to support the user in an upright position.
Helps and secures entry and movement in the shower also with getting in and out of the bath.
Helps with the transfer from a wheelchair to the toilet seat.
Dimensions: 695 x 695mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-line corner grab bar 2 walls, white
Ref. 511941W
Length | 695mm |
---|---|
Width | 695mm |
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte white powder-coated aluminium |
Normbau Verso Care lift-up shower seat душевое сидение, 412 x 446 x 482 (128)mm
Normbau Verso Care lift-up shower seat dušiiste, 412 x 446 x 482 (128)mm
Verso Care lift-up shower seat,
412 x 446 x 482 (128)mm
wall bracket made of stainless steel, scratch-resistant powder coating, support bracket made of aluminium, scratch-resistant powder coating, seat made of thermoplastic polypropylene, ergonomically visible seat with rounded outer edges, available in NORMBAU colors 018 and 019, with adjustable brake, locked in the upright position, easy construction, maximum loading permitted: 150 kgs, tested, respond TÜV requirement (in accordance
with DIN 18040).
The fixing set should be ordered separately to suit the type of wall.
341,60 €
