|Water inlet||G 1/2"|
|Water pressure||2 – 6 Bar, recommended 3 Bar|
|Outlet||d = 40 mm|
|Inner dimensions of sink||d = 290 mm|
Delabie коллективная раковина CANAL 1400mm нержавеющая сталь сатин

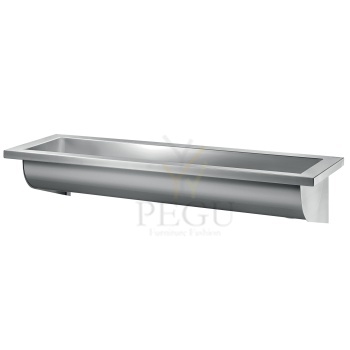

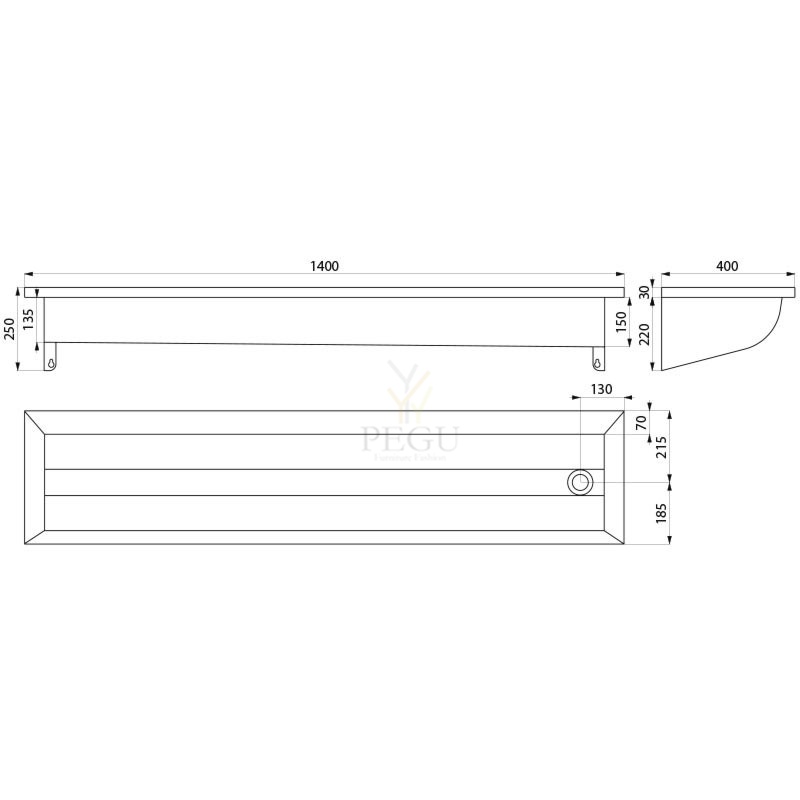

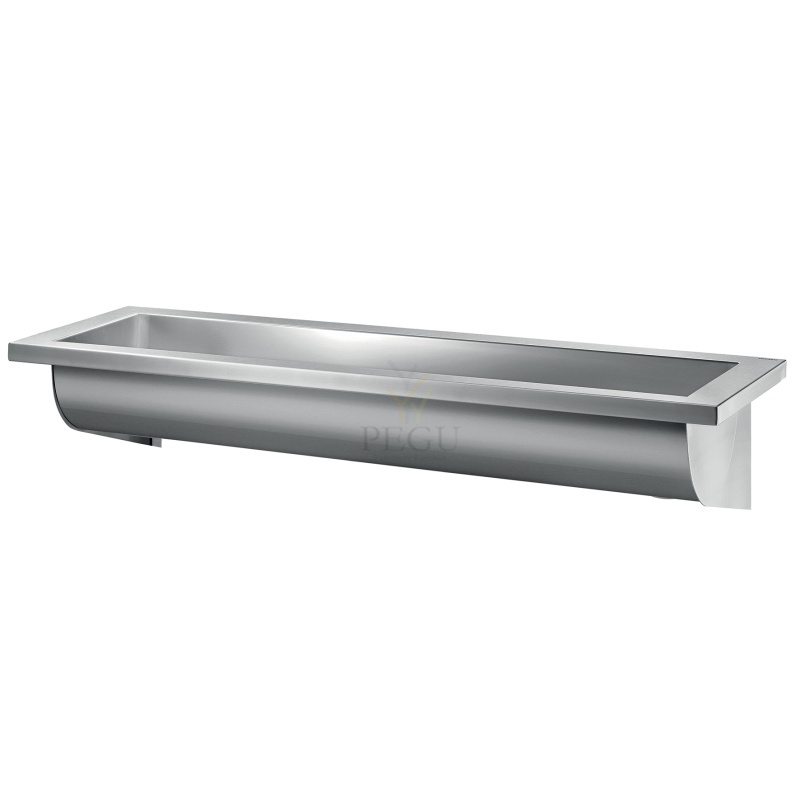

CANAL wall-mounted wash trough
Wall-mounted wash trough for 2-3 posts - L. 1,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800003).
Pesurenn konsoolidega 1200mm
Stainless steel floor standing bulk sink, 700x700x850 mm
- stainless steel bulk sink with supporting legs with a sheating
- without a tap hole (could be made to order)
- possibility of fine plane regulation by the regulation screws on the supporting legs
- available also in dimensions 600 x 600 x 850 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
- different dimensions could be made to order
Urinal infra-red flushing unit with a mounting box, 24 V DC
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
Mounting box dimension:140 x 140 x 75 mm
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)
AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl
- stainless steel column and cone with nozzle
- press valve
- anchoring construction
- flexible hose siphon
- connecting hoses
- anchoring material
- Set-up water inlet - pipe G 1/2“
- Set-up drainage d = 40 mm
- Prepared alcove for embedding (concreting) in the base construction
R/V teras WC pott ja valamu
AISI304 paksus 1,5 mm
Kinnitus poltidega läbi seina
Loputus ühendus 1"
WC äravool 100mm
Valamu ärravool 32mm
NB! Vee mehhanismid on vaja tellida eraldi
