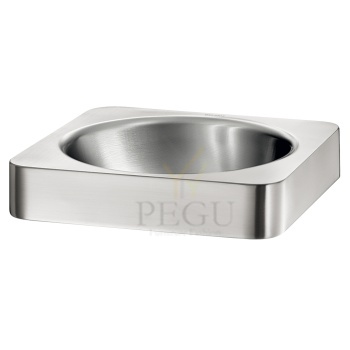

Delabie раковина полуутопленная QUADRA 380x380, Н/Р сталь AISI304

Артикул: DE-120650
Бренд:
Единица: шт
Время доставки: 14-21 дней
Цена: 610,00 €
549,00 €
Kuumakse alates: 46,67 €
Кол-во: - +
   - или -

Semi-recessed QUADRA washbasin
Ref. 120650

Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.



TECHNICAL FEATURES

Semi-recessed QUADRA washbasin
Ref. 120650

Height 130mm
Length 380mm
Width 380mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
