|Water inlet||G 1/2"|
|Water pressure||2 – 6 Bar, recommended 3 Bar|
|Outlet||d = 40 mm|
|Inner dimensions of sink||d = 290 mm|

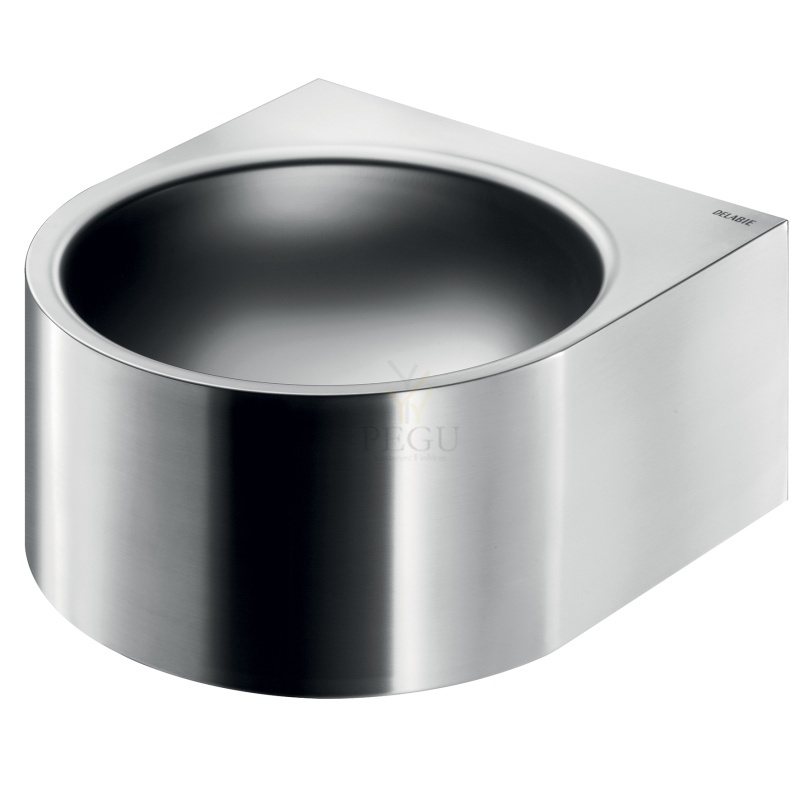

Delabie раковина FACIL 390x360mm нержавеющая сталь сатин
FACIL wall-mounted washbasin
Wall-mounted washbasin, 360x390mm.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" grated waste, and reducer from 2" - 1 1/2".
automatic washing system for wellingtons with jets - 12V, 50Hz
|Radius of sensor||0 – 0,4 m|
|Water inlet||G 1/2“|
|Water pressure||0,3 – 1,0 MPa|
|Outlet||d = 32 mm|
|Inner dimensions of the trough||250 x 400 x 280 mm|
|Electricity protection||IP 55|
|Power supply||12 V, 50 Hz|
|Power requirement||10 VA|
|Source of power supply||ZAC 1/20 (max. 2 x AMO 01)|
|ZAC 1/50 (max. 5 x AMO 01)|
- Set up water inlet as per picture
- Set up outlet d = 32 mm
- Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)
AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl
- stainless steel column and cone with nozzle
- press valve
- anchoring construction
- flexible hose siphon
- connecting hoses
- anchoring material
- Set-up water inlet - pipe G 1/2“
- Set-up drainage d = 40 mm
- Prepared alcove for embedding (concreting) in the base construction
drinking fountain with cooling designed to stand and to be attached to wall
AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
|dimensions||330 x 900 x 365 mm|
|water outlet||d = 40 mm|
|water inlet||G 1/2"|
|water pressure||0,2 – 0,6 MPa, recommended 0,3 MPa|
|power supply||230 V, 50 Hz|
|power input||820 W|
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or electric cable CYKY 3C x 1,5
