Душевая панель Delabie SECURITHERM с термостатом самовыключающаяся 30 sek ALU

Артикул: DE-792330
Бренд:

Единица: шт
Время доставки: 14-21 день

Попробуй промокод PEGU-KEVAD! Выбери товар по полной цене, добавь в корзину, и введи код купона при покупке! Время работы промокода ограничено!

kuumaks al. 109,55 €

Цена:

1274,90 €

Kuumakse alates: 109,55 €

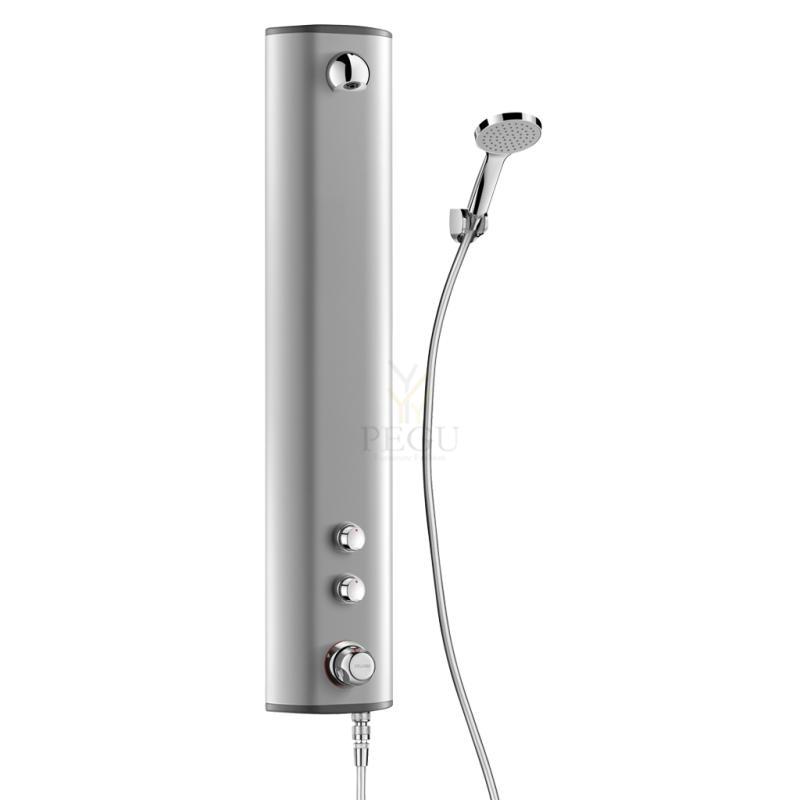

SECURITHERM shower panel
Ref. 792330

SECURITHERM dual control thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles, M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Time flow valve ~30 seconds with soft-touch operation.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.

Файлы

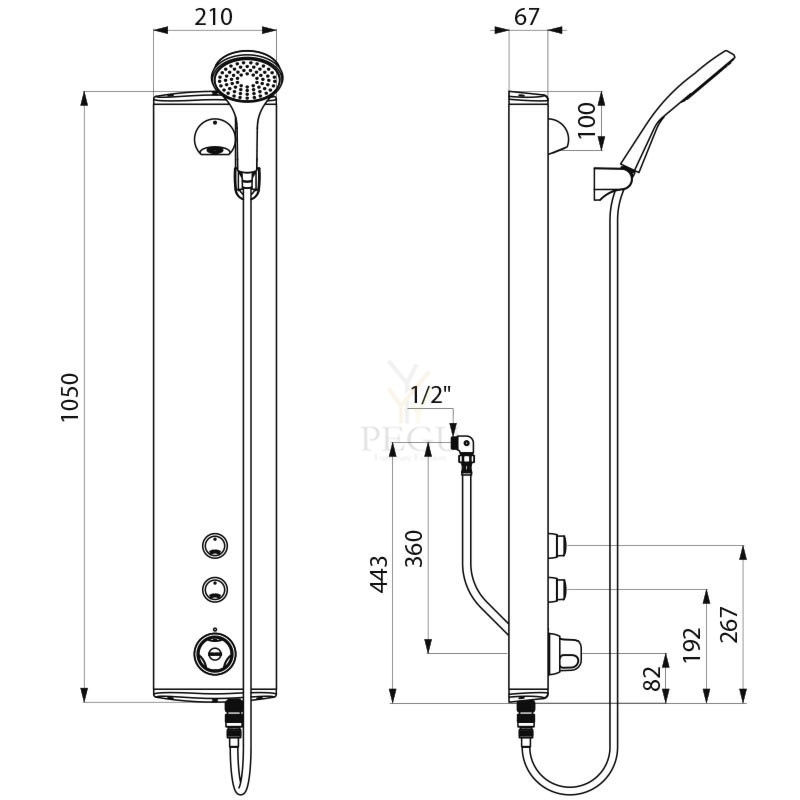

TECHNICAL FEATURES

SECURITHERM shower panel
Ref. 792330

Connector	M1/2"
Technology	Time flow
Height	1050mm
Depth	65mm
Width	210mm
Flow rate	6 lpm
Temperature limiter	thermostatic
Finish	Aluminium

Схожие продукты

Смеситель на раковину самозапорный, 15sek 3bar

Vajutava nupuga segisti

Idral

kroom

15 sek. töötsükkel 3 bar

6 l/min

Артикул: IDR-08212 , Время доставки: 7 дней

176,90 €

AZP Brno адаптор 1-3 потребителя

	ZAC 1/20, ZAC 1/50, ZAC 1/36L power supply

ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).

Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage:	230 V, 50 Hz
Output voltage:	12 V, 50 Hz
Power requirement:	20 VA (ZAC 1/20)
	50 VA (ZAC 1/50)
	36 VA (ZAC 1/36L)
Electricity protection:	IP 55 (ZAC 1/20, ZAC 1/50)
	IP 20 (ZAC 1/36L)
Weight:	0,8 kg (ZAC 1/20, ZAC 1/36L)
	1,2 kg (ZAC 1/50)

Requirements for setting up the construction

ZAC 1/20, ZAC 1/50

Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
Set-up niche for flush mounting – size as per installed source
Distribution to each device is carried out by cable CYKY 2Ax1,5

ZAC 1/36 L

It is installed on the DIN-rail - width of 4 modules

Figure
ZAC 1/20

ZAC 1/50

Product title

ZAC 1/20 -

power supply for up to 3 devices - 230V, 50Hz

ZAC 1/50 -

power supply for up to 8 devices - 230V, 50Hz

ZAC 1/36L -

power supply for up to 6 devices - 230V, 50Hz

Артикул: AZP-ZAC 1-20 , Время доставки: 3-4 недели

105,00 €

Душевая панель с рычажным смесителем PRESTOTEM2 SINGLE CONTROL

> Working pressure :

1 to 5 bar

> Flow :

10 l/min with integrated flow limiter
Fixed shower head with anti-limescale spikes

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 Single control mixer tap with ceramic disks

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Артикул: P88816 , Время доставки: 14-21 день

1073,60 €

Душевая панель с рычажным смеситеелм, и лифтом PRESTOTEM2 SINGLE CONTROL

> Working pressure :

1 to 5 bar

> Flow :

10 l/min with integrated flow limiter
Hand-held shower on rail with chrome plated slide

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to use the adaptation kit under the reference 91026. On single control mixer tap with ceramic disks

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Артикул: P88818 , Время доставки: 14-21 день

1165,10 €

Delabie TEMPOMIX душевой комплект, с настройкой на выключение 30 sek , самовыключающийся

TEMPOMIX shower kit
Ref. 790912

Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

TECHNICAL FEATURES

TEMPOMIX shower kit
Ref. 790912

Connector	1/2"
Technology	Time flow
Flow rate	6 lpm

Артикул: DE-790912 , Время доставки: 14 дней

579,50 €
