Dušipaneel Delabie SECURITHERM termostaadiga isesulguv 30 sek ALU 792320 Zoom

Душевая панель Delabie SECURITHERM с термостатом самовыключающаяся 30 sek ALU 792320

Артикул: DE-792320
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1545,00 €
Kuumakse alates: 131,33 €
Кол-во: - +

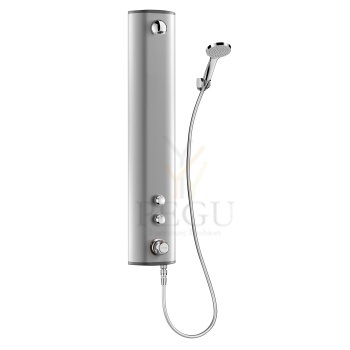

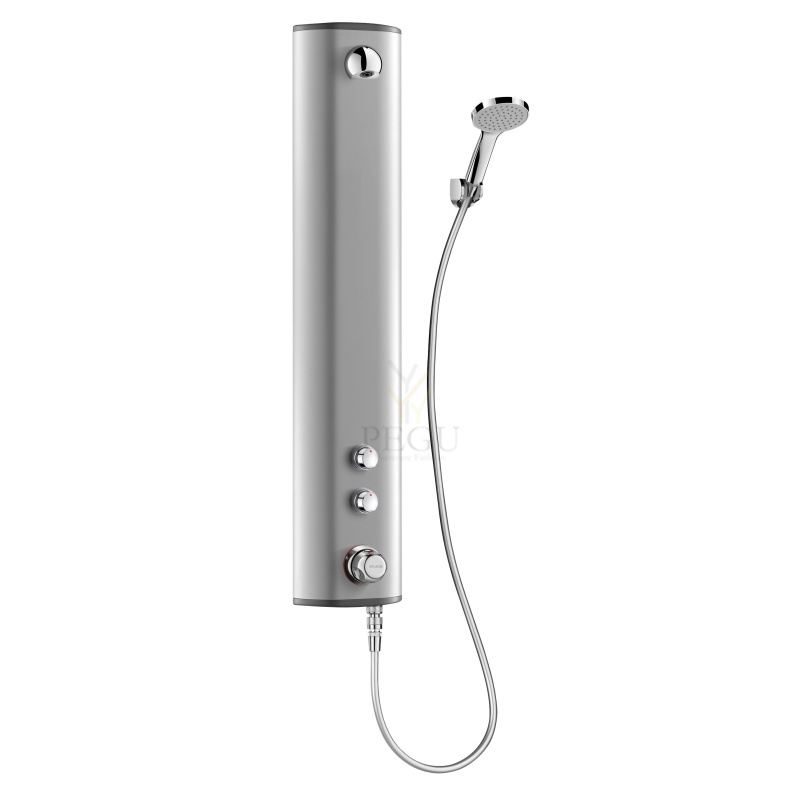

Душевая панель Delabie SECURITHERM с термостатом самовыключающаяся 30 sek ALU 792320

SECURITHERM shower panel
Ref. 792320

SECURITHERM dual control thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks, M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Time flow valve ~30 seconds with soft-touch operation.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.

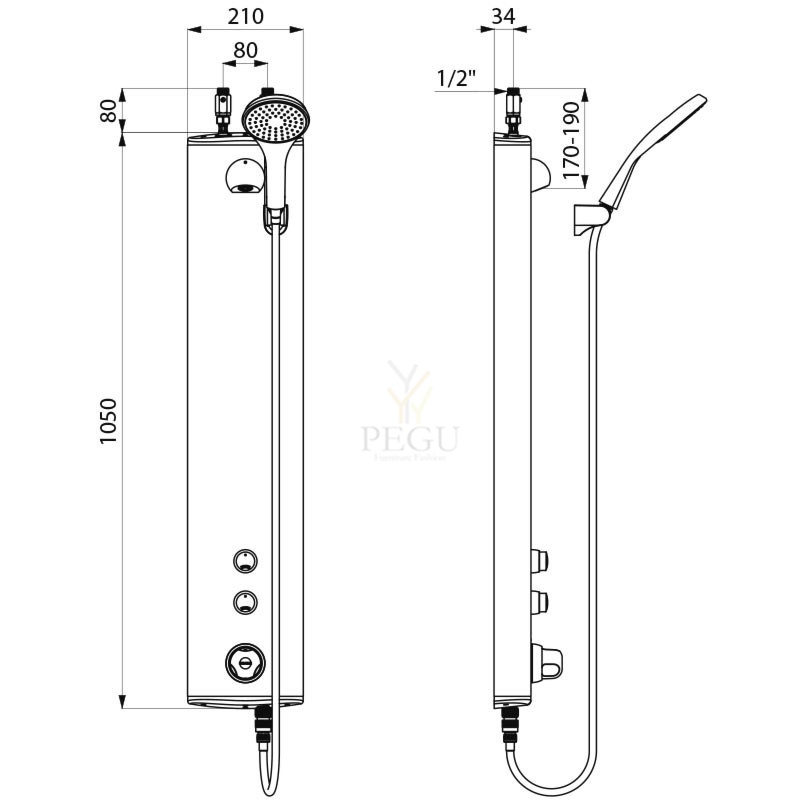

TECHNICAL FEATURES

SECURITHERM shower panel
Ref. 792320

Connector M1/2"
Technology Time flow
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Temperature limiter thermostatic
Finish Aluminium
