Dušipaneel Delabie SECURITHERM termostaadiga electronic 6V RST 792514 Zoom

Душевая панель Delabie SECURITHERM с термостатом сенсорная 6V RST

Артикул: DE-792514
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1692,30 €
Kuumakse alates: 143,85 €
Кол-во: - +

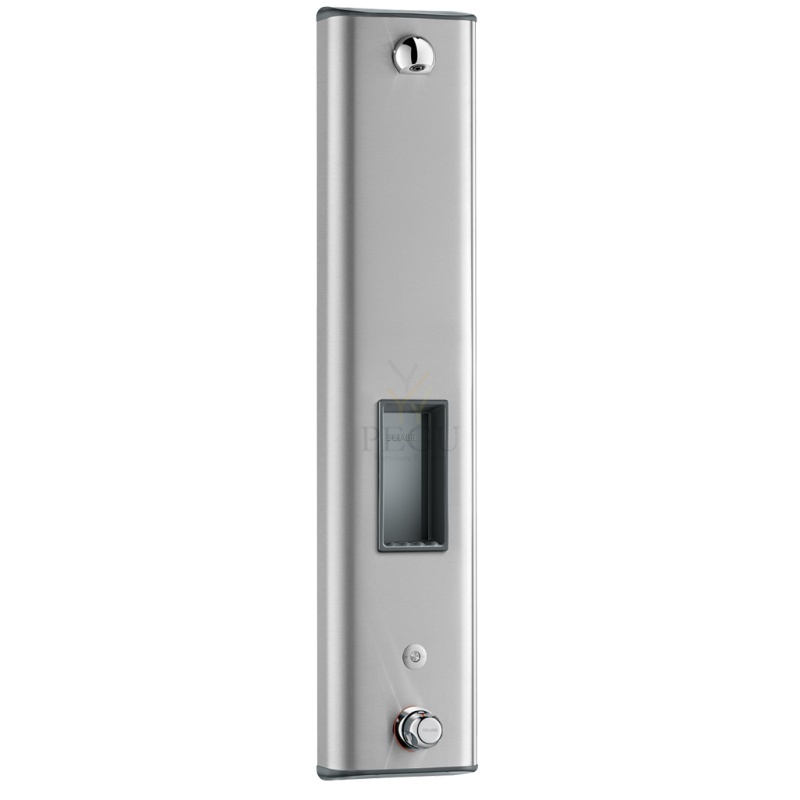

SECURITHERM shower panel
Ref. 792514

Electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Filters and non-return valves.
Stopcocks M1/2".
Concealed fixings.

TECHNICAL FEATURES

SECURITHERM shower panel
Ref. 792514

Supply 230/6V mains supply
Connector M1/2"
Technology Electronic

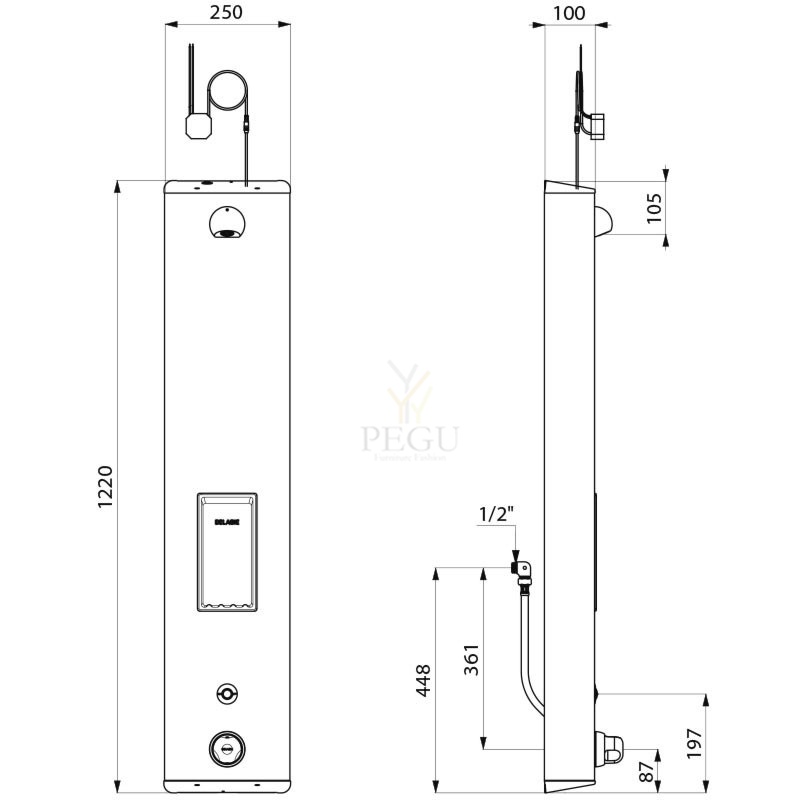

Height 1220mm
Depth 100mm
Width 250mm
Flow rate 6 lpm
Temperature limiter thermostatic
Finish Stainless steel
