Главная » Душевая панель PRESTOTEM2 ALPA, самозапорный - 30 sek рабочий цикл, с лифтом
88810.jpg Zoom

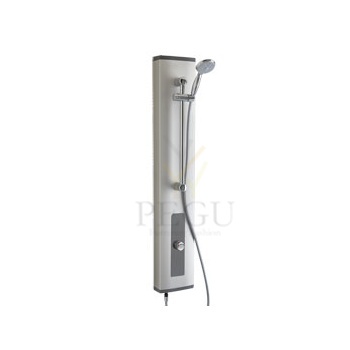

Душевая панель PRESTOTEM2 ALPA, самозапорный - 30 sek рабочий цикл, с лифтом

Артикул: P88810
Бренд:
Единица: шт
Время доставки: 14-21 день

Попробуй промокод PEGU-KEVAD! Выбери товар по полной цене, добавь в корзину, и введи код купона при покупке! Время работы промокода ограничено!

ESTO järelmaks kuumaks al. 100,31 €
Цена:
1165,10 €
Kuumakse alates: 100,31 €
Кол-во: - +

> Working pressure : 1 to 5 bar

> Flow : 6 l/min with integrated flow limiter Anti-water-hammering design Hand-held shower on rail with chrome plated slide > Flow time : 30 seconds (± 5 sec.)

> Hydraulic supply : G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA NF IB mixer tap with NF check valves

> Material : Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks > Security : Adjustable tamper-proof temperature limiter to prevent scalding

> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
