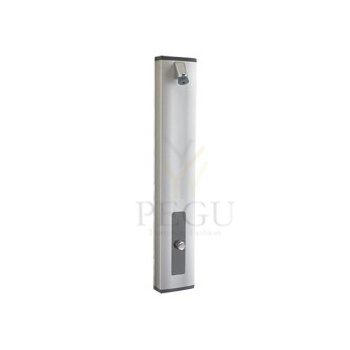

Душевая панель со смесителем PRESTOTEM2 ALPA, самозапорный - 30 sek рабочий цикл

Артикул: P88808
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1024,80 €
Kuumakse alates: 88,17 €
Кол-во: - +

Душевая панель со смесителем PRESTOTEM2 ALPA, самозапорный - 30 sek рабочий цикл

> Working pressure : 1 to 5 bar

> Flow : 6 l/min with integrated flow limiter. Anti-water-hammering design Rotating shower head with anti-limescale spikes
> Flow time : 30 seconds (± 5 sec.)
> Hydraulic supply : G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA NF IB mixer tap with NF check valves
> Material : Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS covers
> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks > Security : Adjustable tamper-proof temperature limiter to prevent scalding
> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
