Trapikaas Vieser 6005479_2.png Zoom

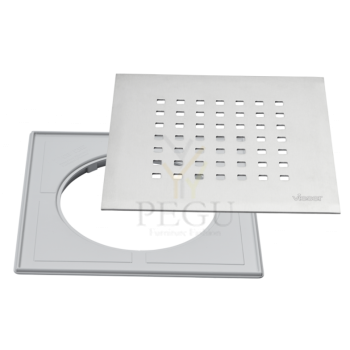

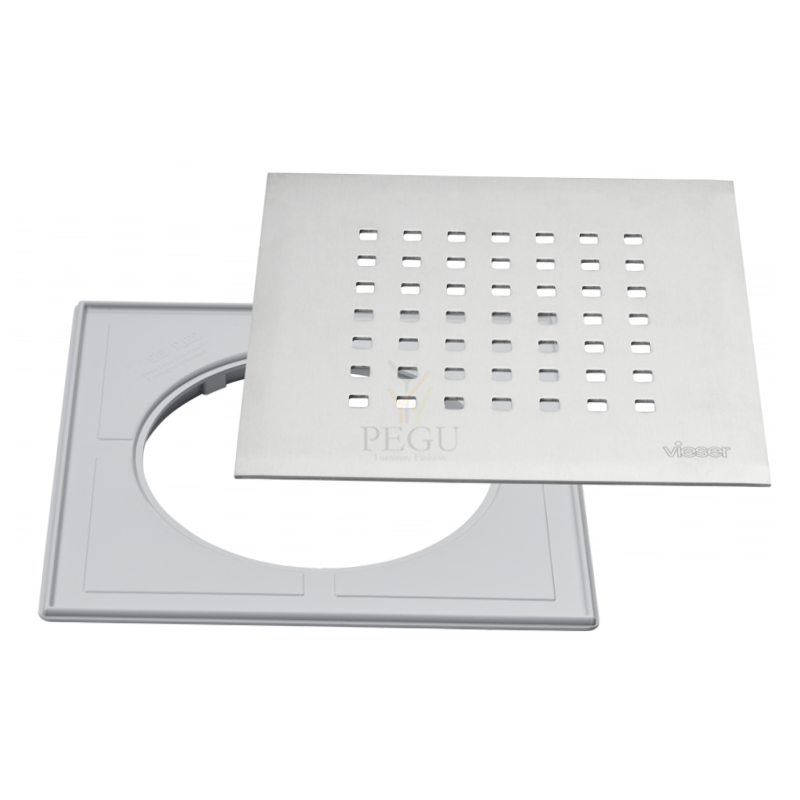

Крышка для трапа с пластиковой рамой 6005479 Vieser Grid 197x197 mm RST

Артикул: AKV6005479
Бренд:
Единица: шт
Время доставки: 3-7 дней
Цена:
64,05 €
Kuumakse alates: 5,51 €
Кол-во: - +
   - или -

Крышка для трапа с пластиковой рамой 6005479 Vieser Grid 197x197 mm RST

Trapikaas plastraamiga 6005479 Vieser Grid 197x197 mm RST

Roostevaba teras

Vieser Grid with plastic frame 197x197

HVAC No. 3317313


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings

Technical specifications

Vieser No.
6005479
HVAC No.
3317313
EAN
6430066742851
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg

Схожие продукты
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €

Vieser One 52600 горизонтальный водяной трап 50  3x32/40 с ножками

Vieser One 52600 Horisontaaltrapp 50  3x32/40 tugijalgadega



Vieser One floor drain DN 50 3×32/40 with support legs

HVAC No. 3315930
EAN 6418685526007

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.



Technical specifications

Vieser No.
52600
HVAC No.
3315930
EAN
6418685526007
Package (box/pallet)
12/96
Package dimensions
24 x 14,5 x 22,5 cm
Package weight
0,9 kg
Material
polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,2l/s
General information

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened.

The package package contains the floor drain, protective lid, support legs, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Артикул: AKV52600 ,   Время доставки: 3-7 дней
47,78 €

Крышка для трапа с регулируемой стальной рамой 51292 Vieser Classic+ 197x197 mm RST

Trapikaas reguleeritava terasraamiga AKV51292 Vieser Classic+ 197x197 mm

Roostevaba teras

 Vieser Classic+ with adjustable steel frame 197×197
HVAC No. 3315955


NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

  • Type approved based on European standard
  • (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains
  • Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Classic+ square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
51292
HVAC No.
3315955
EAN
6418685512925
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg



Артикул: AKV51292 ,   Время доставки: 3-7 дней
73,20 €

Крышка для трапа MUST пластиковая рама 6005480 Vieser Classic+ 197x197 mm RST

Trapikaas MUST plastraamiga 6005480 Vieser Classic+ 197x197 mm

roostevaba teras

Vieser Classic+ Black with plastic frame 197x197

HVAC No. 3317314


NEW!
Floor drain grating made of durable, Finnish stainless steel. A timeless and elegant redesign now available in black.

  • Type approved based on European standard (EN 1253) – Withstands up to 300 kg, excellent flow properties
  • Strong and pleasant underfoot – remains firmly in place
  • Manufactured in Finland
  • Compatible with all Vieser floor drains

The package includes the Vieser stainless steel Classic+ square grating and plastic frame.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings



Technical specifications

Vieser No.
6005480
HVAC No.
3317314
EAN
6430066742882
Package (box/pallet)
20/480
Package weight
0,6
Material
Stainless steel (AISI 304)
Durability
300 kg

Артикул: AKV6005480 ,   Время доставки: 3-7 дней
73,20 €

Vieser 6001186 DOT Kenoby, пропитанная D600MM круглая

Vieser 6001186 DOT Kenoby, õlitatud D600MM ümmargune

Vieser Dot Kebony Cover, Oiled

HVAC No. 3315993
EAN 6430066741625


One cover option offered for the Vieser Dot Design floor drain system is Vieser Dot ⌀600mm Kebony, Oiled. Kebony is wood that has been treated using natural methods. Although the treatments provide the covers with a natural protection, we recommend treating the wooden covers with a protective agent once or twice a year.

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately:



Non-toxic and ecologically produced Kebony is hard, durable and beautiful wood. Kebony® products are based on a patented process that involves impregnating the wood with furfuryl alcohol using high pressure and heat, thereby altering the wood’s molecular structure. The 100% bio-based liquid treatment, primarily based on furfuryl alcohol, is a byproduct of sugar cane production. This makes the wood non-toxic and thus completely safe. Kebony has been granted the Nordic Swan Ecolabel. Kebony is sustainably sourced: 100% radiata pine, sourced from forests that have been granted FSC, PEFC or other regional certification.

Vieser’s drain and cover combination comes with a 10-year system guarantee.




Артикул: AKV6001186 ,   Время доставки: 3-7 дней
1134,60 €
