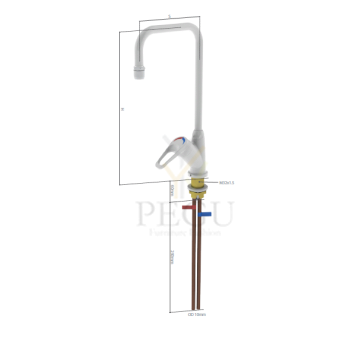

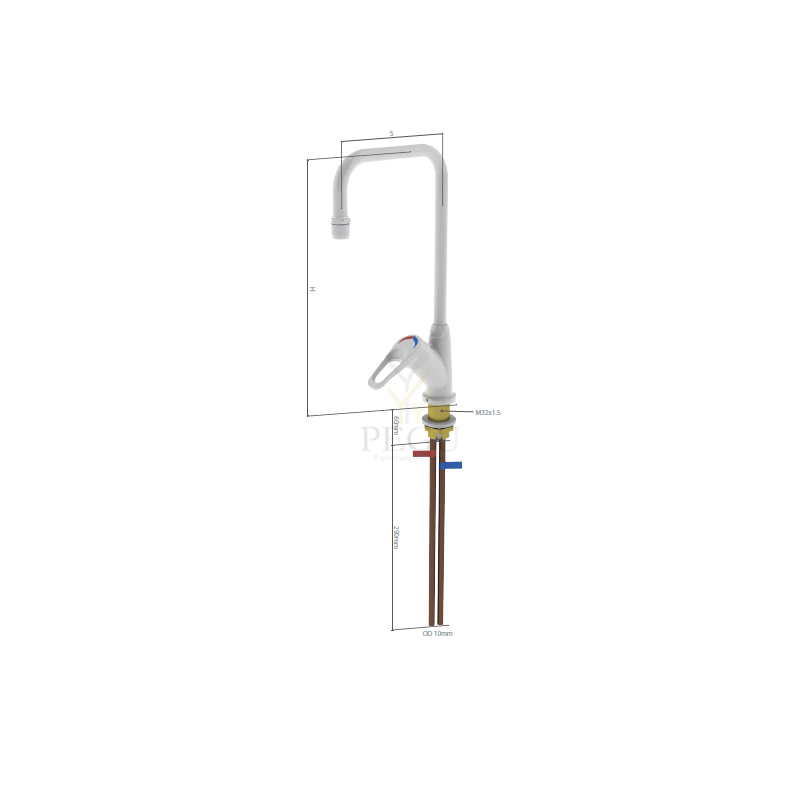

LAB смеситель с рычагом H-300mm, S-21500mm

Артикул: B-25350381035-52B
Бренд:
Единица: шт
Время доставки: 2-3 недели
Цена:
615,00 €
Kuumakse alates: 52,36 €
Кол-во: - +
   - или -
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION

Файлы

Схожие продукты
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 3 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
Solder: DIN L-Ag55:Sn
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
Артикул: B-25360131039-52B ,   Время доставки: 3-4 дня
375,00 €
 SOS душ безопасности для тела, крепление на потолок

Nöddusch med takfläns för dolda rör

Takmonterad kroppsdusch inkl. takfläns. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att förstahjälpen utrustningen syns väldigt bra, den står  även emot de flesta kemikalier, UV blekning och värme.

• Kroppsdusch med effektiv spolbild
• POLYCOAT står emot de flesta kemikalier
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 2kg
• Flöde 60l/min., vid 1,5 bar (Rör dimensioner anpassas för detta flöde)
• Anslutning: inv. DN15
Artikelnummer: 17 080 009
RSK nummer: 755 96 54

Артикул: B-17080009 ,   Время доставки: 3-4 недели
519,00 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €

Thermostatic mixing valve, eye- and body shower, 28 mm comp.

Артикул: BR-17512009 ,   Время доставки: 14-21 день
1345,00 €

SOS душ безопасности, на потолок 3/4"

Артикул: BR-17580009 ,   Время доставки: 7-14 дней
519,00 €
