Нержавеющая сталь WC настенный Delabie 700 S inva

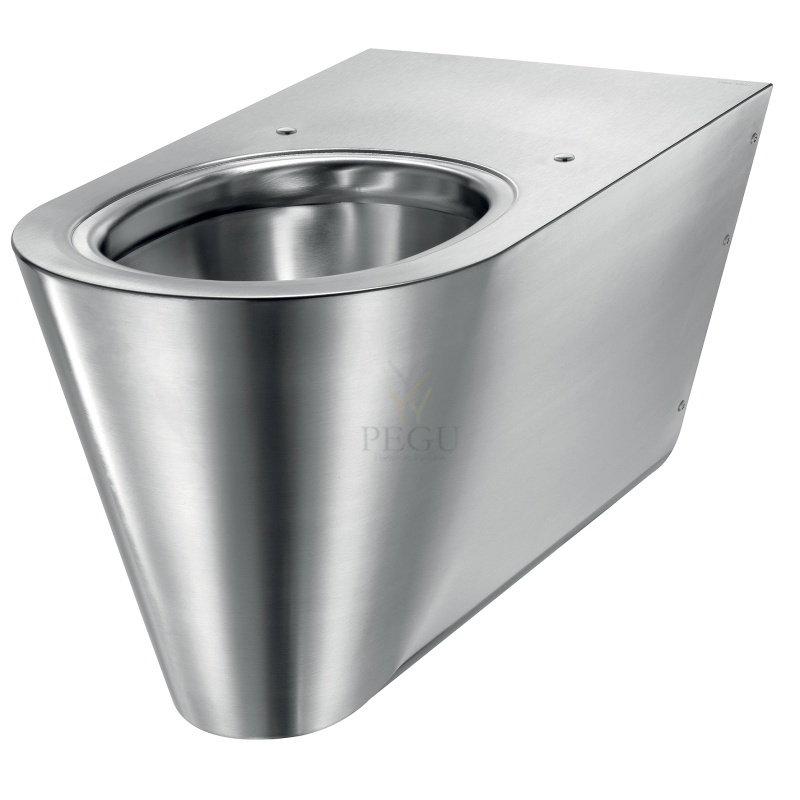

Wall-hung 700 S WC pan for disabled people
Ref. 110710

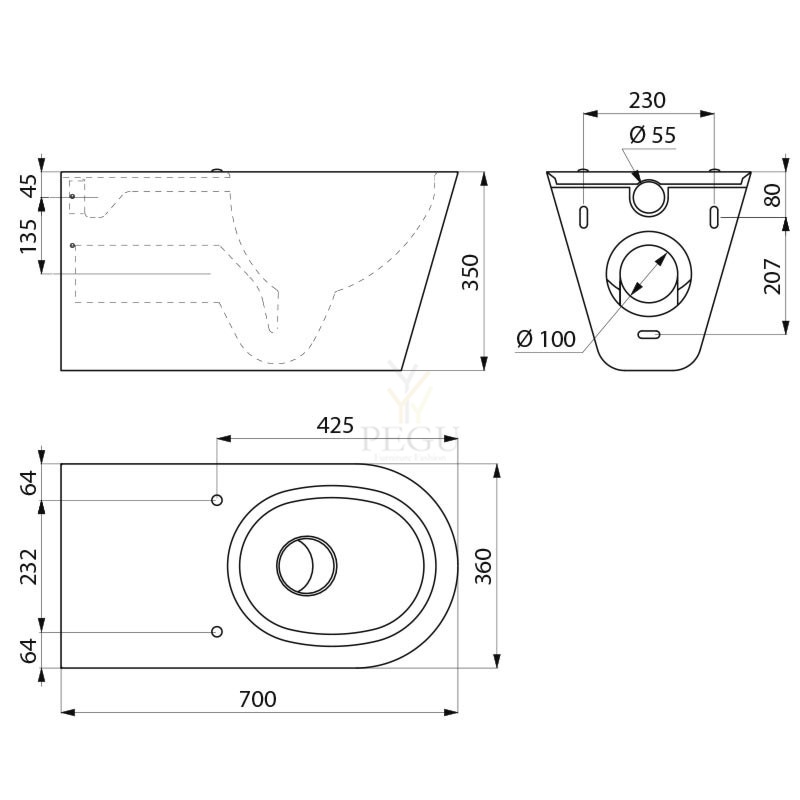

Wall-hung WC pan, 360 x 350 x 700mm.
Available with 700mm elongated pan for improved comfort for peoplewith reduced mobility (700 S).
Compatible with all standard frame systems available on the market.Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Shrouded WC pan.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 14.5kg.
Файлы
Wall-hung BCN S WC pan
Ref. 110110
Wall-hung WC pan, 360 x 375 x 550mm.
Compatible with all standard frame systems available on the market.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Shrouded pan.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steelblanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steelmounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 12kg.
S21 S TC wall-hung WC pan
Ref. 160310
Wall-hung WC pan with through-the-wall installation for service ducts.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm
Horizontal waste outlet: Ø 100mm
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths are available on request).
Shrouded WC pan.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 11kg.
[Formerly ref: 0116320001]
TECHNICAL FEATURES
S21 S TC wall-hung WC pan
Ref. 160310
Height | 350mm |
---|---|
Length | 535mm |
Width | 360mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
S21 P TC floor-standing WC pan
Ref. 160550
Floor-standing WC pan with through-the-wall installation for service ducts.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
One-piece, pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm
Horizontal waste outlet: Ø 100mm
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths available on request).
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 13.5kg.
[Formerly ref: 0116550001]
TECHNICAL FEATURES
S21 P TC floor-standing WC pan
Ref. 160550
Height | 400mm |
---|---|
Length | 580mm |
Width | 360mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
KOMPACT washbasin and floor-standing WC combination
Ref. 160700
Combination unit: washbasin and floor-standing WC pan on left sidewith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030007]
TECHNICAL FEATURES
KOMPACT washbasin and floor-standing WC combination
Ref. 160700
Height | 1000mm |
---|---|
Length | 735mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
LP trough urinal
Ref. 130310
Floor-standing trough urinal.
Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm
Rear water inlet. Central drainage.
Supplied with 2 stainless steel rinsers and 2 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 24.2kg.
TECHNICAL FEATURES
LP trough urinal
Ref. 130310
Height | 1020mm |
---|---|
Length | 300mm |
Width | 1,200mm |
Thickness | 1.2mm |
Finish | Polished satin 304 stainless steel |
