Pissuaar roostevaba teras AISI304 Delta Delabie12.jpg Zoom

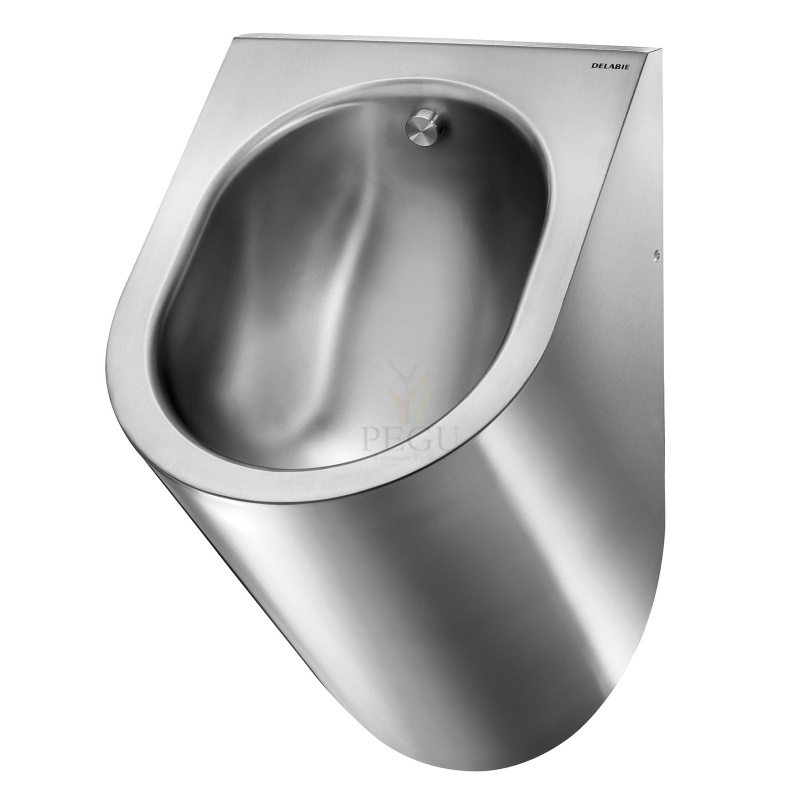

Писсуар Delabie нержавеющая сталь Delta 134770

Артикул: DE-134770
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
939,00 €
Kuumakse alates: 79,82 €
Кол-во: - +
   - или -

Писсуар Delabie нержавеющая сталь Delta 134770

Pissuaar Delabie roostevaba teras Delta 134770

DELTA wall-hung urinal

Ref. 134770

Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear (recessed) water inlet.
Recessed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½" P trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg.


TECHNICAL CHARACTERISTICS

DELTA wall-hung urinal

Ref. 134770
Height 585mm
Length 385mm
Width 350mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Схожие продукты

Seinakraan, vooliku otsaga

Pronks

1/2"

Артикул: IDR-005/PN-BR ,   Время доставки: 7 дней
83,70 € (10%)
93,00 €

Адаптер 220/24V DC 1-2 смесителя, 1-3 писсуара

Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.

Артикул: SA-SLZ01Y ,   Время доставки: 14 дней
129,00 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €

Stainless steel rectangular mirror, H. 500mm
Ref. 3452

Depth 10mm
Length Unbreakable mirror
Width 385mm
Drop height 485mm
Finish "Mirror" polished 304 stainless steel
Артикул: DE-3452 ,   Время доставки: 7-21 день
275,00 €

Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" grated waste, and reducer from 2" - 1 1/2".

Артикул: I-U4EXP ,   Время доставки: 7-14 дней
500,00 €
