Portinox WC pott INS-535-OVC + iste mahagon Zoom

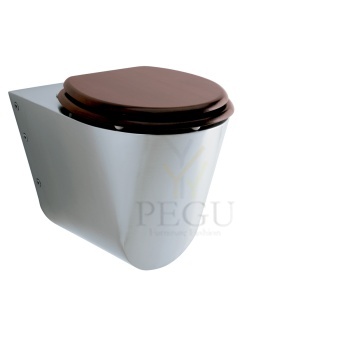

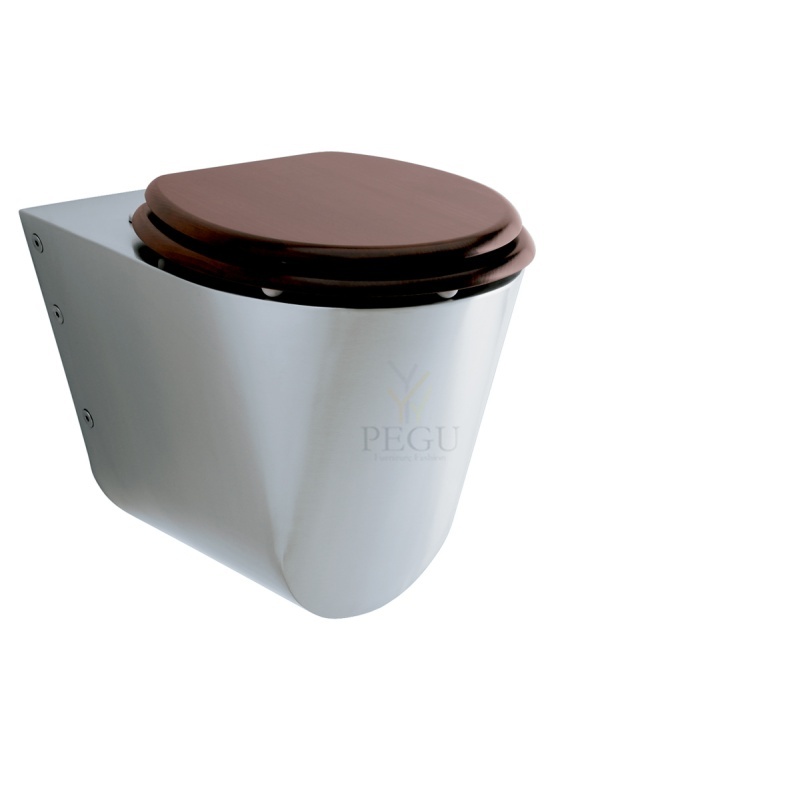

Portinox WC подвесной INS-535-OVC + сидение махагон

Артикул: PINS-535-OVC+PWC-Wood-mahagon
Бренд:
Единица: шт
Время доставки: 8 недель
Цена:
1824,43 €
Kuumakse alates: 155,10 €
Кол-во: - +

Portinox WC подвесной INS-535-OVC + сидение махагон

Нержавеющая сталь

Совместимые продукты

WC комплект TEMPOFLOX TC200 3/4" Delabie 761200

DESCRIPTION TEMPOFLUX 1 direct flush valve - Ref. 761200

Cross wall time kit for direct flush: Cross wall control, can be cut-to-size.

Soft-touch operation. Time flow ~7 sec.

Vacuum breaker.

Integrated stopcock and flow/volume rate adjuster.

Solid brass body and chrome-plated push-button.

In-line inlet M3/4".

Connection washer Ø 32/55mm.

For walls ≤ 200mm, without tube.



Connector 3/4"
Length 200mm



Артикул: DE-761200 ,   Время доставки: 7-21 день ,   Viimistlus:
360,00 €
WC рама с бачком и сливной системой , антивандальная с пластиной из Н/Р стали


BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Артикул: AZP-BSAZ 5 ,   Время доставки: 3-4 недели ,   Viimistlus:
1072,30 €
Схожие продукты

Антивандальный унитаз INVA Н/Р сталь

AUZ 08 INV is a stainless-steel WC in matt design for the disabled. It is a stainless-steel toilet to stand on the floor at the wall. The drain is directed backwards (the bottom drain version AUZ 02 INV). The closet is based on the standard AUZ 08, which is heightened and lengthened to fulfil the directive regarding products for disabled persons. To increase the user comfort, the seating part is provided with a seat from hardened plastic. The closet includes a removable backrest recommended by the League for the rights of the wheelchair bound.



The standing WC is suitable for places where the common closet cannot be attached to the side wall, because of a thin bearing particle, for example.



It is suitable to supplement the closet with an automatic pressure-water flushing device with delayed flushing AUZ 3 INV (suitable for the disabled) or any flushing device with a cistern.

Basic technical information
Water inlet: d= 34 - 50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 27 kg

Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material
  • Stainless-steel backrest
Артикул: AZP-AUZ-08-INV ,   Время доставки: 3-4 недели ,   Viimistlus:
2672,10 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели ,   Viimistlus:
106,72 €
Антивандальный унитаз Н/Р сталь



AUZ 08

stainless-steel standing closet, with hardened seat, back drain






AUZ 08 is a stainless-steel WC in matt design. To increase the user comfort, it is provided with a grey seat with a lid made of hardened plastic (newly also with a seat in black design AUZ 08.CS). AUZ 08 is designed to stand on the floor at the wall; it is suitable for places where the common closet cannot be attached to the wall, because of a thin bearing particle, for example. The standard version of AUZ 08 has a back drain (the version with the bottom drain AUZ 02). It is suitable to supplement the WC with the automatic pressure water flushing device AUZ 3, automatic flushing device with the piezo button AUZ 3.P (or the vandal-resistant flushing device BSAZ 01) or any flushing device with a cistern.



Thanks to its resistance to damage, the closet is primarily intended for social facilities with demanding operation, such as highway lay-byes, alehouses, etc., where easy maintenance of sanitary conditions is required. WC is also manufactured in the design for the disabled under the designation AUZ 08 INV



Further closet versions can be found in the section Stainless-steel closets or Stainless-steel safety closets.




Basic technical information
Water inlet: d= 34-50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 23 kg


Requirements for setting up the construction
  1. Set-up outlet d = 110 mm including rubber sleeve for pipe d = 90 mm.
  2. Set-up water inlet d= 34-50 mm according to chosen sealing.


Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material


Made to order
  • AUZ 3 - automatic pressure flushing system
  • AUZ 3.P - automatic pressure flushing system with piezo control
  • BSAZ 01 - vandal resistant pressure flushing system

Артикул: AZP-AUZ 08 ,   Время доставки: 3-4 недели ,   Viimistlus:
2492,20 €

Valamu R/V terasest

Garaazi/koristusruumi jaoks

Артикул: I-GUB3 ,   Время доставки: 14-21 день ,   Viimistlus:
360,00 €

Питьевой фонтан free-standing механический Н/Р сталь  AISI316

AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)

AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl

Package contents

  • stainless steel column and cone with nozzle
  • press valve
  • anchoring construction
  • flexible hose siphon
  • connecting hoses
  • anchoring material
  • Set-up water inlet - pipe G 1/2“
  • Set-up drainage d = 40 mm
  • Prepared alcove for embedding (concreting) in the base construction
Water inlet G 1/2"
Water pressure 2 – 6 Bar, recommended 3 Bar
Outlet d = 40 mm
Inner dimensions of sink d = 290 mm
Weight 20 kg

Артикул: AZP-AFO02.CL ,   Время доставки: 3-4 недели ,   Viimistlus:
1934,20 €
