Delabie valamu CANAL 2400mm, R/V teras (4 kohta) 120300 Zoom

Delabie Раковина CANAL 2400mm, Н/Р сталь (4 места) 120300

Артикул: DE-120300
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена: 1363,00 €
1226,70 €
Kuumakse alates: 104,27 €
Кол-во: - +

 Delabie Раковина CANAL 2400mm, Н/Р сталь (4 места) 120300

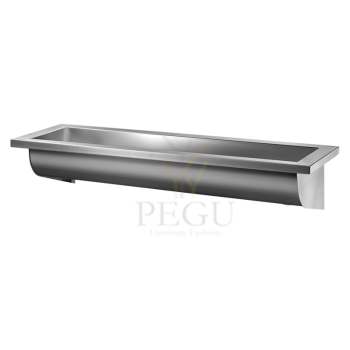

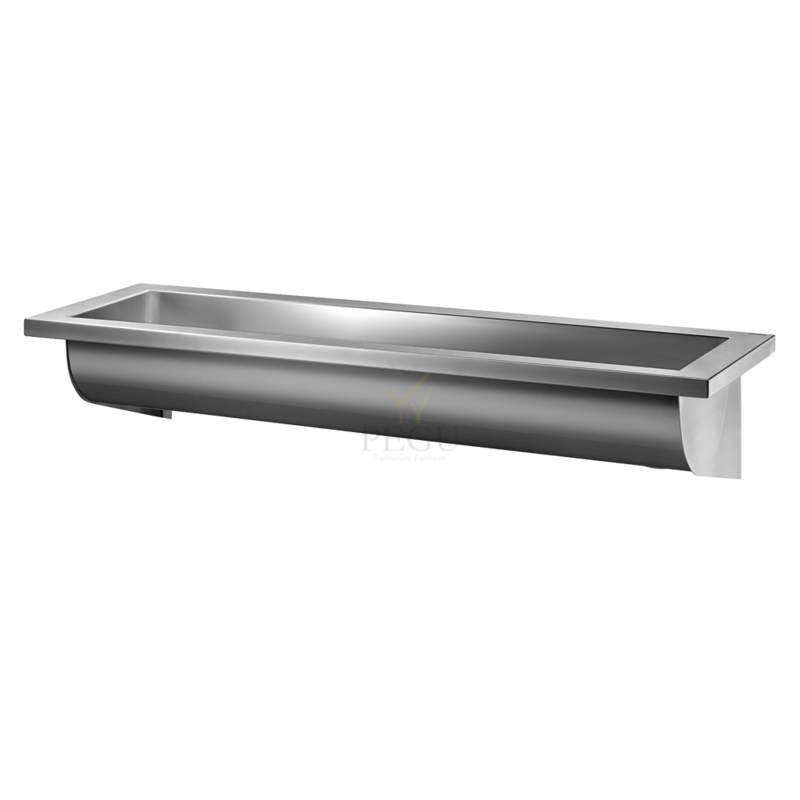

CANAL wall-mounted wash trough
Ref. 120300

Wall-mounted wash trough for 4 posts - 2,400mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surroundand fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 20kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800007).



Height 250mm
Length 2400mm
Width 400mm
Thickness 1mm (basin) et 1.5mm (edge and fixing brackets)
Finish 304 polished satin stainless steel

Файлы

Совместимые продукты

Настенная панель,  для раковины CANAL 2400mm, Н/Р сталь Delabie 100300

Splashback 2400mm for CANAL wash trough
Ref. 100300

Splashback for CANAL wash trough.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Length: 2,400mm.



TECHNICAL FEATURES

Splashback 2400mm for CANAL wash trough
Ref. 100300

Height 300mm
Length 2400mm
Width 1.5mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Артикул: DE-100300 ,   Время доставки: 14-21 день ,   Viimistlus:
468,90 € (10%)
521,00 €
Схожие продукты
WC рама с бачком и сливной системой , антивандальная с пластиной из Н/Р стали


BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Артикул: AZP-BSAZ 5 ,   Время доставки: 3-4 недели ,   Viimistlus:
1072,30 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели ,   Viimistlus:
106,72 €

Антивандальное зеркало Н/Р сталь 385x485 AISI304 Delabie 3452

Stainless steel rectangular mirror, H. 500mm
Ref. 3452

Depth 10mm
Length Unbreakable mirror
Width 385mm
Drop height 485mm
Finish "Mirror" polished 304 stainless steel
Артикул: DE-3452 ,   Время доставки: 7-21 день ,   Viimistlus:
269,10 € (10%)
299,00 €

Смывной механизм для писсуара с сенсорным управлением  с монтажной коробкой, 24 V DC

SLP 02K



Urinal infra-red flushing unit with a mounting box, 24 V DC



Characteristics

  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
Order number 01022
Code SLP 02K


Supply specification

SLP 02K - Supply No. 01022 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension:140 x 140 x 75 mm
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Артикул: SA-SLP02K ,   Время доставки: 14-21 день ,   Viimistlus:
360,82 €

Питьевой фонтан настенный сенсорный Н/Р сталь AISI304 6V(4x1.5V)

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Артикул: AZP-AFO01.YB ,   Время доставки: 3-4 недели ,   Viimistlus:
942,20 €
