Ühe ventiiliga toruliitmik suruõhu jaoks ,Turret,1-Hole,Quick Coup.,M30,Hose,CA Broen Lab 25320561021-52B Zoom

Вентиль для воздуха под давлением ,Turret,1-Hole,Quick Coup.,M30,Hose,CA

Артикул: BR-25320561021-52B
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
341,00 €
Kuumakse alates: 28,99 €
Кол-во: - +

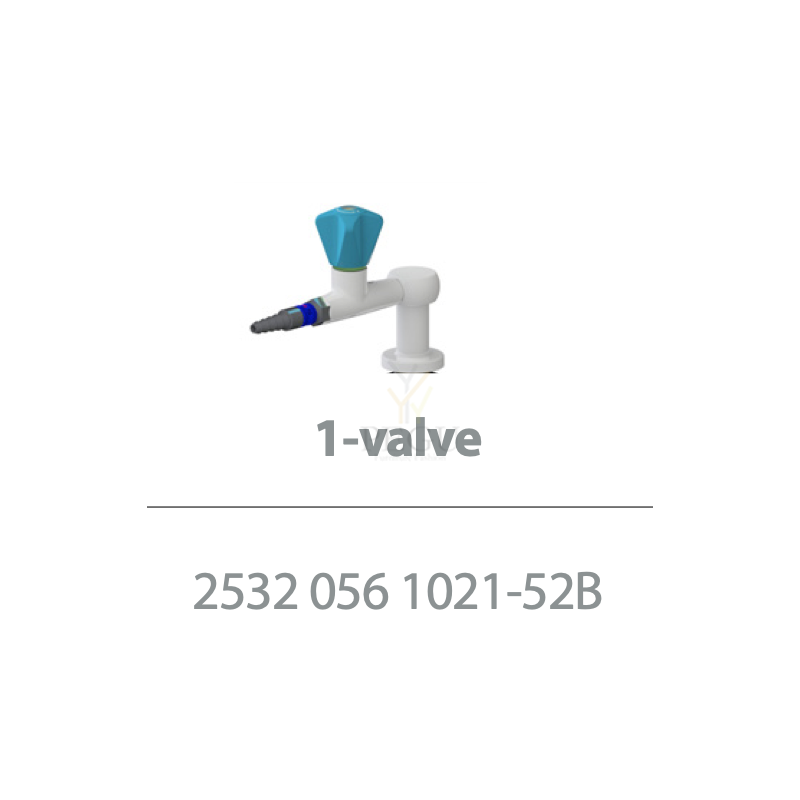

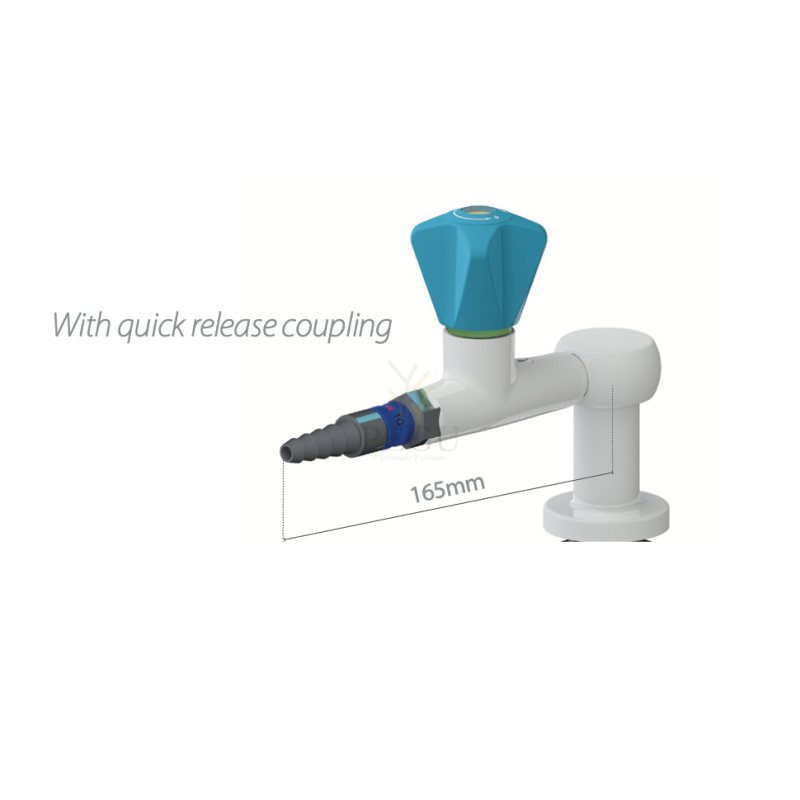

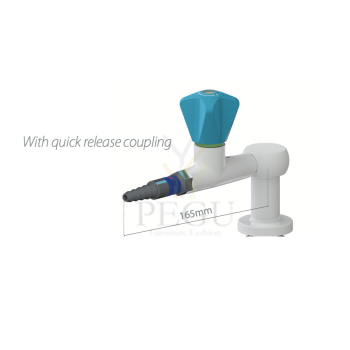

Single valve turret fitting for compressed air with quick release coupling

1-Valve,Turret,1-Hole,Quick Coup.,M30,Hose,CA

2532 056 1021-52B

compressed air, nitrogen, carbon dioxide, argon, helium, low vacuum (1000 to 1 mbar)

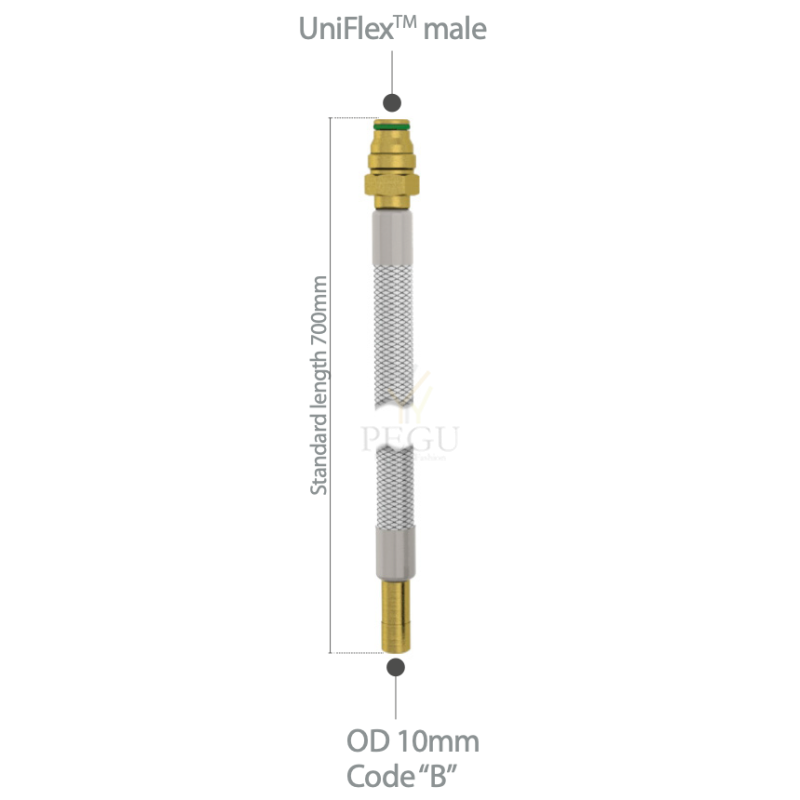

Fittings are delivered with a 700mm SPX hose with OD10mm inlet conneciton.

MATERIALS WITH MEDIA CONTACT

Metals: Brass
Plastics: PVDF, SPX (hose)
Sealing: FKM
Lubricant: Perfluoropolyether based

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Other options:
- different media
- removable hose nozzle with union nut
- disability-friendly handle (single valve only)
- micro flow headwork (for 2.0 non-burning gases) - high flow headwork (for 2.0 non-burning gases)
- alternative hose inlet connection / without a hose - other inlet options (type, length)

Схожие продукты
BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Артикул: B-25330431003 ,   Время доставки: 14-21 день ,   Viimistlus:
608,82 €
BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Артикул: B-25330431036 ,   Время доставки: 14-21 день ,   Viimistlus:
604,75 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Артикул: B-25350421035-52C ,   Время доставки: 2-4 недели ,   Viimistlus:
801,93 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Артикул: B-25350431035-52C ,   Время доставки: 2-4 недели ,   Viimistlus:
808,03 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Артикул: B-25350451035-52C ,   Время доставки: 2-4 недели ,   Viimistlus:
823,28 €
