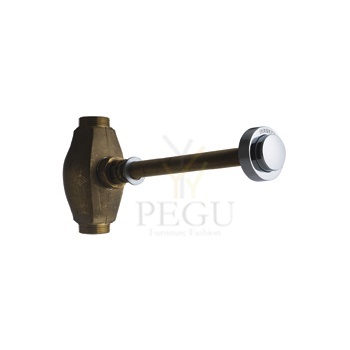

WC антивандальный комплект 1-200mm толщина стены

Бренд:
Единица: шт
Время доставки: 6-7 недель
Цена:
440,10 €
Kuumakse alates: 37,41 €
Кол-во: - +
   - или -

> Working pressure : 1 to 5 bar

> Volume of water delivered : Adjustable from 6 to 9 litres with stop valve Anti-water-hammering design

> Flow time : From 7 to 9 seconds

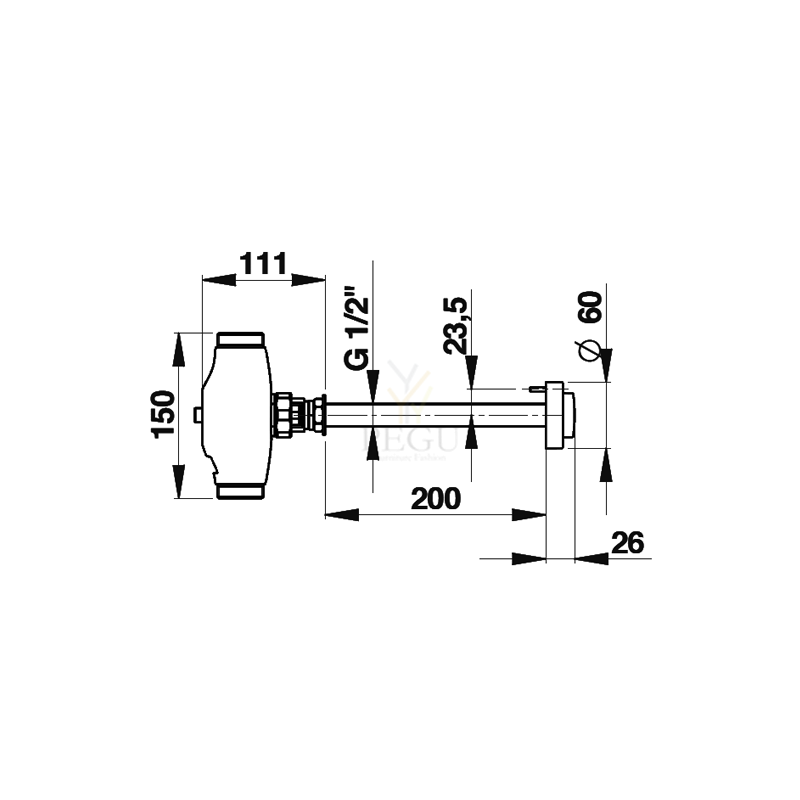

> Hydraulic supply : MM G 1"1/4 In line Outlet connection on flush pipe Ø 32 mm

> Material and colour finish : Body and cross-partition control in Brass Push Button in Brass, chrome finish

> Security : Anti-siphonic device

> Delivered with : 1 Ball valve integrated 1 cross partition control 15 to 200m 1 fitting out, 1 bent tube and 1 junction nozzle

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
