Душевая панель Delabie SECURITHERM самовыключающаяся с термостатом 30 sek ALU

Артикул: DE-792300
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
837,00 €
Kuumakse alates: 71,15 €
Кол-во: - +
   - или -

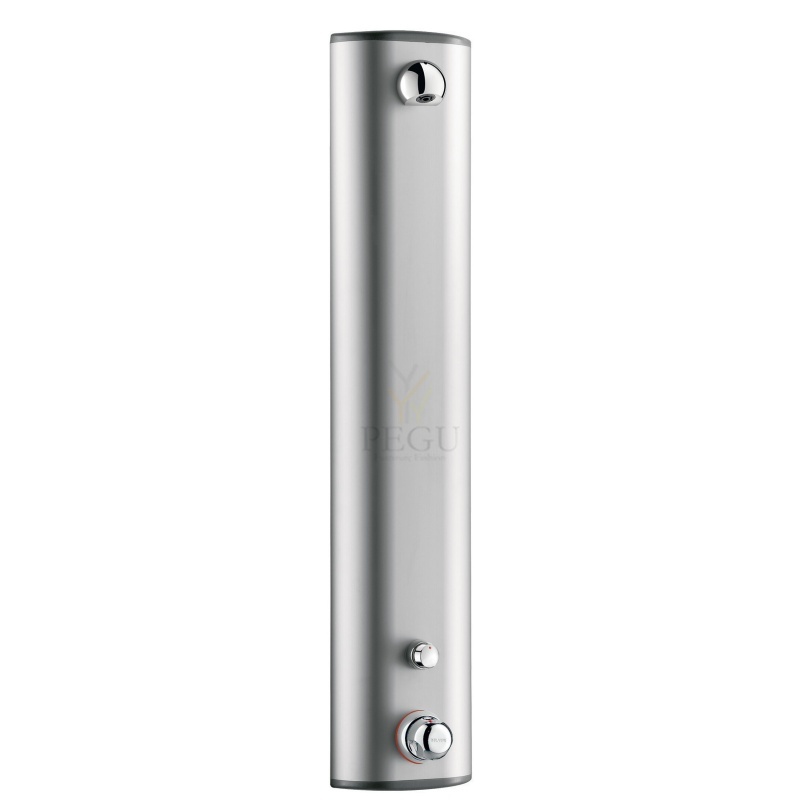

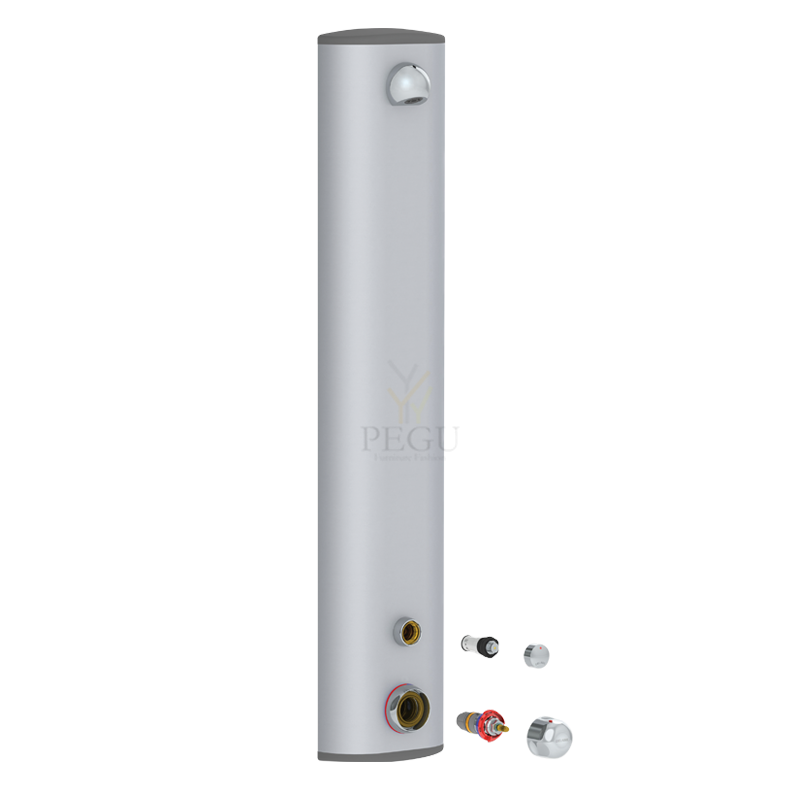

SECURITHERM shower panel
Ref. 792300

Thermostatic time flow shower panel :

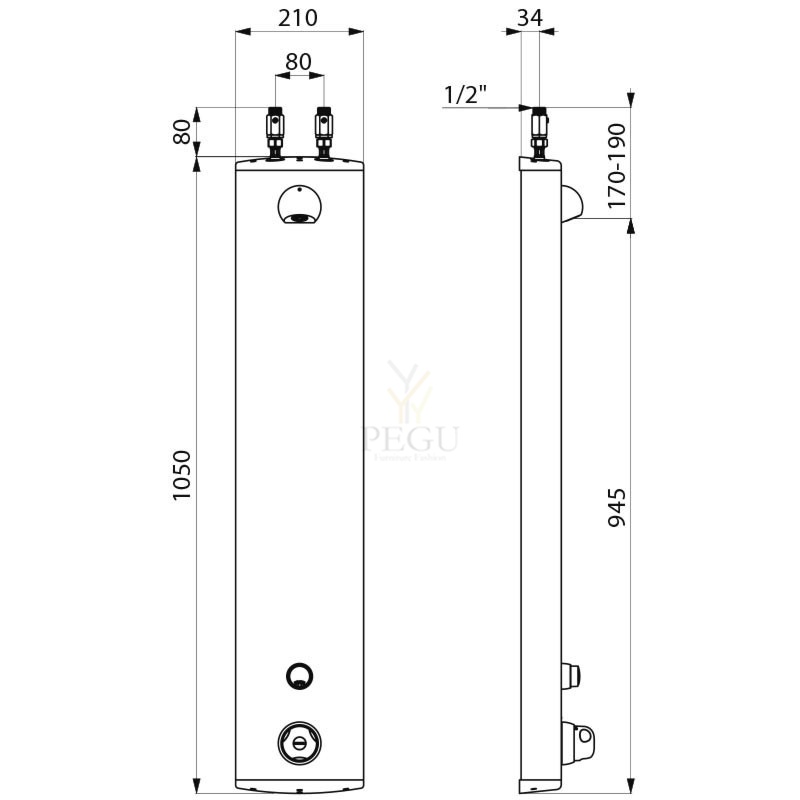

Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.

Файлы

Похожий товар

SECURITHERM shower panel
Ref. 792410

Electronic thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles, M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cmfrom the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792410 ,   Время доставки: 14-21 день
1076,00 €

SECURITHERM shower panel
Ref. 792404

Electronic thermostatic shower panel:
Large model stainless steel panel for surface mounting.
Top inlet via in-line stopcocks, M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
With integrated soap dish.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792404 ,   Время доставки: 14-21 день
1456,00 €

SECURITHERM shower panel
Ref. 792403

SECURITHERM electronic thermostatic shower panel :
Large model stainless steel panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks, M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Shower starts when hand is 4cm from the infrared sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792403 ,   Время доставки: 14-21 день
1408,00 €

SECURITHERM shower panel
Ref. 792414

SECURITHERM electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Shower starts when hand is 4cm from the infrared sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
With integrated soap dish.
Concealed fixings.
Filters and non-return valves.
M1/2" stopcocks.

Артикул: DE-792414 ,   Время доставки: 14-21 день
1456,00 €

SECURITHERM shower panel
Ref. 792413

SECURITHERM electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Shower starts when hand is 4cm from the infrared sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
M1/2" stopcocks.

Артикул: DE-792413 ,   Время доставки: 14-21 день
1456,00 €

SECURITHERM shower panel
Ref. 792504

Electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792504 ,   Время доставки: 14-21 день
1243,00 €

SECURITHERM shower panel
Ref. 792514

Electronic thermostatic shower panel:
Large stainless steel panel for wall-mounted, exposed installation.
Concealed inlet via flexibles M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Mains supply 230/6V.
Shower starts when electronic push-button is pressed.
Shuts off voluntarily or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Integrated soap dish.
Filters and non-return valves.
Stopcocks M1/2".
Concealed fixings.

Артикул: DE-792514 ,   Время доставки: 14-21 день
1243,00 €

SECURITHERM shower panel
Ref. 792305

Thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mouted, exposed installation.
With top inlet via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
With soap dish.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792305 ,   Время доставки: 14-21 день
850,00 €

SECURITHERM shower panel
Ref. 792310

Thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mouted, exposed installation.
Concealed inlet via flexibles M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792310 ,   Время доставки: 14-21 день
713,70 € (10%)
793,00 €

SECURITHERM shower panel
Ref. 792330

SECURITHERM dual control thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles, M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Time flow valve ~30 seconds with soft-touch operation.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792330 ,   Время доставки: 14-21 день
1080,00 € (10%)
1200,00 €

SECURITHERM shower panel
Ref. 792320

SECURITHERM dual control thermostatic time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet via in-line stopcocks, M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Time flow valve ~30 seconds with soft-touch operation.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via push-fit rapid STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792320 ,   Время доставки: 14-21 день
1080,00 € (10%)
1200,00 €

SECURITHERM shower panel
Ref. 792340

Dual control thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlets via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C; with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Time flow valve ~30 seconds with soft-touch operation to control the ROUND shower head.
Non-time flow 1/4-turn valve controls the hand set.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via rapid push-fit STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792340 ,   Время доставки: 14-21 день
1017,00 € (10%)
1130,00 €

SECURITHERM shower panel
Ref. 792350

Dual control thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Concealed inlets via flexibles, M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C; with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Time flow valve ~30 seconds with soft-touch operation controls the ROUND shower head.
Non-time flow 1/4-turn valve controls the hand set.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via rapid push-fit STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792350 ,   Время доставки: 14-21 день
1017,00 € (10%)
1130,00 €

SECURITHERM shower panel
Ref. 792344

Dual control thermostatic shower panel with handset:

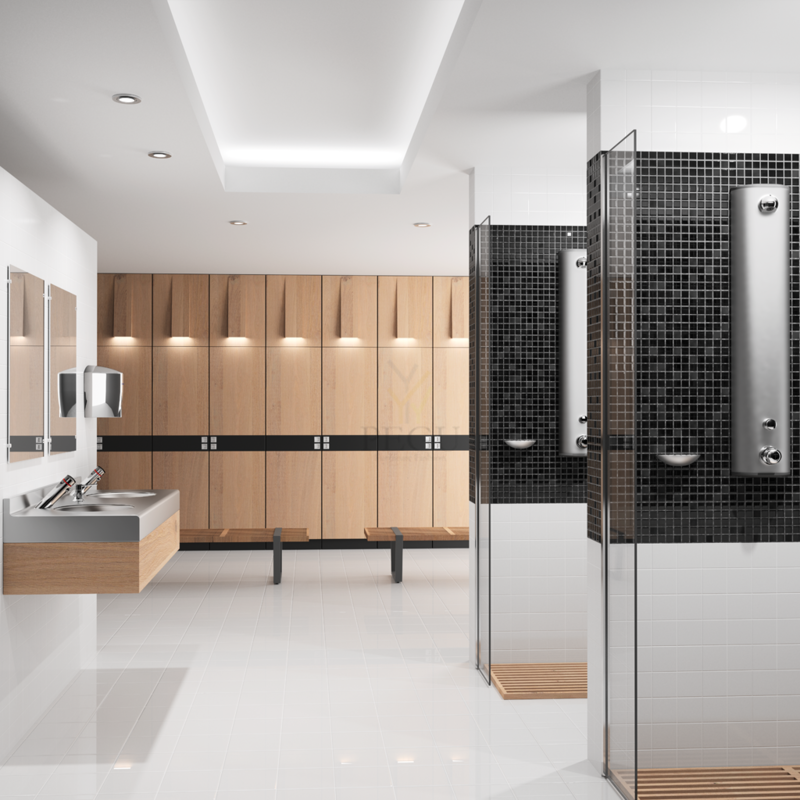

Large model stainless steel shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hold water supply fails.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via rapid push-fit STOP connector, wall support supplied.
Non-time flow valves control the ROUND shower head and the handset.
Thermal shocks are possible.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792344 ,   Время доставки: 14-21 день
1198,00 €

SECURITHERM shower panel
Ref. 792400

Thermostatic electronic shower panel:

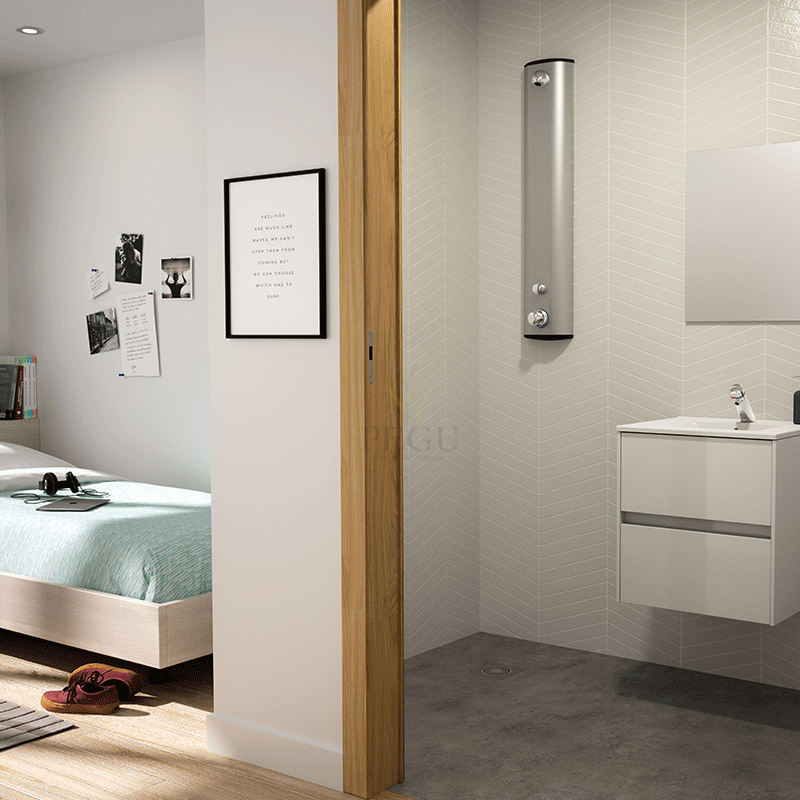

Anodised aluminium shower panel for wall-mounted, exposed installation.
With top inlet, via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cm from the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60sec. every 24hr after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.

Артикул: DE-792400 ,   Время доставки: 14-21 день
1077,00 €
Совместимые продукты

Удлиннитель для душевой панели 790152 Delabie Cut-to-size extension для защиты труб

Dushipaneeli pikendus 790152 Delabie Cut-to-size extension toru kaitse

Cut-to-size extension

Ref. 790152
For aluminium shower panel

For aluminium shower panel.
Protects the pipework between the top of the shower panel and the ceiling.
W. 210mm, H. 1,000mm
Extension can be cut-to-size.
Anodised aluminium.



TECHNICAL CHARACTERISTICS

Cut-to-size extension

Ref. 790152

Height 1000mm
Width 210mm
Finish Aluminium
Артикул: DE-790152 ,   Время доставки: 14-21 день
241,00 €
Схожие продукты

1/2" väliskeere

Артикул: P29300 ,   Время доставки: 7-14 дней
168,00 €

Душевая панель со смесителем PRESTOTEM2 ALPA, самозапорный - 30 sek рабочий цикл

> Working pressure : 1 to 5 bar

> Flow : 6 l/min with integrated flow limiter. Anti-water-hammering design Rotating shower head with anti-limescale spikes
> Flow time : 30 seconds (± 5 sec.)
> Hydraulic supply : G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA NF IB mixer tap with NF check valves
> Material : Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS covers
> Functioning: Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks > Security : Adjustable tamper-proof temperature limiter to prevent scalding
> Delivered with : 1/2" hoses with revolving nuts MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Артикул: P88808 ,   Время доставки: 14-21 день
912,00 €

> Working pressure :

1 to 5 bar

> Flow :

6 l/min with integrated flow limiter Anti-water-hammering design
Hand-held shower on rail with chrome plated slide

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Артикул: P88814 ,   Время доставки: 14-21 день
1104,00 €

> Working pressure :

1 to 5 bar

> Flow :

6 l/min with integrated flow limiter Anti-water-hammering device
Fixed shower head with anti-limescale spikes

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS casings

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

"Legionella" version: pre-equipped for PRESTO solutions
Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screws and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540

Артикул: P88804 ,   Время доставки: 14-21 день
1188,00 €

> Working pressure :

1 to 5 bar

> Flow :

3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design

> Hydraulic supply :

G 3/8" (12x17) - Cold or premixed water

> Power supply :

Integrated 6V CRP2 lithium battery

> Material and colour finish :

Injected molded metal body and cover Chrome finishing

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Anti-overflow security time: 30 seconds
Anti-blocking system preventing the water to flow continuously

> Delivered with :

1 Brass clamping nut
1 Gasket and 1 Washer
1 Hose with revolving nut
1 Stop valve MM G 3/8" (12x17) 1 Filter gasket
1 Self-adhesive sticker Instruction manual

> Standards & approvals :

Brass body in accordance with NF EN1982, EN12164, NF EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227

Артикул: P55379 ,   Время доставки: 14-21 день
528,00 €
