Ref: 70806 - Wall-mounted mixer tap with 2 holes – downward spout
> THE PRODUCT BENEFITS
Resistant to intensive use Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: diameter 22 mm Intuitive and ergonomic knobs: easy grip Hygiene: spout with smooth interior Wall version: facilitates cleaning and promotes optimal hygiene Product design Ease of cleaning High spout to let large containers pass Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
360 ° swivel spout, projection 300 mm, height under "body" 182 mm, diameter 22 mm. Spout thickness: 1.5 mm. 1/4 turn ceramic head with flow rate 81L / min at 3 bar Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
81L / min at 3 bar
> Hydraulic supply:
Eccentric fittings M 1/2 '' M 3/4 '' supplied with rosettes
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :

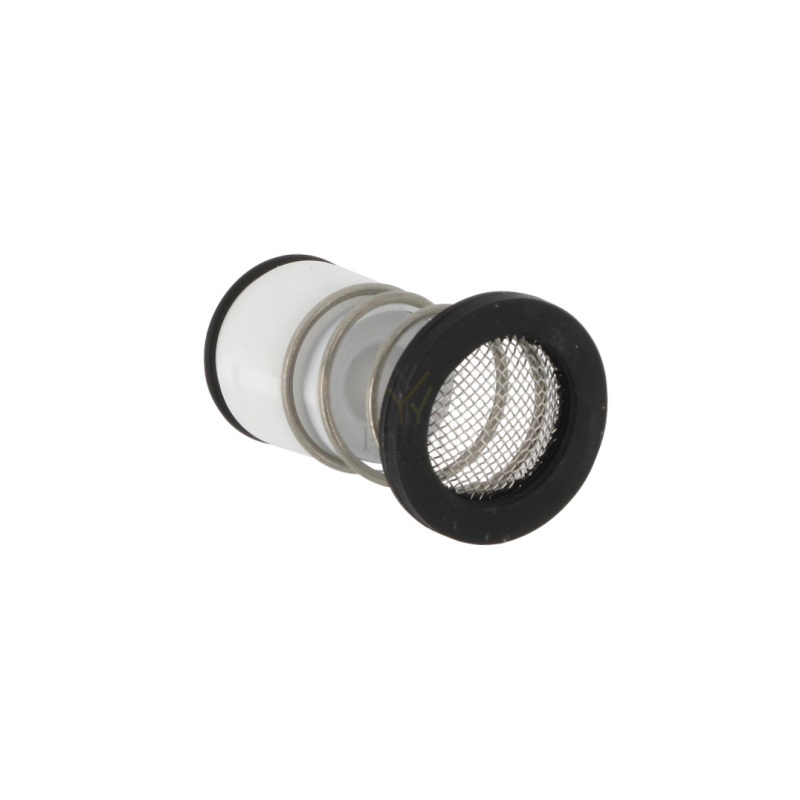

NF check valves 2 filters
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540 Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
• Manual centre feed paper towel dispenser, surface mounted, designed and manufactured by Mediclinics.
• Robust and vandal-resistant, these dispensers are designed to be installed in any type of public washroom with high traffic of people. Models for a more efficient use of the paper and suitable for different washroom environments: gymnasiums, sports centers, hospitals and health centers, restaurants and similar type of installations; solutions even for use in different places.
• All these models have a front sliding door, especially designed for an easy paper replacement. They have been designed to facilitate and optimize the rational use of the paper, such as for example the toothed paper outlet that facilitates the paper cutting.
• All Mediclinics paper tower dispensers are supplied with a lock and special key for opening and screws.
COMBINATION PAPER TOWEL DISPENSER AND WASTE BIN WP 5115
298 x 1198 x 220 mm ca. 500 paper towels / 32l
Combination consisting of a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Further available surfaces: see below.
Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
Designed for approx. 500 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
Inspection slot to indicate fill level.
Accessible for refilling through lockable front flap with fall protection.
Waste bin equipped with removable mesh basket. Capacity approx. 32 l. Accessible through front flap.
Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
Wear parts can be replaced as modules.
Mounting: With six screws through key holes and one optional anti-theft hole in the back wall.
Delivery includes fixing material and one pack of paper towels.
Weight (in kg): 14,4
AVAILABLE SURFACES
ORDER NUMBERS
satin finished (standard)
722994
highly polished
731994
(coloured) plastic powder - coating
728994
Suggested text for specifications:
Combination consisting of a paper towel dispenser and Combination consisting of a paper towel dispenser and a waste bin in stainless steel (AISI 304) for surface mounting. All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Paper towel dispenser with deep-drawn paper removal opening, filling quantity approx. 500 paper towels. Inspection slot to indicate fill level. Accessible for refilling through lockable front flap with fall protection. Waste bin equipped with removable mesh basket. Capacity approx. 32 l. Accessible through front flap. Keyed alike cylinder lock in corrosion-resistant zinc die-casting. Delivery includes fixing material and one pack of paper towels.
