Min. working pressure: 1.5 bar for all Eye Showers

Tootekood: B-27100091005011 ,   Tarneaeg: 14-21 päeva
399,00 € (5%)
420,00 €

Min. working pressure: 1.5 bar for all Eye Showers

Tootekood: B-H7230011000321 ,   Tarneaeg: 7-8 nädalad
3786,00 €

Min. working pressure: 1.5 bar for all Eye Showers

Tootekood: B-H7330011000211 ,   Tarneaeg: 7-8 nädalad
4710,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350391035-52B(15304459) ,   Tarneaeg: 2-3 nädalad
499,20 €
BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Tootekood: B-25330431036 ,   Tarneaeg: 14-21 päeva
486,00 €

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330011036 ,   Tarneaeg: 14-21 päeva
300,00 €

Broen Lab Kraan deioniseeritud vesi S200mm, seinast PVDF

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: BR-25330351036-09 ,   Tarneaeg: 14-21 päeva
504,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350421035-52C ,   Tarneaeg: 2-4 nädalad
609,90 € (5%)
642,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350431035-52C ,   Tarneaeg: 2-4 nädalad
648,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350441035-52C ,   Tarneaeg: 2-4 nädalad
654,00 €
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Tootekood: B-25350451035-52C ,   Tarneaeg: 2-4 nädalad
690,00 €

Sees 492x282 (vajab põhjaklappi 97B0073)

SPECIFICATIONS
Temperature range: 0-80°C
Standard colour: black
Net weight: 2.2 kg
Dimensions: external 552 x 400 x 237mm (tolerance ± 1mm)
The rectangular sink with its self draining base are injection moulded from polypropylene copolymer resin. Designed for mounting on top or underside of work benches.
Tootekood: B-97B0552 ,   Tarneaeg: 2-3 nädalad
117,00 € (10%)
130,00 €

PRODUCT NUMBER 97B0810

FOR WASTE CONNECTION

S P E C I F I C AT I O N S

Temperature range: 0-80°C
Standard colour: black (other colours available on request ) Net weight: 5.4 kg
Dimensions: external 807 x 469 x 330mm (tolerance ± 1mm)

The largest polypropylene sink offered, it is suitable for cleansing of larger items. Very widely used in island benches and teacher benches.

Tootekood: B-97B0810 ,   Tarneaeg: 2-3 nädalad
432,00 €

PRINCIPLE SKETCH STABILET® EL / STABILINE® EL

1. Outlet including infrared sensor. Reacts when an object is in front of the spout.

2. Electronic box including transformer from mains to 12V DC.

3. STABILET® EL or STABILINE® EL valve. SPECIFICATIONS, ELECTRONIC BOX Mains voltage: 220V, 50 Hz phase, neutral and earth. Other voltage on request Operating voltage: 12V DC. Short circuit safety transformer Power consumption: Idling: 3 W. / Working: 3.5 W Built-in control of max. flow time of 45 sec Adjustable operating distance, min. 5 cm, max. 50 cm Waterproof plastic box and cable entries, IP 65 Cable length: From electronic box to STABILET EL®/ STABILINE EL®: 100 cm From electronic box to sensor: (spout)100 cm Screws and plugs included

Tootekood: B-26200009 ,   Tarneaeg: 14-21 päeva
1290,00 €

PP labori valamu 418x216x320 (PxLxK) (vajab põhjaklappi 97B0073)



S P E C I F I C AT I O N S

Temperature range: 0-80°C
Standard colour: black (other colours available on request) Net weight: 1.4 kg
Dimensions: bxternal 418 x 316 x 220mm (tolerance ± 1mm)

Injection moulded from polypropylene copolymer resin, with
a self-draining base. Designed for mounting on top or underside of the work benches.

Tootekood: B-97B0420 ,   Tarneaeg: 7-14 päeva
125,00 €

Wall-mounted safety shower
Ref. 9108

Wall-mounted safety shower with manual control includes:
Frost-free system as standard.
Circular shower head Ø 250mm in green, shock-resistant ABS.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass.
Supplied with identification sign for first aid equipment: "Safety Shower".
For cross wall installation, with recessed supply, or for mounting on a false ceiling (we recommend a 1" mounting bracket).

TECHNICAL FEATURES

Wall-mounted safety shower
Ref. 9108

Supply F1"
Height 450mm
Length 625mm
Flow rate 120 lpm at 3 bar dynamic pressure
Finish Epoxy
Tootekood: DE-9108 ,   Tarneaeg: 14-21 päeva
275,00 €

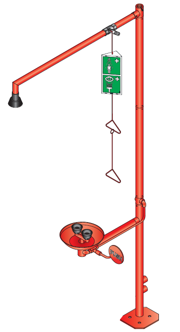

Eye wash and safety shower combination
Ref. 9203

Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".

Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).

TECHNICAL FEATURES

Eye wash and safety shower combination
Ref. 9203

Supply F1"
Height 2207mm
Length 660mm
Drop height 2115mm
Flow rate 120 lpm at 3 bar dynamic pressure
Tootekood: DE-9203 ,   Tarneaeg: 14-21 päeva
1350,00 €

Wall-mounted eye wash station
Ref. 9102

Wall-mounted eye wash station with manual control includes:
304 stainless steel basin Ø 250mm, green powder-coated finish.
Two spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flow is activated by the hand control. The eye wash will continue to operate when the hand control is released. The water flow will stop when the hand control is pulled towards the user.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply M1/2".
Pipework made from galvanised steel, grey powder-coated finish.
Hand control made from galvanised steel, green powder-coated finish.
Wall-mounted on a brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash"





TECHNICAL FEATURES

Wall-mounted eye wash station
Ref. 9102

Supply M1/2"
Height 195mm
Flow rate 20 lpm
Width to the wall 204mm
Finish Epoxy
Tootekood: DE-9102 ,   Tarneaeg: 14-21 päeva
525,00 €

Free-standing eye wash station
Ref. 9201

Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".

TECHNICAL FEATURES

Free-standing eye wash station
Ref. 9201

Height 1050mm
Depth 500mm
Flow rate 20 lpm
Finish Epoxy
Tootekood: DE-9201 ,   Tarneaeg: 14-21 päeva
850,00 €

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P

Wall-mounted SECURITHERM thermostatic sink mixer.
Sequential: opens and closes with cold water.
Supplied with 2 removable BIOCLIP stainless steel spouts L. 136mm.
Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Scale-resistant sequential thermostatic cartridge.
Temperature control: cold water up to 40°C. Temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres, supplied with in-line STOP/CHECK connectors ideal for hospitals.
Chrome-plated brass body.


TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P
Connector M1/2"
Technology SECURITHERM BIOCLIP sequential, Securitouch
Height 141mm
Width 184mm
Spout length 136mm
Flow rate 7 lpm
Temperature limiter 40°C
Finish Chrome-plated brass
Tootekood: DE-H9611P ,   Tarneaeg: 14-21 päeva
608,95 € (5%)
641,00 €
Ögondusch för vägg utan skål

Ögon/ansiktsdusch med väggfäste för synligt rörmontage.
Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon-& ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck.

•Min. arbetstryck: 1,5 bar
•Väggmontage
•POLYCOAT står emot de flesta kemikalier
•FLOWFIX: 26 l/min
•2-sidig efterlysande skylt, dekal & testkort
•Vikt: ca. 4,5 kg
•Anslutning: inv. DN15 (utanpåliggande)

Artikel nummer: 17 550 009



Tootekood: B-17550009 ,   Tarneaeg: 3-4 nädalad
582,00 €

Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" waste with plug and overflow.

Tootekood: I-L1 ,   Tarneaeg: 14 -21 päeva
288,00 €

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330021036 ,   Tarneaeg: 14-21 päeva
306,00 €
BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Tootekood: B-25330431003 ,   Tarneaeg: 14-21 päeva
486,00 €

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330011003 ,   Tarneaeg: 14-21 päeva
300,00 €

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330021003 ,   Tarneaeg: 14-21 päeva
306,00 €
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Tootekood: B-25340011001-52B ,   Tarneaeg: 3-7 päeva
193,80 € (5%)
204,00 €
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Tootekood: B-25340021001-52B ,   Tarneaeg: 3-7 päeva
199,50 € (5%)
210,00 €
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- fixed spout
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
- WPH (Water Potable Hot)
- WNH (Water Non-Potable Hot)
Tootekood: B-25340161001-52B ,   Tarneaeg: 3-7 päeva
216,00 €
S P E C I F I CATIONS
The fitting is delivered with an integrated BALLOFIX® ball valve.
Handle: Metal, BROEN POLYCOAT powder coated
with media indication according to EN13792
Spout: Full swivel action
Hose nozzle: Removable metal
Headwork: Ceramic
Opening/closing function: 180° (wrist action lever: 90°)
Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 3 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
Solder: DIN L-Ag55:Sn
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- aerator
- fixed hose nozzle
- integrated non-return valve
- alternative hose inlet connection / without a hose
- other inlet options (type, length)
- national approvals
Tootekood: B-25360011039-52B ,   Tarneaeg: 3-4 päeva
264,60 € (10%)
294,00 €
