Valamu kapi peale EUMAR Anne 80c 800x34x490mm GelCeramic segisti avaga
Eumar valamu Anne on valmistatud GelCeramic-smooth-finish läikivast geelkattega pinnast, esile tulevate mööblipinna peal olevate üksikute pesumasinatega. Koos segistiauguga, ülevooluga. Mõõdud: 800x34x490 mm. Kaal: 15 kg.
Seina segisti korral tellige palun valik 'ilma segistiauguta' (kood XXXX). Kõik meie tooted on läbinud põhjalikud testid, et saavutada maksimaalne mugavus ja vastupidavus.
Nähtamatu ja hügieeniline, mittepoorne ja antibakteriaalne, praktiline ja kerge hooldada, esteetiline ja vastupidav, parandatav ja taastuv, termošokile vastupidav, vastavad CE-standardi nõuetele (EN 14688).
Anne, изготовленная из гладкой глянцевой поверхности GelCeramic, выдвигается вперед мебельных умывальников. С одним отверстием под смеситель, с переливом. Размер: 800x34x490 мм. Вес: 15 кг.
В случае установки смесителя на стене, пожалуйста, заказывайте опцию 'без отверстия под смеситель' (код XXXX). Безшовная и гигиеничная, не впитывает влагу и антимикробная, практичная и легкая в уходе, эстетичная и прочная, поддается ремонту и восстановлению, устойчива к термическому шоку, соответствует требованиям стандарта CE (EN 14688). Все продукты тщательно тестируются для достижения максимального комфорта и прочности.
Eumar valamu Anne on valmistatud GelCeramic-smooth-finish läikivast geelkattega pinnast, esile tulevate mööblipinna peal olevate üksikute pesumasinatega. Koos segistiauguga, ülevooluga. Mõõdud: 800x34x490 mm. Kaal: 15 kg. Seina segisti korral tellige palun valik 'ilma segistiauguta' (kood XXXX). Kõik meie tooted on läbinud põhjalikud testid, et saavutada maksimaalne mugavus ja vastupidavus.
Nähtamatu ja hügieeniline, mittepoorne ja antibakteriaalne, praktiline ja kerge hooldada, esteetiline ja vastupidav, parandatav ja taastuv, termošokile vastupidav, vastavad CE-standardi nõuetele (EN 14688).
Anne made of GelCeramic smooth-finished glossy gel coat covered surface, come forward Furniture-top single-Washbasins. With tap hole, with overflow. Size: 800x34x490mm. Weight: 15kg.
In case of wall faucet please order ‘no tap hole’ option (code XXXX) Seamless and hygienic, nonporous and anti-bacterial, practical and easy to maintain, aesthetic and durable, repairable and renewable, thermo shock resistant, that meet the requirements of the CE standard (EN 14688). All products are thoroughly tested to achieve maximum comfort and durability.

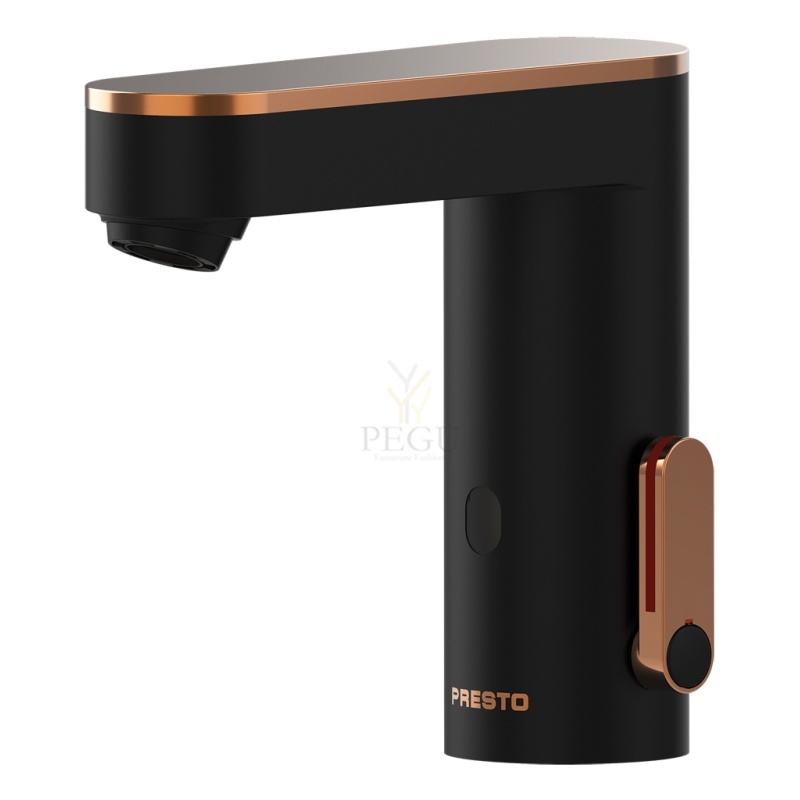

Ref: 56198 - Deck-mounted mixer sensor tap - Mains-operated - Black and pink gold cover
132
Powered by TCPDF (www.tcpdf.org)
> Working pressure :
1 to 5 bar
> Flow :
3 l/min with integrated flow regulator High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply :
G 3/8" (12x17)
> Power supply :
230 VAC/7 VDC transformer in IP65 waterproof case
> Material and colour finish :
Chrome-plated metal alloy components Injected molded metal body and cover Black finish with pink gold cover
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Temperature limited by adjustable stop Anti-overflow security time: 30 seconds Anti-blocking system preventing the water to flow continuously Solenoid valve automatically shut down in case of power shortage or in case of sensor degradation
> Delivered with:
2 Fastening nuts 1 Gasket and 1 Washer 2 PEX flexible hoses with F 3/8'' nut (12x17) and NF non-return valve 2 Straight stop valves G 3/8" (12x17) 2 Filter gaskets Instructions manual
> Standards & approvals :
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

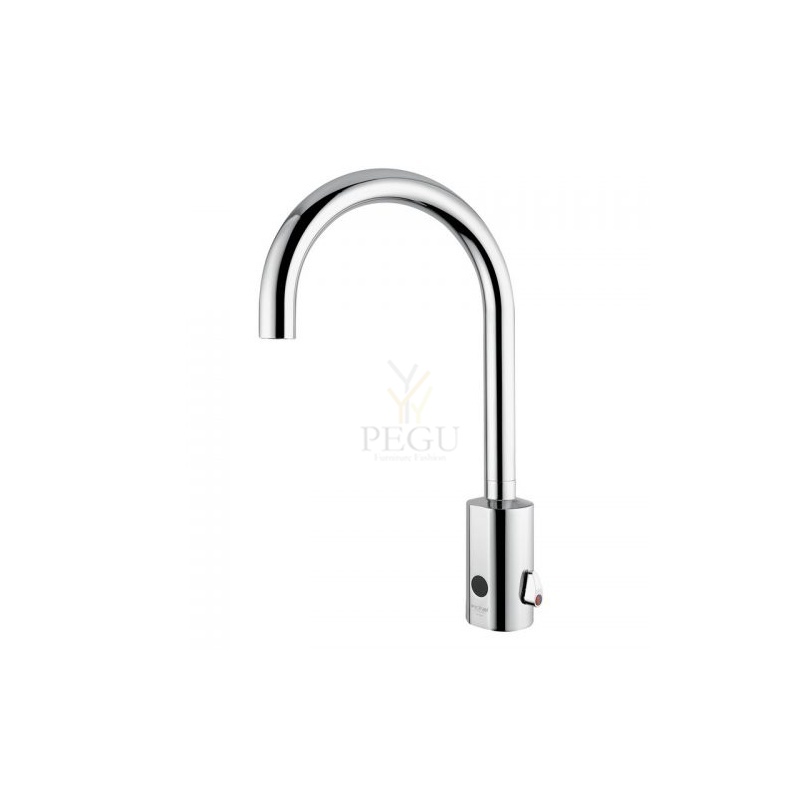

Idral Segisti sensoriga serie CURVE 02505, IP65 230V AC/6V DC kroom
Technical features
High tap (fixed) with spout H=250 mm, projection 200 mm
Mechanical mixing with side lever
Infrared sensor with activation on presence detection
Vandal proof stop after 1 min of continuous flow
Automatic anti-legionella water flow every 24h after last use
External power supply 230V AC/6V DC, protection grade IP65; cable with European plug (C); anti black-out device to ensure the shut off of the tap even in case power cut

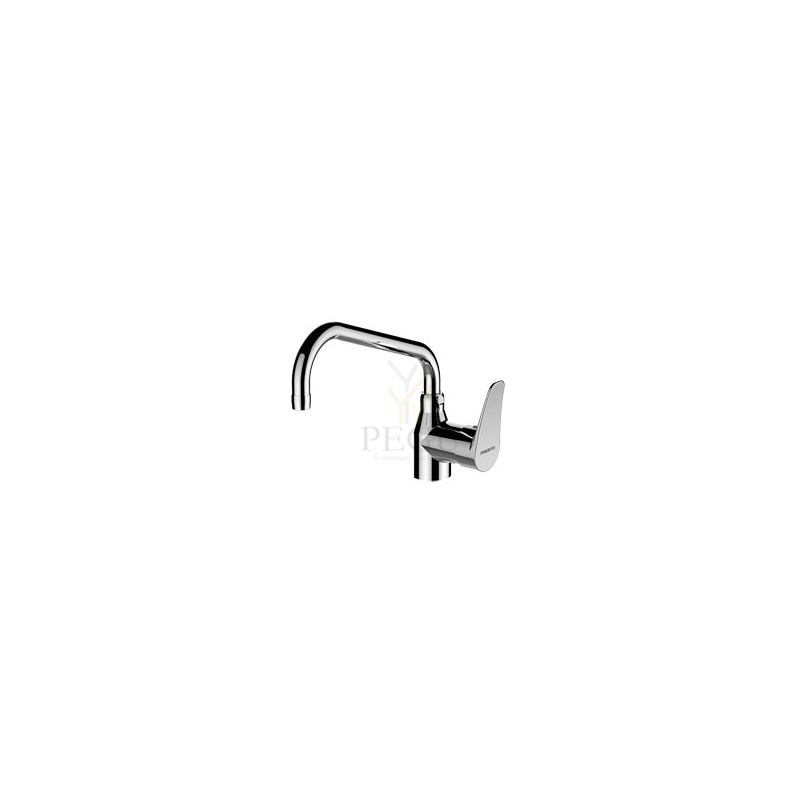

Ref: 70832 - Special ' Under Counter ' Bar- Deck-mounted mixer tap
> THE PRODUCT BENEFITS
Special "Bar" application: the spout is hidden under the counter: more aesthetic offset of the joystick on the side: easy access for washing Resistant to intensive use Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: Ø 22 mm - thickness 1.5mm Ergonomic and robust control: easy grip Hygiene: spout with smooth interior Product design Ease of cleaning Ease of maintenance: availability of all spare parts Flow straigntener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
360 ° swivel spout 250 mm projection. Height under spout 146 mm - diameter 22 mm Spout thickness: 1.5 mm Ceramic cartridge with flow 25 L / min at 38°C at 3 bar Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
1 fixing bracket 2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540 Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
