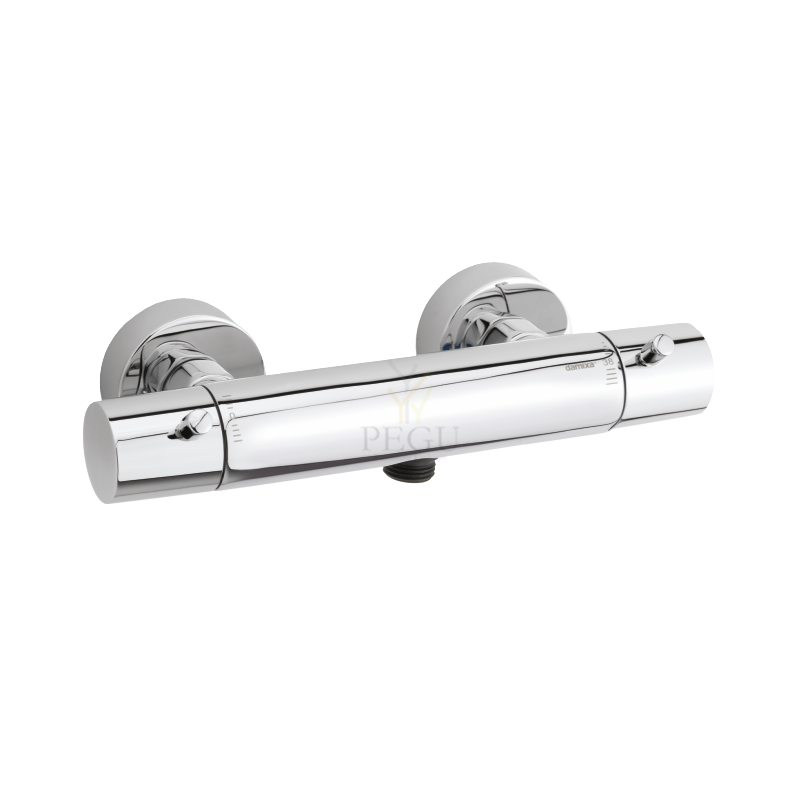

PREMIX COMFORT
Ref. 731004
Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1 ¼".
298 x 1198 x 220 mm
ca. 500 paper towels / 32 l
| AVAILABLE SURFACES | ORDER NUMBERS |
|---|---|
| satin finished (standard) | 722995 |
| highly polished | 731995 |
| (coloured) plastic powder - coating | 728995 |
for WA100 - 210
(from 2018)
86 x 34 x 25 mm
0,5 kg
Paris handle CC128mm. Available in brushed and polished. H2031
