DRINKING SYSTEM

Frost-free drinking system for cattle and horses
Fresh and clean water for the animals all year round
Without wiring or electricity
A minimum of maintenance
No concern about filling the drinking vessels
No concern about cleaning the drinking vessels

Automaatjootjad sobivad kasutamiseks nii karjamaal kui ka tallides ning nende läheduses asuvates joogikohtades.

Jootjaid on lihtne kasutada ning hobused saavad kiiresti aru, et mugavam on vee juurdevoolu avamiseks vajutada klapile

mitte nina otsaga vaid selle ülaosaga. Kui koon (mokad) on joomiseks vabad, joobki hobune loomulikul viisil vee pindmiselt

kihilt. Seetõttu olemegi valinud jooginõuks lai ja sügav kauss, et tekiks joomiseks mugav veepind.

Töötamise põhimõte

Tõusutoru on varustatud isetühjeneva 3-tee

ventiiliga, mis on paigaldatud kaevu, mis omakorda

on süvistatud pinnasesse.

Kui jootjat ei kasutata on veest tühi nii ventiil kui

ka tõustoru, milles olev vesi võiks muidu külmuda.

Nii jootja ventiil ja tõusutoru on külmumiskindlad nii

kaua kuni on külmumiskindel ka vee toitetorustik.

BROEN-LAB

Hädaabidušid on väga tähtis element ohutu töökohale!

Broen-Lab on kättesaadav ka Eestis

Kataloog Hädaabidušid BROEN-LAB

Soodus

SOS dušš, seinale kinnituv 1/2"

Tootekood: BR-17082009 , Tarneaeg: 7 päeva

432,00 € (10%)
480,00 €

Lisa soovikorvi

Võrdle

Soodus

SOS dušš, seinale kinnituv, peale ukse 1/2"

SOS dušš, seinale kinnituv 1/2"

Tootekood: BR-17087009 , Tarneaeg: 7 päeva

615,60 € (10%)
684,00 €

Lisa soovikorvi

Võrdle

Broen LAB Kangsegisti H-300mm, S-200mm

S P E C I F I CATIONS

Handle: Metal, BROEN POLYCOAT powder coated

Spout: Swivel action

Hose nozzle: Aerator

Cartridge: Ceramic (temperature and flow regulation type)

Opening/closing function: 25°, mixing function: ±45°

Temperature range: 0°C - 90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 2.4 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- removable hose nozzle

MOUNTING INFORMATION

Tootekood: B-25350391035-52B(15304459) , Tarneaeg: 2-3 nädalad

499,20 €

Lisa soovikorvi

Võrdle

Soodus

LAB segisti , F-150mm, WPH/WPC (15281009) Broen Lab

S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 3 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

Solder: DIN L-Ag55:Sn

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

Tootekood: B-25360011039-52B , Tarneaeg: 3-4 päeva

264,60 € (10%)
294,00 €

Lisa soovikorvi

Võrdle

Soodus

LAB segisti , F-200mm, WPH/WPC (15281009) Broen Lab

S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 3 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

Solder: DIN L-Ag55:Sn

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

Tootekood: B25360021039-52B , Tarneaeg: 3-4 päeva

297,00 € (10%)
330,00 €

Lisa soovikorvi

Võrdle

LAB segisti , F-250mm, WPH/WPC (152823009) Broen Lab

S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 3 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

Solder: DIN L-Ag55:Sn

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

Tootekood: B-25360131039-52B , Tarneaeg: 3-4 päeva

306,00 €

Lisa soovikorvi

Võrdle

Soodus

PP valamu 345x345x235 (PxLxK)

Sees 290x290 (vajab põhjaklappi 97B0073)

S P E C I F I CATIONS

Temperature range: 0-800C

Standard colour: black

Net weight: 1.6 kg

Dimensions: external 345 x 345 x 235mm (tolerance ± 1mm)

Injection moulded from polypropylene copolymer resin, with

a self-draining base. This square PP sink blends well into any

laboratory workbench. Extremely durable.

Tootekood: B-97B0350 , Tarneaeg: 7-14 päeva

103,50 € (10%)
115,00 €

Lisa soovikorvi

Võrdle

Soodus

Broen Lab PP labori valamu 552x400x235 (PxLxK)

Sees 492x282 (vajab põhjaklappi 97B0073)

SPECIFICATIONS

Temperature range: 0-80°C

Standard colour: black

Net weight: 2.2 kg

Dimensions: external 552 x 400 x 237mm (tolerance ± 1mm)

The rectangular sink with its self draining base are injection moulded from polypropylene copolymer resin. Designed for mounting on top or underside of work benches.

Tootekood: B-97B0552 , Tarneaeg: 2-3 nädalad

117,00 € (10%)
130,00 €

Lisa soovikorvi

Võrdle

Soodus

Tilgatops, suur ümargune, must

Tootekood: B-6014 , Tarneaeg: 3-5 päeva

65,45 € (15%)
77,00 €

Lisa soovikorvi

Võrdle

Soodus

Tilgatops, väike ümargune, must

Tootekood: B-6001 , Tarneaeg: 3-5 päeva

63,75 € (15%)
75,00 €

Lisa soovikorvi

Võrdle

Soodus

Tilgatops, väike ovaalne, must

Tootekood: B-6000 , Tarneaeg: 3-5 päeva

63,75 € (15%)
75,00 €

Lisa soovikorvi

Võrdle

Soodus

Valamu äravool labori valamule 1 1/2" BSP x 70mm

SPECIFICATIONS

Temperature range: 0-80°C

Standard colour: black

Net weight: 0.2 kg

Dimensions: Ø73, 1½” BSP (tolerance ± 1mm)

Including adjustable screw on nutø

Tootekood: B-97B0073 , Tarneaeg: 2-3 nädalad

16,20 € (10%)
18,00 €

Lisa soovikorvi

Võrdle

Pudelisifoon labori valamule 1 1/2"

SPECIFICATIONS

Temperature range: 0-80°C

Standard colour: black (other colours available on request )

Net weight: 0.5 kg

Dimensions: IN: 1½” BSP

OUT: 40mm (metric)

Height adjustable: telescopic bottle trap

Injection moulded from polypropylene copolymer resin, this anti-siphon bottle trap come with inlet of 1½” BSP, with black bowl.

PP BOTTLE TRAP

PRODUCT NUMBER 97B0040

PRODUCT NUMBER 97B0023

SPECIFICATIONS

Temperature range: 0-80°C

Standard colour: black (other colours available on request )

Net weight: 0.5 kg

Dimensions: IN: 1½” BSP

OUT: 40mm (metric)

Injection moulded

Tootekood: B-97B0040 (97B0080) , Tarneaeg: 2-3 nädalad

48,00 €

Lisa soovikorvi

Võrdle

Soodus

Külma või eelsegatud vee kraan F-150MM Broen Lab

S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.4 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- fixed spout

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

- WPH (Water Potable Hot)

- WNH (Water Non-Potable Hot)

Tootekood: B-25340011001-52B , Tarneaeg: 3-7 päeva

193,80 € (5%)
204,00 €

Lisa soovikorvi

Võrdle

Soodus

Külma või eelsegatud vee kraan F-200MM Broen Lab

S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.4 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- fixed spout

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

- WPH (Water Potable Hot)

- WNH (Water Non-Potable Hot)

Tootekood: B-25340021001-52B , Tarneaeg: 3-7 päeva

199,50 € (5%)
210,00 €

Lisa soovikorvi

Võrdle

Külma või eelsegatud vee kraan F-300MM

S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.4 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- fixed spout

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals

- WPH (Water Potable Hot)

- WNH (Water Non-Potable Hot)

Tootekood: B-25340161001-52B , Tarneaeg: 3-7 päeva

216,00 €

Lisa soovikorvi

Võrdle

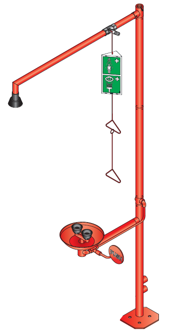

SOS silamdušš +kehadušš ARCTIC -20

Broen-Lab Greenline nood-oogdouchecombinatie, aansluitmaat 1.1/4", 1 sproeikop, vloer, binnendraad, bediening nooddouche trekstang (pullhandle), elektronisch 24V, incl. ogendouche, met opvangbak, oogdouche met opvangbak

Tootekood: B-H7410021000321 , Tarneaeg: 3-4 nädalad

7476,00 €

Lisa soovikorvi

Võrdle

SOS hädaabi Silmadušš + valamu

Ögondusch för bänk med skål

Ögon/ansiktsdusch med skål och bänkfäste. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon- & ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck.

• Min. arbetstryck: 1,5 bar
• Fälls in i bänk
• POLYCOAT står emot de flesta kemikalier
• Uppsamlingsskål i rostfritt stål med POLYCOAT
• FLOWFIX: 26 l/min
• 2-sidig efterlysande skylt, dekal & testkort
• Vikt: ca. 3,5 kg
• Anslutning: inv. DN15
• Avloppsanslutning: inv. DN32

Artikelnummer: 17 934 009

Tootekood: B-17934009 , Tarneaeg: 3-4 nädalad

1038,00 €

Lisa soovikorvi

Võrdle

Soodus

SOS termostaat Silmaduši jaoks , seina kinnitus 1/2"

Skyddsblandare för ögondusch

Termostatisk skyddsblandare, med väggfäste, för ögondusch.
Kompenserar för temperatursvängningar i systemet.

•Stänger av varmvattnet vid ett kallvattenbortfall
•Släpper igenom tillgängligt kallvatten vid bortfall av varmvatten
•Material: Mässing
•Ytbehandling: BROEN POLYCOAT
•Max kapacitet: Ca 30 lit/min
•Vikt: Ca. 1,5 kg
•Anslutning: Utv. DN15

Artikelnummer: 17 140 039

•Tillbehör: Väggfäste 2610046 till skyddsblandare
komplett med vinkelballofix. Utv. anslutning DN15

Tootekood: B-17140009 , Tarneaeg: 3-4 nädalad

717,25 € (5%)
755,00 €

Lisa soovikorvi

Võrdle

SOS kehaduš, lakke

Nöddusch med takfläns för dolda rör

Takmonterad kroppsdusch inkl. takfläns. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att förstahjälpen utrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme.

• Kroppsdusch med effektiv spolbild
• POLYCOAT står emot de flesta kemikalier
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 2kg
• Flöde 60l/min., vid 1,5 bar (Rör dimensioner anpassas för detta flöde)
• Anslutning: inv. DN15
Artikelnummer: 17 080 009
RSK nummer: 755 96 54

Tootekood: B-17080009 , Tarneaeg: 3-4 nädalad

420,00 €

Lisa soovikorvi

Võrdle

Kraan destilleeritud vesi S150mm, recirkulatsioon d25mm WDI

BROEN-LAB fully recirculating fittings ensure constant fresh

water with no dead legs even when the point-of-use valve is in closed position.

The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.

SPECIFICATIONS

Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792

Hose nozzle: Removable plastic

Headwork: Diaphragm type

Opening/closing function: 1 1/2 x 360°

Temperature range: 0-65°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.8 kg

MATERIALS WITH MEDIA CONTACT

Diaphragm: PTFE

Plastics: PP, PP-n, PVDF

Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- also available in ABS (1, 11/4 , 11/2)

Tootekood: B-25330431003 , Tarneaeg: 14-21 päeva

486,00 €

Lisa soovikorvi

Võrdle

Broen Lab Kraan deioniseeritud vesi S150mm, recirkulatsioon d25mm WDC

BROEN-LAB fully recirculating fittings ensure constant fresh

water with no dead legs even when the point-of-use valve is in closed position.

The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.

SPECIFICATIONS

Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792

Hose nozzle: Removable plastic

Headwork: Diaphragm type

Opening/closing function: 1 1/2 x 360°

Temperature range: 0-65°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.8 kg

MATERIALS WITH MEDIA CONTACT

Diaphragm: PTFE

Plastics: PP, PP-n, PVDF

Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- also available in ABS (1, 11/4 , 11/2)

Tootekood: B-25330431036 , Tarneaeg: 14-21 päeva

486,00 €

Lisa soovikorvi

Võrdle

Kraan destilleeritud vesi S150mm, seinast WDI

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330011003 , Tarneaeg: 14-21 päeva

300,00 €

Lisa soovikorvi

Võrdle

Broen Lab Kraan deioniseeritud vesi S150mm, seinast WDC

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330011036 , Tarneaeg: 14-21 päeva

300,00 €

Lisa soovikorvi

Võrdle

Kraan destilleeritud vesi S200mm, seinast WDI

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330021003 , Tarneaeg: 14-21 päeva

306,00 €

Lisa soovikorvi

Võrdle

Kraan deioniseeritud vesi S200mm, seinast WDC

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Tootekood: B-25330021036 , Tarneaeg: 14-21 päeva

306,00 €

Lisa soovikorvi

Võrdle

SOS silamdušš portatiivne silmad,nägu, keha 15L

Portable eyes and body shower with one spray head

Characteristics

suitable for medical facilities and industry
used as first aid if eyes impacted by accidents caused by fire, chemical or other dangerous substances in places where there is no access to water
portable eyewash and body shower with one spray head
stainless steel cylinder cover
