Surgical scrub up trough with low splashback

Ref. 181020

Wall-mounted surgical scrub up trough with low, 100mm splashback.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
L. 700mm, 1 service. With no tap hole.
Smooth surface and rounded inside edges for easy cleaning.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 10.6kg.


TECHNICAL CHARACTERISTICS

Surgical scrub up trough with low splashback

Ref. 181020
Height 465mm
Length 455mm
Width 700mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Tootekood: DE-181020 ,   Tarneaeg: 3-4 nädala
1799,50 €
Kirurgiline puhastusrenn madala pritsmetega

Ref. 182020

Seinale paigaldatav kirurgiline puhastusrenn 100 mm pritsmetega.
Sobib haiglate ja tervishoiuasutuste jaoks.
Roostevaba teras bakteriostaatiline 304. Poleeritud satiinviimistlus. Roostevabast terasest paksus: 1,2 mm.
L. 1400mm, 2 teenust. Ilma kraanaauguta.
Sile pind ja ümardatud siseservad lihtsaks puhastamiseks.
Drenaaž paremal. Ilma ülevooluta. Kaasas kinnitusdetailid.
Kaal: 18,8 kg.



Surgical scrub up trough with low splashback

Ref. 182020

Wall-mounted surgical scrub up trough with splashback 100mm.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
L. 1,400mm, 2 services. With no tap hole.
Smooth surface and rounded inside edges for easy cleaning.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 18.8kg.


TECHNICAL CHARACTERISTICS

Surgical scrub up trough with low splashback

Ref. 182020
Height 465mm
Length 455mm
Width 1400mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Хирургическая скраб-корыто с низким фартуком

Ref. 182020

Настенный хирургический корыто с фартуком 100 мм.
Подходит для больниц и медицинских учреждений.
Бактериостатическая нержавеющая сталь 304. Полированная атласная отделка. Толщина нержавеющей стали: 1,2 мм.
Л. 1400мм, 2 серв. Без отверстия под смеситель.
Гладкая поверхность и закругленные внутренние края для легкой очистки.
Дренаж справа. Без перелива. Поставляется с крепежными элементами.
Вес: 18,8 кг.
Tootekood: DE-182020 ,   Tarneaeg: 3-4 nädala
2549,80 €

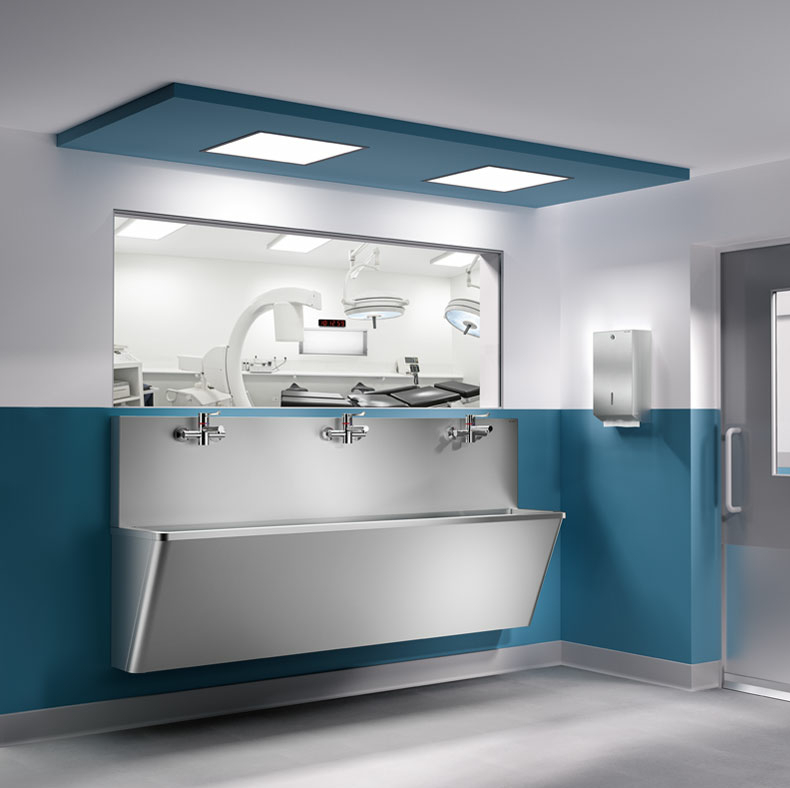

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P

Wall-mounted SECURITHERM thermostatic sink mixer.
Sequential: opens and closes with cold water.
Supplied with 2 removable BIOCLIP stainless steel spouts L. 136mm.
Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Scale-resistant sequential thermostatic cartridge.
Temperature control: cold water up to 40°C. Temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres, supplied with in-line STOP/CHECK connectors ideal for hospitals.
Chrome-plated brass body.


TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P
Connector M1/2"
Technology SECURITHERM BIOCLIP sequential, Securitouch
Height 141mm
Width 184mm
Spout length 136mm
Flow rate 7 lpm
Temperature limiter 40°C
Finish Chrome-plated brass
Tootekood: DE-H9611P ,   Tarneaeg: 14-21 päeva
652,70 €

Surgical scrub-up trough with high splashback

Ref. 182000

Wall-mounted surgical scrub-up trough with splashback 360mm.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
L. 1,400mm, 2 services. With no tap hole.
Smooth surface and rounded inside edges for easy cleaning.
Drainage on the right.
Without overflow.
Supplied with fixing elements.
Weight: 24.2kg.


Kahekohaline kirurgi valamu kõrgema tagaseinaga.

Materjal: AISI 304

Pikkus : 1400mm

Valamu sügavus: 350mm

Laius: 520 mm



Variandid:

Tagaseinas  ava sensorjuhtimisega segistile

Tagaseinas  2 ava kangsegistile


TECHNICAL CHARACTERISTICS

Surgical scrub-up trough with high splashback

Ref. 182000
Height 725mm
Length 520mm
Width 1400mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Tootekood: DE-182000 ,   Tarneaeg: 3-4 nädala
2635,20 €

Surgeons’ hand wash basin 7110

Surgeons’ hand wash basin 7110 is designed to facilitate handwashing in operating theatre cleaning facilities in particular. The shape of the basin’s front edge is designed to direct any water dripping from the elbows back into the basin. The polished surface and rounded edges of the hand hygiene basin make the basin easy to disinfect and clean.

The basin can be used for creating a basin group set by joining the basins together.

Material
Stainless steel AISI 304
Surface treatment
Electric polishing
Measurements of basin (width x depth x height)
1000x675x150mm
Accessories
A base valve (stench trap isn’t included in the delivery)
Connections
Drain connection
Installation
Wallmounting

Умывальник для рук хирургов 7110

Раковина для мытья рук 7110 для хирургов предназначена для облегчения мытья рук, в частности, в операционных. Форма переднего края раковины разработана таким образом, чтобы вся вода, капающая с локтей, направлялась обратно в раковину. Полированная поверхность и закругленные края раковины для гигиены рук позволяют легко дезинфицировать и чистить раковину.

Раковину можно использовать для создания группы бассейнов путем объединения бассейнов.

Паспорт продукта

Материал
Нержавеющая сталь AISI 304
Обработка поверхности
Электрическая полировка
Размеры бассейна (ширина x глубина x высота)
1000x675x150 мм
Аксессуары
Базовый клапан (зловонный уловитель не входит в комплект поставки)
Подключения
Сливное соединение
Установка
Настенное крепление

Kirurgide kätevalamu 7110

Kirurgide kätevalamu 7110 on loodud selleks, et hõlbustada käte pesemist eelkõige operatsioonisaalides. Valamu esiserv on kujundatud nii, et küünarnukkidest tilkuv vesi suunatakse tagasi basseini. Käte hügieenivalamu poleeritud pind ja ümarad servad muudavad valamu kergesti desinfitseeritavaks ja puhastatavaks.

Valamut saab kasutada vesikondade kogumi loomiseks, ühendades kraanikausid kokku.

Toote andmeleht

Materjal
Roostevaba teras AISI 304
Pinnatöötlus
Elektriline poleerimine
Valamu mõõtmed (laius x sügavus x kõrgus)
1000x675x150 mm
Tarvikud
Alusklapp (haisupüüdur ei kuulu komplekti)
Ühendused
Tühjendusühendus
Paigaldamine
Seinakinnitus



Tootekood: KAV-7110 ,   Tarneaeg: 3-4 nädala
7650,00 €

Sequential mechanical basin mixer

Ref. 2436S
Sequential mechanical mixer with swivelling spout L. 200mm


DESCRIPTION

Sequential mechanical basin mixer

Ref. 2436S
Wall-mounted 90° sequential basin mixer.
Open and closing on cold water.
Flat swivelling under spout L. 200mm with hygienic flow straightenersuitable for fitting a BIOFIL terminal filter.
Securitouch thermal insulation prevents burns.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume(reduces bacterial development).
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Non-manual contact operation with Hygiene control lever L. 200mm.
Supplied with two standard connectors M1/2" M3/4".


TECHNICAL CHARACTERISTICS

Sequential mechanical basin mixer

Ref. 2436S
Connector M1/2"
Technology Securitouch
Spout length 200mm
Flow rate 5 lpm
Finish Chrome-plated brass
Tootekood: DE-2436S ,   Tarneaeg: 3-4 nädala
475,80 €

Seinasegisti Delabie SECURITHERM EP 2445LEP pöör.toruga L200mm, Hygiene käepide L150mm

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEP

Wall-mounted SECURITHERM pressure-balancing basin mixer.
Wall-mounted mixer with flat swivelling under spout L. 200mm with hygienic flow straightener suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow rate is reduced if CW fails (and vice versa).
Stable temperature regardless of flow rate and pressure variations in the system.
Securitouch thermal insulation prevents burns.
Ø 40mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduces bacterial niches).
Flow rate regulated at 5 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm.
Mixer supplied with offset STOP/CHECK wall connectors M1/2" M3/4" ideal for hospitals.
Recommended installation height: 110 - 200mm above the basin surface.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.


TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEP
Connector M1/2"
Technology SECURITHERM EP mixer, Securitouch
Spout length 200mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated
Tootekood: DE-2445LEP ,   Tarneaeg: 14-21 päeva
512,40 €

TEMPOMATIC tap with BIOCLIP spout

Ref. 20804T2
Electronic wall-mounted tap with mains supply


TEMPOMATIC tap with BIOCLIP spout

Ref. 20804T2
Wall-mounted electronic tap with BIOCLIP removable spout for mounting on panels.
Independent IP65 electronic control unit.
230/12V mains supply with transformer
Tap supplied with 2 removable BIOCLIP stainless steel spouts L. 129mm.
Base and spout with smooth interiors (reduces bacterial development).
Adjustable duty flush (pre-set at ~60 seconds every 24 hours after last use).
Flow rate limited to 4 lpm at 3 bar.
Separate sensor for mounting on panels.
M3/8" solenoid valve with integrated filter.
Shock-resistant infrared presence detection sensor.
Ø 60mm chrome-plated brass base.
Anti-blocking security.
Recommended installation height: 110 - 200mm above the basin surface.
Suitable for people with reduced mobility.


Two shut-off options:
- standard mode: timed flow with automatic shut-off.
- ON/OFF mode: user shuts off flow voluntarily or automatic shut-off after 30 minutes of flow.
Thermal shocks are possible.

Ref. 20804T2
Seinale paigaldatav elektrooniline kraan koos BIOCLIP eemaldatava tilaga paneelidele kinnitamiseks.
Sõltumatu IP65 elektrooniline juhtseade.
230/12V võrgutoide koos trafoga
Kraan kaasas 2 eemaldatava BIOCLIP roostevabast terasest tilaga L. 129mm.
Alus ja tila sileda sisemusega (vähendab bakterite arengut).
Reguleeritav loputus (eelseadistatud ~ 60 sekundiks iga 24 tunni järel pärast viimast kasutamist).
Voolukiirus on piiratud 4 lpm juures 3 baari juures.
Eraldi andur paneelidele kinnitamiseks.
M3/8 "solenoidventiil koos integreeritud filtriga.
Löögikindel infrapuna olemasolu tuvastamise andur.
Ø 60 mm kroomitud messingist alus.
Blokeerimisvastane turvalisus.
Soovitatav paigalduskõrgus: 110 - 200 mm kraanikausi pinnast kõrgemal.
Sobib liikumispuudega inimestele.


Kaks väljalülitusvõimalust:
- standardrežiim: ajastatud vool automaatse väljalülitamisega.
- ON/OFF režiim: kasutaja lülitab voolu vabatahtlikult välja või automaatse väljalülituse pärast 30-minutilist voolu.
Võimalikud on termilised šokid.

TEMPOMATIC кран с изливом BIOCLIP

Ref. 20804T2
Настенный электронный кран со съемным изливом BIOCLIP для монтажа на панели.
Независимый электронный блок управления IP65.
Питание от сети 230/12 В с трансформатором
Смеситель поставляется с 2 съемными носиками BIOCLIP из нержавеющей стали, длина 129 мм.
Основание и носик с гладкими внутренними поверхностями (снижает развитие бактерий).
Регулируемая длительная промывка (предварительно установлено ~ 60 секунд каждые 24 часа после последнего использования).
Скорость потока ограничена 4 л / мин при 3 барах.
Отдельный датчик для монтажа на панели.
Электромагнитный клапан M3 / 8 "со встроенным фильтром.
Ударопрочный инфракрасный датчик присутствия.
Основание из хромированной латуни Ø 60 мм.
Антиблокировочная безопасность.
Рекомендуемая высота установки: 110 - 200 мм над поверхностью раковины.
Подходит для людей с ограниченными физическими возможностями.
Гарантия 10 лет.

Два варианта отключения:
- стандартный режим: подача по времени с автоматическим отключением.
- Режим ВКЛ / ВЫКЛ: пользователь отключает поток по собственному желанию или автоматически отключает поток через 30 минут.
Возможны тепловые удары.


TECHNICAL CHARACTERISTICS

TEMPOMATIC tap with BIOCLIP spout

Ref. 20804T2
Connector 3/8"
Technology Electronic
Depth 190mm
Length 129mm
Spout length 188mm
Flow rate 4 lpm
Finish Chrome-plated brass
Tootekood: DE-20804T2 ,   Tarneaeg: 3-4 nädala
658,80 €
