Delabie PREMIX NANO termostadi ventiil d15mm kroom 34°C to 60°C
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21päeva
Müüja: PEGU OÜ

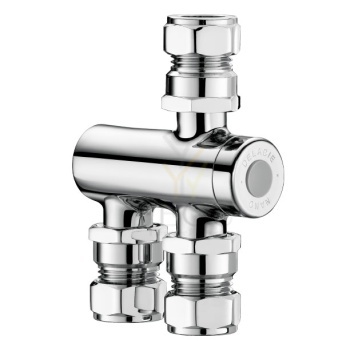

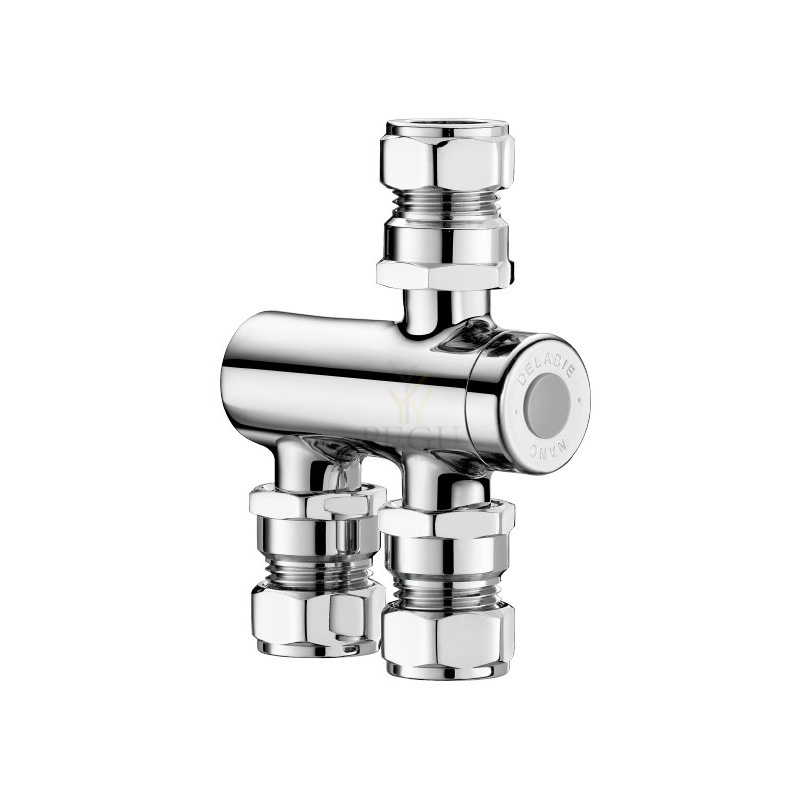

PREMIX NANO thermostatic mixing valve
Ref. 732116
Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Chrome-plated brass body M1/2'' inlets and Ø 15mm conical outlets.
Failid
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bar - 4 position-setting Anti water-hammer system
> 15 seconds - lever upwards or downwards
> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Installation: Cross-partition Wall thickness: 0 to 50 mm
> Delivered with: 2 PEX hoses with swivel nut and NF check valves 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 clamping nut > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
Idral Segisti isesulguva mehhanismiga 45 series, 15 sek kroom
45 series self closing basin mixer with push button
Mixing with side lever
Self-closing time 15 secs at 3 bars (reducible)
Aerator with 6 l/min. flow limiter
PREMIX SECURITY
Ref. 731055
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at >65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".
PREMIX COMFORT
Ref. 731002
Group thermostatic mixing valve for mixed water distribution from 32° - 42°C:
Anti-scalding safety.
Regulates temperature variations.
Filters and non-return valves can be accessed from the outside without removing the mechanism.
Thermal shock with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C minimum.
Pressure difference at the inlets: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 - 10 bar (1 - 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
55 lpm - M3/4".
