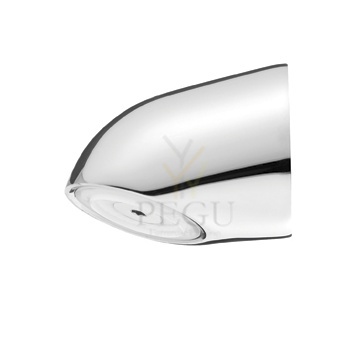

Jäik dušiotsik Presto , süvistatud paigaldus

Tootekood: P29301
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind: 108,00 €
97,20 €
Kogus: - +
   - või -

1/2" väliskeere

Kokku sobivad tooted

Peitsegisti 30 sek töötsükkel

Tootekood: P35941 ,   Tarneaeg: 7-14 päeva
468,00 €

Peitsegisti 30 sek töötsükkel

Tootekood: P35190 ,   Tarneaeg: 7-14 päeva
534,00 €

Peitsegisti 30 sek töötsükkel

Antiblock süsteemiga

Tootekood: P35192 ,   Tarneaeg: 7-14 päeva
567,00 €

Dušhikraan, eelsegatud veele 30 sek töötsükkel

Tootekood: P38222 ,   Tarneaeg: 7-14 päeva
146,00 €
Sarnased tooted

Käsidušš

Tube

Tootekood Viimistlus Seeria

7666400 EAN Nr.: 5708516802853 Kroom
Käsidušš

Standardomadused:

Kummiaeraator - lihtne puhastada Veesäästu funktsioon Eco-Save
1 pihustusviis

Tootekood: D7666400 ,   Tarneaeg: 7-14 päeva
29,00 €

Segisti, isesulguv

kroom

15 sek töötsükkel



Tootekood: IDR-08132-15 ,   Tarneaeg: 7 päeva
197,50 €

Peitsegisti 30 sek töötsükkel

Antiblock süsteemiga

Tootekood: P35192 ,   Tarneaeg: 7-14 päeva
567,00 €



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
254,00 €



SP 5

tilting shower head - 12 l/min - VANDAL-RESISTANT






Design vandal-resistant arm with the flow of 12 litres / minute. The arm has a tilting outlet and an aerator protected against scaling. The arm is protected against theft with a countersunk Allen screw; therefore, it cannot be dismounted without a tool.

Tootekood: AZP-SP5 ,   Tarneaeg: 3-4 nädalad
104,00 €
