Invatugi ülestõstetav Delabie 5160P1 L650mm AISI304 Roostevaba teras
Invatugi ülestõstetav Delabie 5160P1 L650mm AISI304 Roostevaba teras

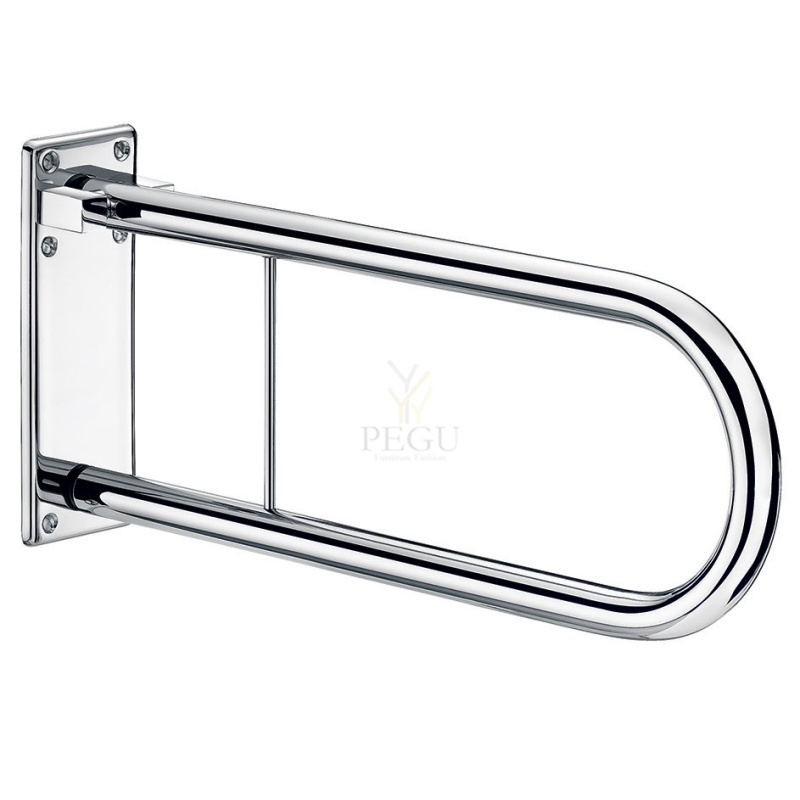

Stainless steel drop-down rail, bright, L. 650mm
Ref. 5160P1
In the lowered position use as a grab bar, for standing up and assisting movement. For WCs or showers. Allows side access in the raised position.

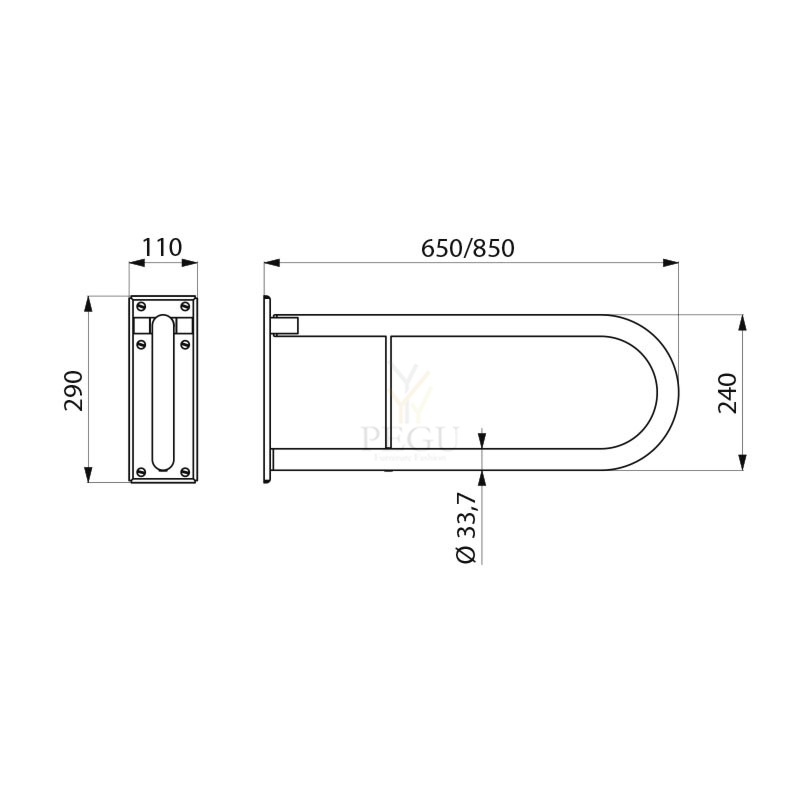

Dimensions: 650 x 290 x 110mm, Ø 33.7mm.
Bacteriostatic 304 stainless steel tube.
Stainless steel with UltraPolish bright polished finish, uniform non-porous surface for easy maintenance and hygiene.
Visible fixings with a 304 stainless steel cover plate, 2.5mm thick.
Supplied with stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight 135kg.
TECHNICAL CHARACTERISTICS
Stainless steel drop-down rail, bright, L. 650mm
Ref. 5160P1Height | 290mm |
Length | 650mm |
Width | 110mm |
Diameter | Ø 33.7mm |
Finish | 304 stainless steel UltraPolish bright polished |
Failid
Käetugi 692mm sirge
teras valge epoksükate
d 32mm
toru paksus 1,5mm
Pelavajutav äärikukate d 81mm
39,00 €
The supporting armrest provides assistance to those with limited strength and mobility.
Nova2 Care
619,00 €
-
Components y materials
-
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
-
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
-
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
-
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
534,00 €
Stützklappgriff mit Grundplatte vario, E-Taster: WC-Schließer, Anschluß verdeckt mit Montageplatte
Länge 725 mm,
aus Aluminium, kratzfeste Pulverbeschichtung mit antibakteriellem
Schutz, lieferbar in den Cavere Farben, mit trigonometrischer Griffkontur zum ergonomischen Abstützen und Greifen, Platz sparend durch zentrische Lagerkonsole, links und rechts einsetzbar, mit robuster und wartungsfreier Gleitlagertechnik, mit einstellbarer Bremse, einfache Montage oder Demontage durch Einhängen in die Grundplatte, Grundplatte aus Edelstahl mit
ausgleichender Wandauflage, verdeckte Verschraubung,nachrüstbar mit Papierrollenhalter 7449 110, max. zul. Belastung: 100 kg,
Belastbar bis 100 kg.
Allgemeine Beschreibung E-Taster: Ø 32 mm, mit Bildzeichen: Farbe blau für WC-Spülung, Farbe rot für die Option Ruftaste, Farbe schwarz für eine frei belegbare Option (neutral). Spiralkabel 4-adrig 0,25 mm² für Steuerspannung bis 24 V.. Stützklappgriff vario, einhängbar, kann mit max. zwei E-Tastern geliefert werden. E-Taster mit der Funktion »Schließer« werden überwiegend für WC-Spülungen eingesetzt, können aber auch mit einer frei belegbaren Option ausgestattet werden. Die Funktion »Öffner« wird überwiegend bei Rufanlagen verwendet.
Das Befestigungsmaterial ist nach den baulichen Gegebenheiten festzulegen und separat zu bestellen.
