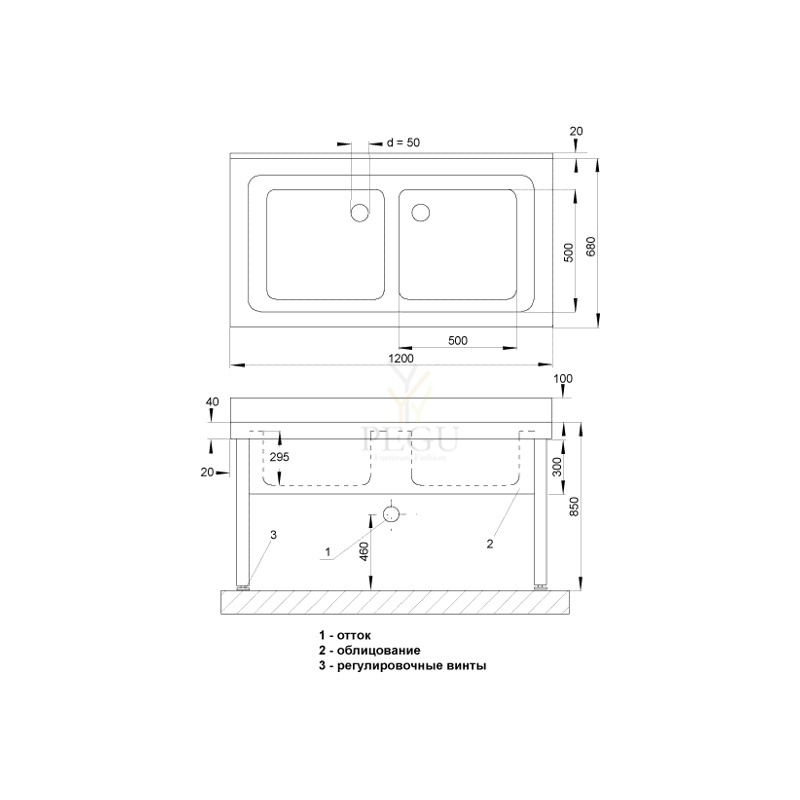

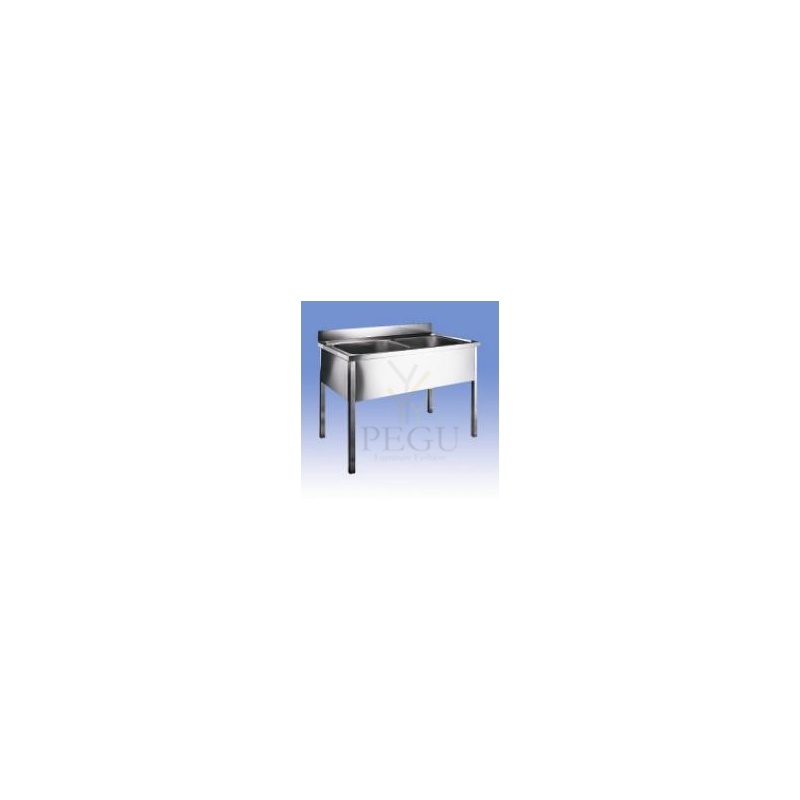

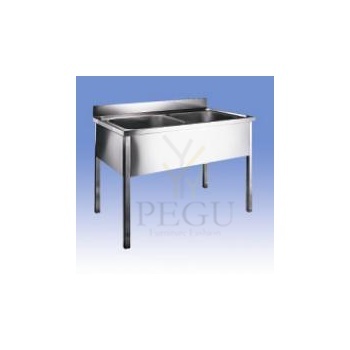

2-ne Valamu jalaga 1200x700, kõrgus 850mm , R/V teras

R/V teras veetrapp, D75 mm vertikaalne, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm

	PV 01 stainless steel floor trap

PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!

Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable

Basic technical information
Minimum inner diameter:	70 mm
Diameter of connecting sewerage pipe:	75 mm
Water flow:	min. 50 lts / min
Loading class:	K3
Weight:	2,2 kg

Complete delivery
Trap body Grid with braz cover Hook to pull up the grid

Requirements for setting up the construction
Completed sewerage drains terminated by DN 75 coupling Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P , Tarneaeg: 3-4 nädalad , Viimistlus:

429,93 €

Ämbrirest valamule Intra U4

Tootekood: I-URIST4-1 , Tarneaeg: 7-14 päeva , Viimistlus:

124,00 €

Joogifontään seinale mehaaniline R/V teras AISI304

AFO 01 stainless steel wall-mounted drinking fountain

AFO 01 is a stainless steel wall-mounted drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 01 stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
AFO 01 is made of stainless steel AISI 304.
AFO 01.CL is made of stainless steel AISI 316 and is suitable into the areas with higher concentration of chlorine (e.g. swimming pools).
Sensor-controlled fountain possible made to order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

stainless steel sink with casing
press valve
corner valve with filter
flexible hose siphon
fixing bar
connecting hoses
anchoring material

Water inlet	G 1/2"
Water pressure	0,2 – 0,6 MPa (recommended 0,3 MPa)
Outlet	d = 40 mm
Inner dimension of the fountain	d = 245 mm
Weight	4 kg

Tootekood: AZP-AFO01 , Tarneaeg: 3-4 nädala , Viimistlus:

777,54 €

Joogifontään free-standing mehaaniline R/V teras AISI316

AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)

AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl

Package contents

stainless steel column and cone with nozzle
press valve
anchoring construction
flexible hose siphon
connecting hoses
anchoring material

Set-up water inlet - pipe G 1/2“
Set-up drainage d = 40 mm
Prepared alcove for embedding (concreting) in the base construction

Water inlet	G 1/2"
Water pressure	2 – 6 Bar, recommended 3 Bar
Outlet	d = 40 mm
Inner dimensions of sink	d = 290 mm
Weight	20 kg

Tootekood: AZP-AFO02.CL , Tarneaeg: 3-4 nädalad , Viimistlus:

1934,20 €
