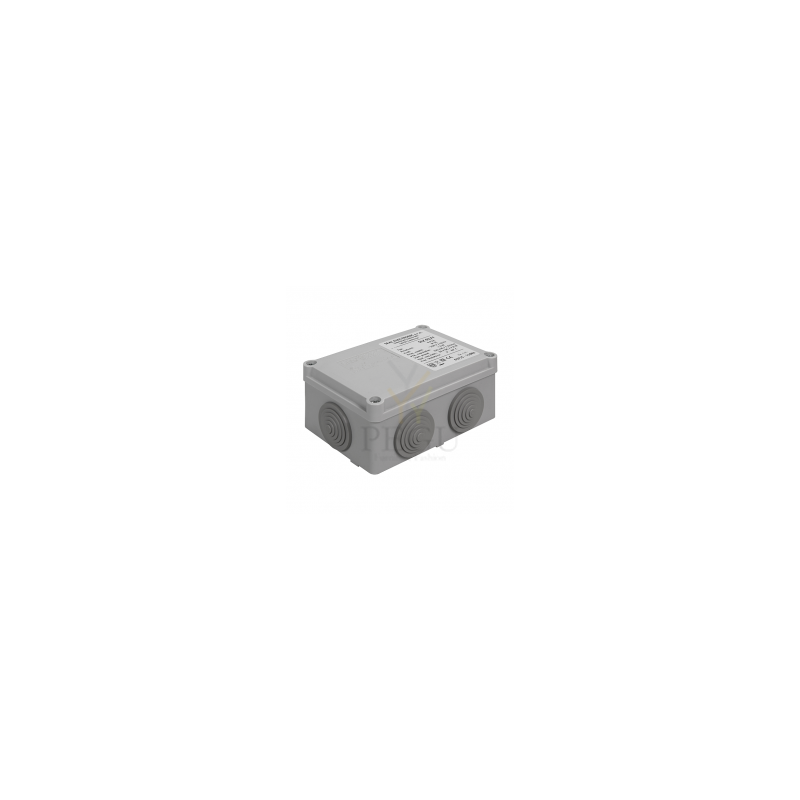

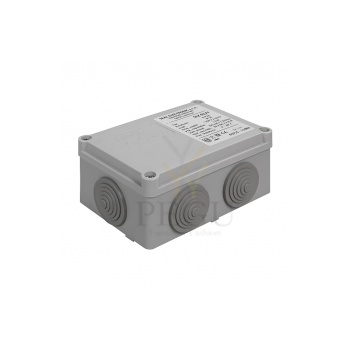

Adapter 220/24V DC 1-2 segistile, 1-3 pissuaare
Kaubamärk:
Ühik: tk
Tarneaeg: 14 päeva
Lisainfo: info@pegu.ee
PEGU0121 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!
Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.
Failid
Characteristics
- economical aerator, rate of flow 6 l/min
- function of automatic water stop after 5 minutes of continuous flow
- water is flowing as long as hands are in the active range (max. range to 0,3 m)
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay from 0,25 to 7,75 sec
- possibility of changing of time delay, active range and switching off by SLD 03
- SLU 45 is destined for cold or premixed water under the washbasin
- START/STOP program
1092х383х80 мм
SLP 07B
Radar flushing unit on the mounting rail, 6 V
Characteristics
- radar flushing unit for urinals NOVA PRO FELIX 26 000; RENOVA Nr. 1 235 300; NOVA PRO ALEX 66 000; NOVA PRO M36 000; RENOVA Nr. 1 PLAN 235 100 (Kolo)
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Code | SLP 07B |
Order number | 11076 |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
SLP 02NZ
Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
Order number | 42023 |
Code | SLP 02NZ |
Supply specification
Technical information
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
SLP 49RZ
Urinal Caprino Plus with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the ball valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 01495 |
Code | SLP 49RZ |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
831,00 €
SLP 59RZ
Urinal Lema with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 01593 |
Code | SLP 59RZ |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
1494,00 €
