AZP Brno adapter 1-3 punkte

Tootekood: AZP-ZAC 1-20
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädalad
Hind:
70,75 €
Kogus: - +
   - või -

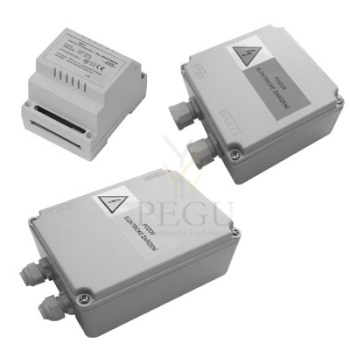

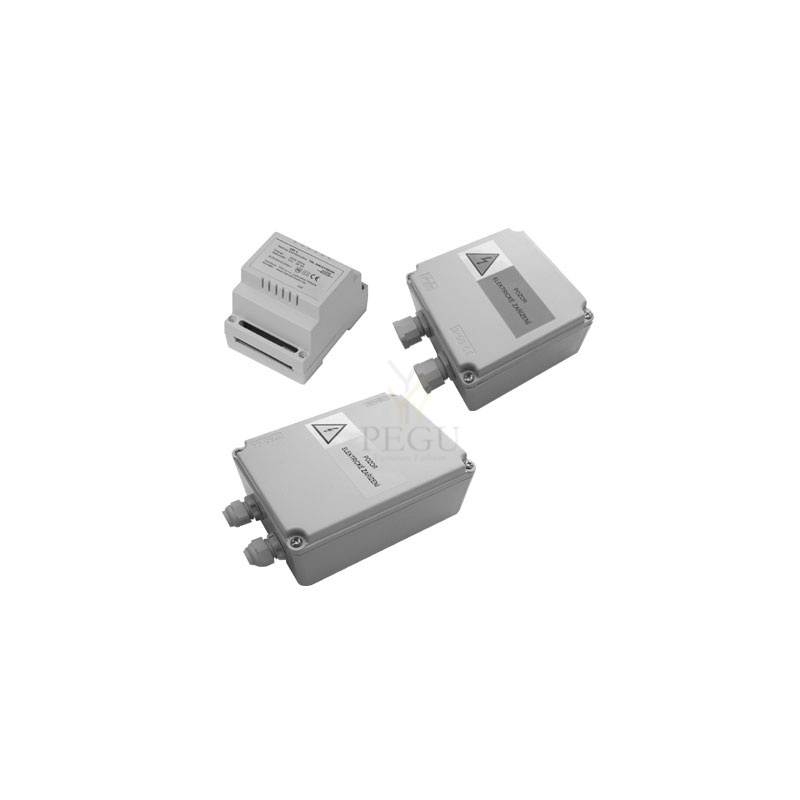

ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules

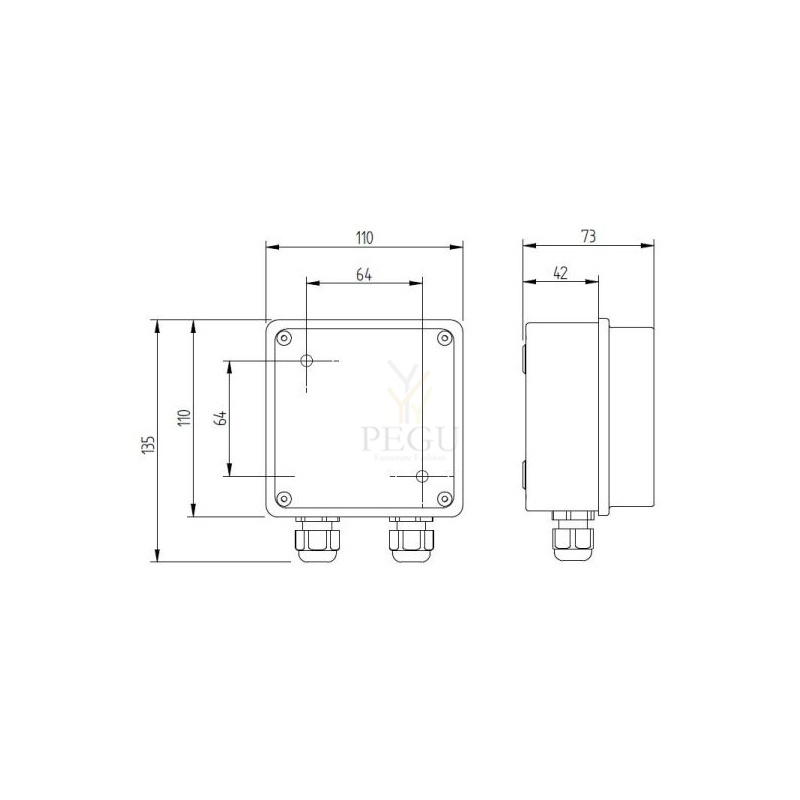

Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz



ZAC 1/20, ZAC 1/50, ZAC 1/36L

источники безопасного питаниа






ZAC – источники безопасного питания автоматических элементов управления предметов сантехники компании AZP Brno.

Источники содержат предохранительный трансформатор, изготовленный в соответствии с нормой ?SN IEC 742+A1. К источнику могут быть подсоединены все виды датчиков в любой комбинации или другие устройства, действующие от питающего напряжения 12 В, 50 Гц, с суммарной потребляемой мощностью до 20 ВА, 50 ВА или 36 ВА.

ZAC 1/20, ZAC 1/50 отдельные источники, ZAC 1/36L для установки на DIN рейку м распределителю - 4 модули.



Источники можно уставить максимально 30 м от питаемого продукта.


Типовые варианты
ZAC 1/20 - источник напряжения с потребляемой мощностью 20 ВА
ZAC 1/50 - источник напряжения с потребляемой мощностью 50 ВА
ZAC 1/36L - источник напряжения с потребляемой мощностью 36 ВА

Источник питания может располагаться на расстоянии не более 30 м от питаемого изделия.

Основные технические характеристики
Входное напряжение: 230 В, 50 Гц
Выходное напряжение: 12 В, 50 Гц
Мощность: 20 ВА (ZAC 1/20)
  50 ВА (ZAC 1/50)
  36 BA (ZAC 1/36L)
Класс электрозащиты: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Вес: 0,8 кг (ZAC 1/20, ZAC 1/36L)
  1,2 кг (ZAC 1/50)


Требования к установке
ZAC 1/20, ZAC 1/50
  1. Подготовлена подача электрической энергии 230 В,50 Гц – кабель CYKY 3Cx1,5
  2. В случае «утопленного» монтажа должна быть подготовлена ниша – размер зависит от установленного источника.
  3. Распределительная сеть к отдельным устройствам с использованием кабеля CYKY 2Ax1,5
ZAC 1/36L
  1. Установуется в распределителю на DIN рейку - ширина 4 модулы


Примечание
ZAC 1/20

ZAC 1/50





Наименование продуктов
ZAC 1/20 -
источник питания для 3устройств - 230В, 50 Гц
ZAC 1/50 -
источник питания для 8 устройств - 230В, 50 Гц
ZAC 1/36L -
источник питания на рейку для макс. 6 устройств - 230В, 50 Гц
