Tootegrupid
Broen LAB kangsegisti käsidušiga.png Zoom

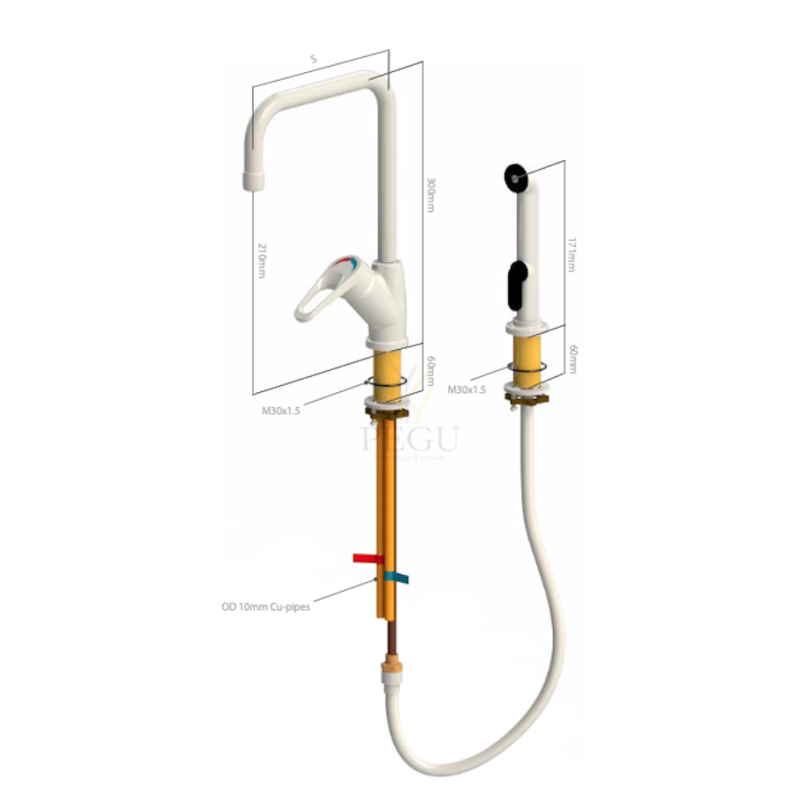

Broen LAB Labori segisti kangiga käsiduššiga H-300mm S-150mm

Tootekood: B-25350421035-52C
Kaubamärk:
Ühik: tk
Tarneaeg: 2-4 nädalad
Hind: 570,00 €
541,50 €
Kogus: - +
   - või -
S P E C I F I CATIONS
Handle: Metal, BROEN POLYCOAT powder coated
Spout: Swivel action
Hose nozzle: Aerator
Cartridge: Ceramic (temperature and flow regulation type)
Opening/closing function: 25°, mixing function: ±45°
Temperature range: 0°C - 90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.4 kg
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: POM, PTFE, SPX (hose)
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96%
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- removable hose nozzle
MOUNTING INFORMATION
Sarnased tooted
Tootekood: B-6014 ,   Tarneaeg: 3-5 päeva
56,10 € (15%)
66,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Tootekood: AZP-PV 01.D.75.P ,   Tarneaeg: 3-4 nädalad
214,20 € (10%)
238,00 €
Tootekood: BR-17528009 ,   Tarneaeg: 7-14 päeva
822,00 €

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P

Wall-mounted SECURITHERM thermostatic sink mixer.
Sequential: opens and closes with cold water.
Supplied with 2 removable BIOCLIP stainless steel spouts L. 136mm.
Anti-scalding failsafe: immediate shut-off if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Scale-resistant sequential thermostatic cartridge.
Temperature control: cold water up to 40°C. Temperature limiter set at 40°C.
Thermal or chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres, supplied with in-line STOP/CHECK connectors ideal for hospitals.
Chrome-plated brass body.


TECHNICAL CHARACTERISTICS

SECURITHERM BIOCLIP thermostatic sink mixer

Ref. H9611P
Connector M1/2"
Technology SECURITHERM BIOCLIP sequential, Securitouch
Height 141mm
Width 184mm
Spout length 136mm
Flow rate 7 lpm
Temperature limiter 40°C
Finish Chrome-plated brass
Tootekood: DE-H9611P ,   Tarneaeg: 14-21 päeva
641,00 €

Laborikraan Broen-Lab Sensoriga tööpinnale. S=200mm.220V

Pöördepiiraja 110 kraadi. Valge (RAL0008500)

Broen-LAB



Specifications

Aerator, with flow limitation 5 L/min
Sensor operated opening and closing function with bi-stabile technology
110° limited swivel spout

Temperatur range: 5-65° (41°F - 149°F) Max. working pressure: 10 bar/145 psi

Surface

Chemical resistant Polyester Based Surface treatment, UV-resistent.
BROEN-LAB colour: 2700 (RAL colour: 0008500)

Material with media contact

Brass
Rubber, EPDM
Silicone based lubricant PPSU
SS
PA
SPX Hose

Electrical connection

Adaptor: 100-240 V AC 50/60 Hz Battery: 6 V Lithium

Hose

Supplied with hoses.
Hose (1) on the picture is mandatory and included. Hose (2) on the picture is optional. See in the table below which options you have for hose (2)*.
For further options contact BROEN-LAB

Tootekood: B-26010171035-52 ,   Tarneaeg: 14-21 päeva
744,00 €
