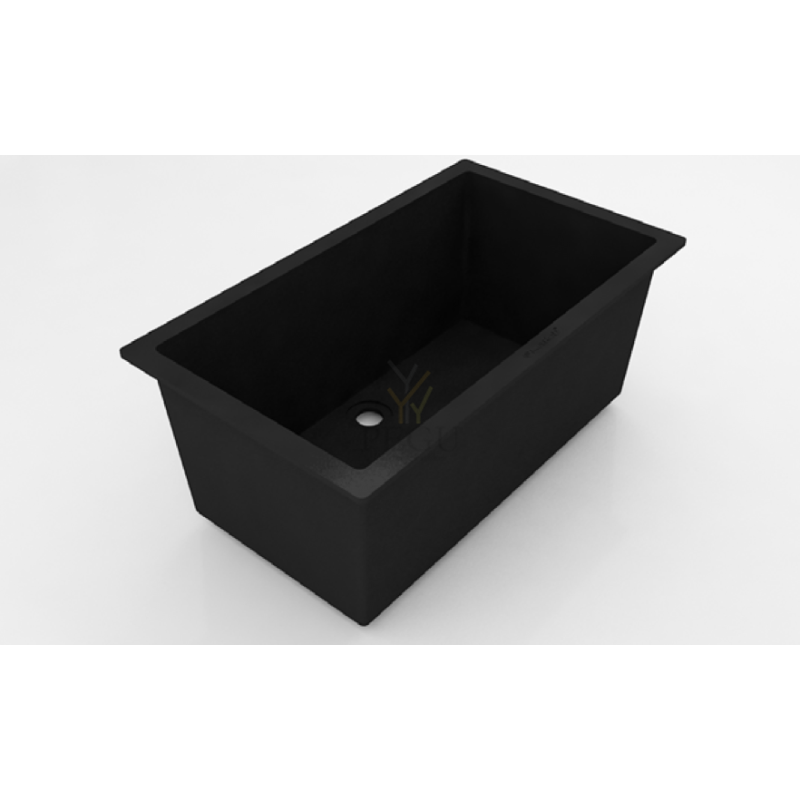

Broen Lab PP labori valamu 807x469x330 (PxLxK) 97B0810



SPECIFICATIONS

Temperature range: 0-80°C

Standard colour: black (other colours available on request )

Net weight: 0.5 kg

Dimensions: IN: 1½” BSP

OUT: 40mm (metric)

Height adjustable: telescopic bottle trap

Injection moulded from polypropylene copolymer resin, this anti-siphon bottle trap come with inlet of 1½” BSP, with black bowl.

PP BOTTLE TRAP

PRODUCT NUMBER 97B0040

PRODUCT NUMBER 97B0023

SPECIFICATIONS

Temperature range: 0-80°C

Standard colour: black (other colours available on request )

Net weight: 0.5 kg

Dimensions: IN: 1½” BSP

OUT: 40mm (metric)

Injection moulded



SPECIFICATIONS

Temperature range: 0-80°C

Standard colour: black

Net weight: 0.2 kg

Dimensions: Ø73, 1½” BSP (tolerance ± 1mm)

Including adjustable screw on nutø

Laboratoorne segisti , F-150mm, WPH/WPC (15281009)

Broen Lab 25360011039-52B

LAB segisti, F-150mm, WPH/WPC (15281009) – Broen Lab

Tehniline laborisegisti koos BALLOFIX® kuulkraaniga

Tehnilised andmed

• Integreeritud kraan: BALLOFIX® kuulkraan

• Käepide: Metallist, kaetud BROEN POLYCOAT pulbervärviga
  – märgistus vastavalt EN13792 (meediumi tüüp)

• Väljalaskeotsik: Täielikult pöörlev

• Voolikuliitmik: Eemaldatav metallist

• Mehhanism: Keraamiline

• Avamine/sulgemine: 180° pööratav (käeliigutusega kang 90°)

• Temperatuurivahemik: 0–90°C

• Maksimaalne töörõhk: 10 bar / 147 psi

• Katsesurve: 1 × töörõhk

• Kaal: 3 kg

---

Meediumiga kokkupuutuvad materjalid

• Metallid: Messing

• Plastid: POM, PTFE, SPX (vooliku osa)

• Tihendid: EPDM

• Määrdeaine: Silikoonipõhine

• Keraamika: Al2O3 96%

• Joodis: DIN L-Ag55:Sn

---

Tellimisteave

Standardkonfiguratsioonide puhul vaata tootekoode allpool.

---

Lisavalikud:

• Aerator (õhustaja)

• Fikseeritud voolikuliitmik

• Integreeritud tagasilöögiklapp

• Alternatiivne voolikuühendus või ilma voolikuta

• Muud sisendühendused (tüüp, pikkus)

• Riiklikud heakskiidud / sertifikaadid



S P E C I F I CATIONS

The fitting is delivered with an integrated BALLOFIX® ball valve.

Handle: Metal, BROEN POLYCOAT powder coated

with media indication according to EN13792

Spout: Full swivel action

Hose nozzle: Removable metal

Headwork: Ceramic

Opening/closing function: 180° (wrist action lever: 90°)

Temperature range: 0-90°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 3 kg

MATERIALS WITH MEDIA CONTACT

Metals: Brass

Plastics: POM, PTFE, SPX (hose)

Sealing: EPDM

Lubricant: Silicone based

Ceramics: Al2O3 96%

Solder: DIN L-Ag55:Sn

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- aerator

- fixed hose nozzle

- integrated non-return valve

- alternative hose inlet connection / without a hose

- other inlet options (type, length)

- national approvals



BROEN-LAB fully recirculating fittings ensure constant fresh

water with no dead legs even when the point-of-use valve is in closed position.

The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.

SPECIFICATIONS

Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792

Hose nozzle: Removable plastic

Headwork: Diaphragm type

Opening/closing function: 1 1/2 x 360°

Temperature range: 0-65°C

Max. working pressure: 10 bar / 147 psi

Test pressure: 1 x working pressure

Weight: 1.8 kg

MATERIALS WITH MEDIA CONTACT

Diaphragm: PTFE

Plastics: PP, PP-n, PVDF

Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item

numbers below.

Other options:

- also available in ABS (1, 11/4 , 11/2)
