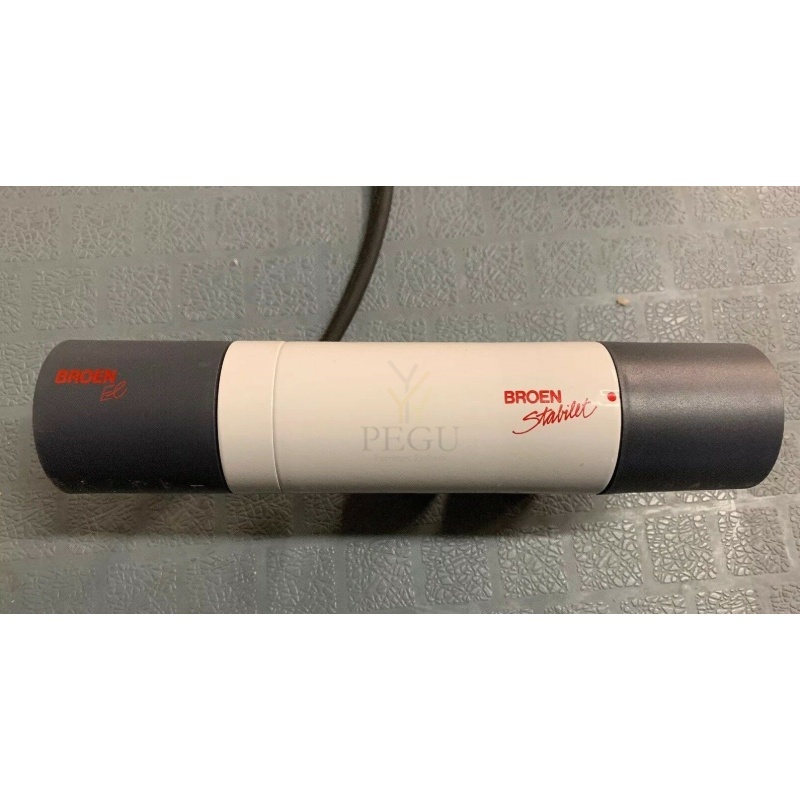

Broen Stabilet elektroonilise juhtmedega termostaat
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Broen Stabilet elektroonilise juhtmedega termostaat
PRINCIPLE SKETCH STABILET® EL / STABILINE® EL
1. Outlet including infrared sensor. Reacts when an object is in front of the spout.
2. Electronic box including transformer from mains to 12V DC.
3. STABILET® EL or STABILINE® EL valve. SPECIFICATIONS, ELECTRONIC BOX Mains voltage: 220V, 50 Hz phase, neutral and earth. Other voltage on request Operating voltage: 12V DC. Short circuit safety transformer Power consumption: Idling: 3 W. / Working: 3.5 W Built-in control of max. flow time of 45 sec Adjustable operating distance, min. 5 cm, max. 50 cm Waterproof plastic box and cable entries, IP 65 Cable length: From electronic box to STABILET EL®/ STABILINE EL®: 100 cm From electronic box to sensor: (spout)100 cm Screws and plugs included
Failid
8 l/min
Free-standing eye wash station
Ref. 9201
Free-standing eye wash station with manual and pedal control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm, green powder-coated finish.
2 eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
1/4-turn, nickel-plated brass valves open and close quickly.
Water flow is activated by hand or foot control. The eye wash will continue to operate when the hand or foot control is released. The flow stops when the hand control is pulled towards the user or the foot pedal is raised.
Flow rate 20 lpm at 3 bar.
Aerators with stainless steel double filters.
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish.
Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a triangular brass plate (screws not included.)
Supplied with identification sign for first aid equipment: "Eye Wash".
TECHNICAL FEATURES
Free-standing eye wash station
Ref. 9201
| Height | 1050mm |
|---|---|
| Depth | 500mm |
| Flow rate | 20 lpm |
| Finish | Epoxy |
Thermostatic mixing valve, eye- and body shower, 28 mm comp.
Pingipealne kaheventiiliga kraan U-kujulise sambaga
Tehnilised andmed
-
Käepide: Polüpropüleen, meediumi märgistusega vastavalt standardile EN13792
-
Voolikuliitmik: Fikseeritud polüpropüleen (käsitsi keeratav, keere: isane M19x1)
-
Mehhanism: Kummitihend (käeliigutusega kang: keraamiline)
-
Avamine/sulgemine: 2 × 360° pööratav (käeliigutusega kang: 90°)
-
Temperatuuri vahemik: 0–65°C
-
Maksimaalne töörõhk: 10 bar / 147 psi
-
Katsesurve: 1 × töörõhk
-
Kaal: 2,5 kg
Meediumiga kokkupuutuvad materjalid
-
Metallid: Messing
-
Plastid: PP (polüpropüleen)
-
Tihendid: EPDM
-
Määrdeaine: Silikoonipõhine
-
Keraamika: Al2O3 96% (ainult käeliigutusega kang)
Specifications
Handle: Polypropylene, with media indication according to EN13792 Hose nozzle: Fixed Polypropylene (can be unscrewed by hand, thread: male M19x1)
Headwork: Rubber (wrist action lever: ceramic)
Opening/closing function: 2 x 360° (wrist action lever: 90°) Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 2.5 kg
Materials with media contact
Metals: Brass
Plastics: PP
Sealing: EPDM
Lubricant: Silicone based
Ceramics: Al2O3 96% (wrist action lever only)
