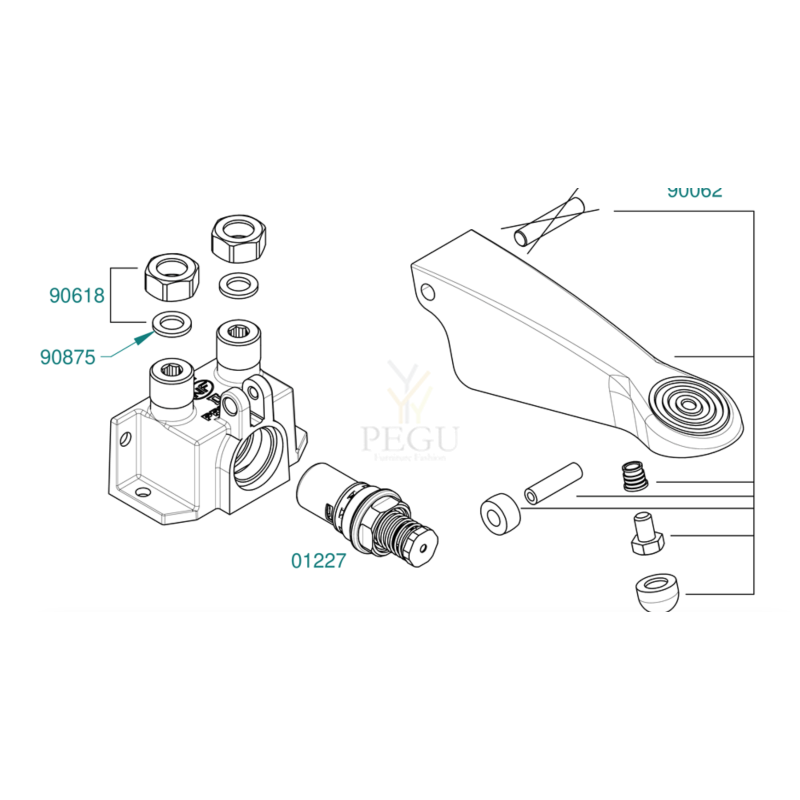

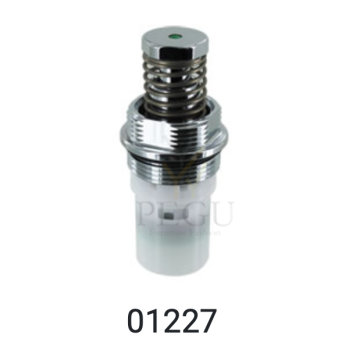

Cartridge for Presto pedaalventiil SOL 520 - 4 to 7 sec 01227
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädala
Cartridge for Presto pedaalventiil SOL 520 - 4 to 7 sec
01227
Cartridge for Presto pedaalventiil SOL 520 - 4 to 7 sec
Pedaal ventiil, kraan külma/eelsegatud veele SOL520 PRESTO
23614
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 3 to 5 seconds
> Operation : Foot-operated activation through pedal
> Hydraulic supply : Inlet M G 1/2"(15x21) - Cold or premixed water
> Material and colour finish : Brass body and components with molded chrome treatment Technical polymer
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Delivered with : 1 Gasket nut 1 Coupling nut 1 Nut for 12x14mm tube Instruction manual
> Standards & approvals : Acoustic class II Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
