Delabie 2 x Bumper valamule CANAL

Tootekood: DE-100209
Kaubamärk:
Ühik: kompl
Tarneaeg: 14-21 päeva
Hind:
55,92 €
Kuumakse alates: 4,77 €
Kogus: - +

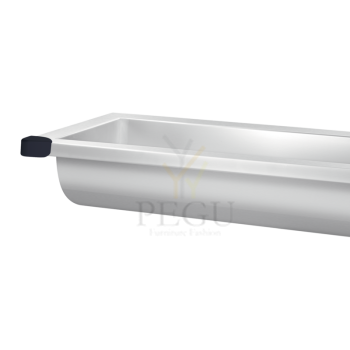

Protective corner
Ref. 100209

Adhesive protective corners supplied with double-sided adhesive tape.
Made from elastomer plastic.
Sold in packs of 2.
Grey, RAL no. 7015.

Failid

Sarnased tooted

Kollektiivne pissuaari renn 2400 mm roostevabast terasest

Tootekood: PURM-2400 ,   Tarneaeg: 5-6 nädalad
2202,10 € (5%)
2318,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
375,00 €

RMO 02



automatic washing system for wellingtons

RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.

Package contents

  • body of the washing machine
  • removable grid
  • electronics with photocell
  • three rotary brushes
  • jerican holder
  • priming hose
  • adjustable supporting legs
  • central stop button
Radius of sensor 0,7 m
Water inlet G 1/2“
Water pressure 0,1 – 1,0 MPa
Outlet G 6/4”
Electricity protection IP 55
Power supply 230 V, 50 Hz
Power requirement 370 W
Water temperature max. 42°C
Weight 95 kg
  • Set up water inlet as per picture
  • Set up outlet G 6/4” via effluvial cover
  • Set up cable for power supply – 230 V, 50 Hz



Tootekood: AZP-RMO 02 ,   Tarneaeg: 3-5 nädalat
16293,00 €

Drinking fountain in stainless steel 18/10 for wall mounting. Supplied with supporting bracket, grated waste, wall panel and water bubbler.

Tootekood: I-ED2-0DF ,   Tarneaeg: 14-21 päeva
537,00 €

Joogifontään AFO04 seinale mehaaniline R/V teras AISI316(basseinile)

AFO 04

suspension drinking fountain

AFO 04 is a stainless-steel drinking fountain of a modern design. It is manufactured with a double surface finish: matt bowl (blasted with ballotini) and brushed casing. Thanks to its interesting appearance, it particularly suits public spaces, such as sports facilities, parks, squares, business centres, fitness and wellness centres, but also schools and kindergartens.

Similarly to AFO 01, the drinking fountain is operated with a push valve. Water is flowing while the valve is pushed and for a preset time after its release, in which way the nozzle is rinsed.

The water inlet is through a flexible hose; siphon trap is made of a flexible coupling. The flexible design of the water inlet and outlet enables variable and trouble-free connection of the fountain as well as its simple dismounting.

The AFO 04 drinking fountain is made from stainless steel of the AISI 304 class; the AFO 04.CL drinking fountain is made from steel of the AISI 316 class.

Package contents

  • stainless steel casing
  • press valve
  • corner valve with filter
  • fixing bar
  • siphon
  • connecting hose
  • anchoring material
Water inlet G 1/2"
Water pressure 2 - 6 Bar (recommended 3 Bar)
Outlet d = 40 mm
Inner dimension of the fountain d = 245 mm
Weight 4 kg
  • Set-up water inlet - pipe G1/2“.
  • Set-up drainage d = 40 mm.




Tootekood: AZP-AFO04.CL ,   Tarneaeg: 3-4 nädalad
1226,00 €
