Delabie Basic-ECO lift-up dušiiste SUUR jalaga alumiinium valge
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
"Minu maitsed on lihtsad: parimaga jään kergesti rahule."

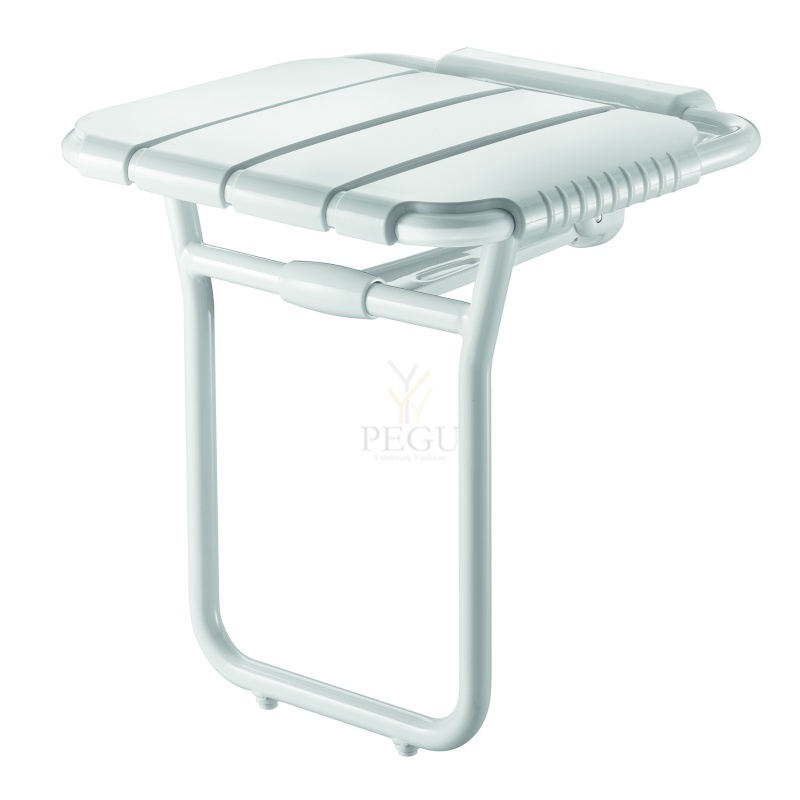

Lift-up shower seat with ALU leg- Large model
Ref. 510410
Lift-up ALU shower seat with leg, for people with reduced mobility.
Large model.
Large plastic slats, comfortable and easy to maintain.
Folding leg guided by an articulated arm.
Structure made from white aluminium tube Ø 25mm x 2mm.
Concealed fixings.
Dimensions: 430 x 465 x 480mm.
Folded dimensions: 82 x 565mm .
Leg height can be adjusted up to 8mm.
Ergonomic non-slip side grips.
Seat height: 480mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
CE marked.
TECHNICAL FEATURES
Lift-up shower seat with ALU leg- Large model
Ref. 510410
| Height | 480mm |
|---|---|
| Depth | 430mm |
| Width | 465mm |
| Finish | White powder-coated aluminium |
Failid
ALU shower stool
Ref. 510418
ALU lift-up shower stool for people with reduced mobility.
Large plastic slats are comfortable and easy to maintain.
Structure made from white aluminium tube Ø 25mm x 2mm.
Dimensions: 400 x 360 x 480mm.
Seat height: 480mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Plastic protective feet.
TECHNICAL FEATURES
ALU shower stool
Ref. 510418
| Height | 480mm |
|---|---|
| Depth | 400mm |
| Width | 360mm |
| Finish | White powder-coated aluminium |
DESCRIPTION
Lift-up shower seat, with ALU leg
Ref. 510400
ALU lift-up shower seat with leg, for people with reduced mobility.
Large plastic slats, comfortable and easy to maintain.
Folding leg guided by an articulated arm.
Structure made from white aluminium tube Ø 25mm x 2mm.
Concealed fixings.
Dimensions: 407 x 360 x 480mm.
Folded dimensions: 82 x 545mm.
Seat height: 480mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
CE marked.
TECHNICAL FEATURES
Lift-up shower seat, with ALU leg
Ref. 510400
| Height | 480mm |
|---|---|
| Depth | 407mm |
| Width | 360mm |
| Finish | White powder-coated aluminium |
satiin R/V teras
Normbau Inox Care inva käepide 2053040 L = 400mm
Inox Care Grab bar/Towel holder 2053040, c/c = 400mm
c/c = 400mm,
made of stainless steel, material No. 1.4301 (A2, AISI 304), 32mm dia., brushed finish, 70mm dia., steel cored roses, concealed fixing. Rose inners with compensation of wall diff erences.
Maximum loading permitted: 175 kgs.
Supplied with 6mm dia x 70mm stainless Torx screws and plugs for solid masonry.
Normbau Inox Care inva käepide duši hoidikuga 2062240, 1100 x 1100 x 1200mm, vasak
Inox Care Shower handrail with showerhead holder 2062240, 1100 x 1100 x 1200mm, left hand
made of stainless steel, material No. 1.4301 (A2, AISI 304), brushed finish, self-adjusting shower head NY.BRH 91. 32, made of Nylon, shower head available in NORMBAU colour dark grey 018, easy adjustment to any height and angle, shower head holder suitable for various hand shower heads, with multi-purpose side hook, with stainless steel roses 70mm dia. for concealed screw fixing, rose inners with compensation of wall differences, maximum loading permitted: 175 kgs.
Supplied with 6mm dia x 70mm stainless Torx screws and plugs for solid masonry.
Suitable for NORMBAU suspendable shower seats 0847 710, 0847 714, 0847 910, 0847 914.
Normbau Verso Care lift-up dušiiste põranda jalaga, 412 x 446mm
Verso Care lift-up shower seat with floor support, 412 x 446mm
Verso Care Shower seat with floor support,
412 x 446 x 482 (128)mm
with positively driven floor support, for seat height 470-500mm, wall bracket made of stainless steel, scratch-resistant powder coating, support bracket made of aluminium, scratch-resistant powder coating, Aluminum floor support, scratch-resistant, seat made of thermoplastic polypropylene, ergonomically visible seat with rounded outer edges, available in NORMBAU colors 018 and 019, with adjustable brake, locked in the upright position, easy construction, maximum loading permitted: 150 kgs, tested, respond TÜV requirement (in accordance
with DIN 18040).
The fixing set should be ordered separately to suit the type of wall.
Normbau Inox Care Lift-up inva käepide ülestüstetav 2050070 vario, suspendable, L = 900mm, siena kinnitusega
Inox Care Lift-up support rail 2050070 vario, suspendable, L = 900mm, with base plate
Lift up support rail vario with base plate,
length 900mm, 32mm dia.,
made of stainless steel, material No. 1.4301 (A2 AISI 304), brushed finish, left or right hand application, space required in vertical position 193mm from wall, with adjustable brake, easy installation by mounting to a base plate.
Base plate, made of stainless steel for balanced wall mounting, concealed screw fixing, supplied without fixing screws and plugs, conform to German standard DIN 18040 1-2, maximum loading permitted: 125 kgs.
850mm length conform to German standard DIN 18040-1/2, Austrian standard ÖNORM B1600.
