Delabie Be-line 2-seina invatugi d35MM 695x695mm antratsiit aluminim

Tootekood: DE-511941C
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
246,00 €
Kogus: - +
   - või -

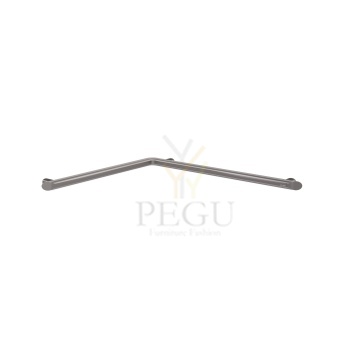

Be-line corner grab bar 2 walls, anthracite
Ref. 511941C

Be-Line corner grab bar Ø 35mm for WCs, showers or baths.
Use as a shower rail and to support the user in an upright position.
Helps and secures entry and movement in the shower also with getting in and out of the bath.
Helps with the transfer from a wheelchair to the toilet seat.

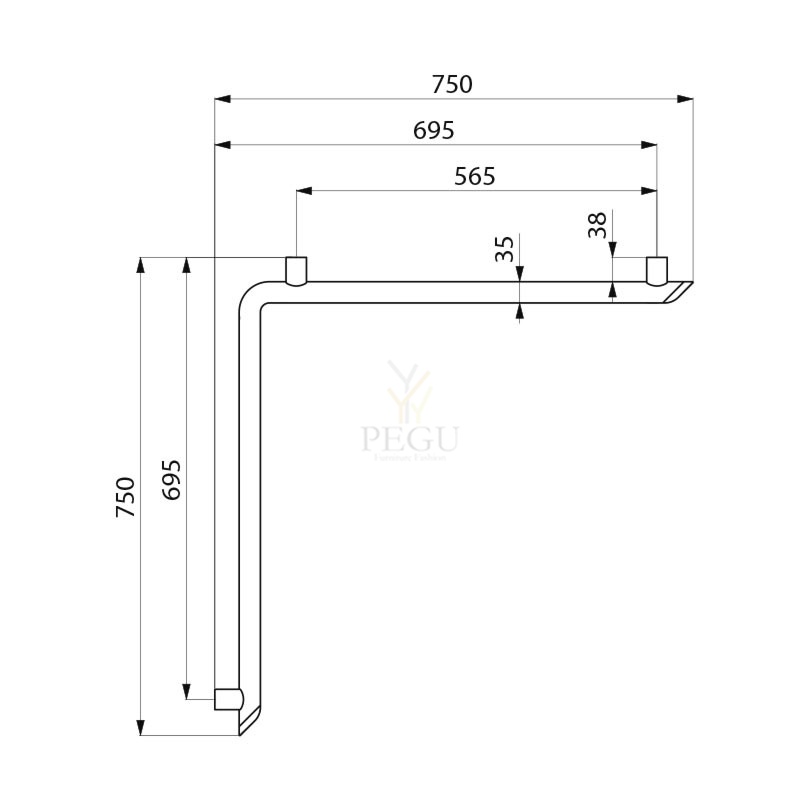

Dimensions: 695 x 695mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Technical features

Be-line corner grab bar 2 walls, anthracite
Ref. 511941C

Length 695mm
Width 695mm
Width to the wall 38mm
Thickness 3mm
Finish Metallised anthracite powder-coated aluminium
Kokku sobivad tooted

Metallised anthracite shelf for grab bars for showers
Ref. 511922C

Metallised anthracite shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.

TECHNICAL FEATURES

Metallised anthracite shelf for grab bars for showers
Ref. 511922C

Height 71mm
Depth 70mm
Length 165mm
Tootekood: DE-511922C ,   Tarneaeg: 14-21 päeva
35,00 €

White shelf for grab bars for showers
Ref. 511922W

White shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.

TECHNICAL FEATURES

White shelf for grab bars for showers
Ref. 511922W

Height 71mm
Depth 70mm
Length 165mm
Tootekood: DE-511922W ,   Tarneaeg: 14-21 päeva
35,00 €
Sarnased tooted

Segisti valamule , pika kangiga

kroom

Tootekood: IDR-02475 ,   Tarneaeg: 7 päeva
116,00 €

AUZ 08 INV is a stainless-steel WC in matt design for the disabled. It is a stainless-steel toilet to stand on the floor at the wall. The drain is directed backwards (the bottom drain version AUZ 02 INV). The closet is based on the standard AUZ 08, which is heightened and lengthened to fulfil the directive regarding products for disabled persons. To increase the user comfort, the seating part is provided with a seat from hardened plastic. The closet includes a removable backrest recommended by the League for the rights of the wheelchair bound.



The standing WC is suitable for places where the common closet cannot be attached to the side wall, because of a thin bearing particle, for example.



It is suitable to supplement the closet with an automatic pressure-water flushing device with delayed flushing AUZ 3 INV (suitable for the disabled) or any flushing device with a cistern.

Basic technical information
Water inlet: d= 34 - 50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 27 kg

Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material
  • Stainless-steel backrest
Tootekood: AZP-AUZ 08 INV ,   Tarneaeg: 3-4 nädalad
1269,90 € (10%)
1411,00 €

Nova2 Care


Height: 145mm
Width: 490mm
Depth: 380mm
Weight: 20 kg.
Design: Bønnelycke mdd
Tootekood: FRON1963 ,   Tarneaeg: 14-21 päeva
512,05 € (5%)
539,00 €
  1. Components y materials

    •   FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.

    •   WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.

    •   FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.

    •   UNLOCK HANDLE: made of black thermoplastic.

BG0089CS Satin finish

Technical specifications

Dimensions

Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter

700 x 835 x 100 mm

Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm

Tootekood: MBG0089CS ,   Tarneaeg: 7 -14 päeva
415,15 € (5%)
437,00 €

General description

L454 x L869 mm



  •   Grab bar, 90o angle to the right (BAD090C & BAD090CS) or to the left (BAI090C & BAI090CS) with snap flange cover, made of stainless steel AISI 304, for showers, baths and changing rooms.

  •   These grab bars are very useful and highly recommended to achieve barrier-free accessibility both residential and public spaces.

  •   Concealed screw mounting flanges.

  •   Highest durability and rusting resistance.

  •   Mounting hardware for brick wall is included for easy installation.

    Components and materials

  •   BAD090C & BAI090C: AISI 304 stainless steel, bright finish.

  •   BAD090CS & BAI090CS: AISI 304 stainless steel, satin finish.

  •   TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along

    the bends.

  •   CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes

    for wall mounting.

  •   SNAP FLANGE COVER: three units made of stainless steel AISI 304, 1.5 mm thick and Ø 82 mm. Each cover snaps over mounting

flange to conceal mounting screws.

Tootekood: MBAI090CS ,   Tarneaeg: 14 -21 päeva
124,00 €
