Delabie Be-line ilukate invatoe kinnitusele Antracite aluminim (seinakinnitusega)
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 14-21 päeva
✅ PEGU.ee-s valime ainult seda, mida on meeldiv omada kodus.
Nutikad lahendused, kaunis disain ja tõestatud kvaliteet.
Kui valid meie juurest, valid kindlustunde.

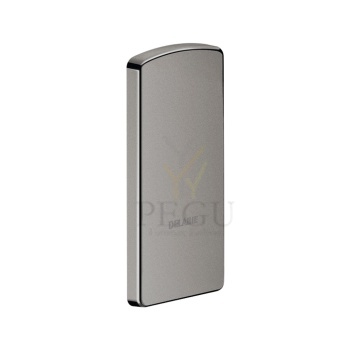

Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
Be-Line metallised anthracite cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Metallised anthracite |
Failid
Käetugi 845mm sirge
R/V teras AISI304
d 32mm
toru paksus 1,5mm
Pelavajutav äärikukate d 81mm
-
Components y materials
-
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
-
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
-
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
-
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
material:AISI 304 stainless steel | finish:Satin
90º angled grab bar
Solutions with several ergonomics and functionalities and with the possibility of having different materials and finishes. Mediclinics offers professionals a wide range of grab bars for toilets to help persons with reduced mobility use the facilities. Within this range, two product lines are available:
Medinox Series
State of the art design, high durability and easy to maintain. The process used for bending the grab bars guarantees uniformity in the diameter of its curves. Built using AISI 304 stainless steel with a bright and satin finish.
Mediepoxy Series
Solutions manufactured with a corrosion resistant treatment, ideal for very harsh environments, with a low need for maintenance and long durability. The grab bars for toilets are made of steel with an epoxy finish.
Mediclinics grab bars for toilets include a snap flange cover for installation out of sight, offering a perfect visual finish and allowing to be easily blended in with the decoration of the room.
Apart from the grab bars for toilet, Mediclinics provides shower seats made of AISI 304 stainless steel, which are robust, safe and suitable for installation in harsh environments.
General description
-
Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.
-
With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.
-
Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.
-
Highest durability and rusting resistance.
-
Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.
-
These grab bars are supplied with a kit to fix the bar to a brick wall.
Components and materials
-
BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
Be-line lift-up shower seat
Ref. 511920W
Be-line removable lift-up shower seat for people with reduced mobility.
Large model.
Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid, reinforced seat made from high strength polymer which can be installed, without a supporting leg, on any suitable wall.
Non-slip surface.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Solid aluminium mounting bracket.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 455 x 450 x 90mm.
Folded dimensions: 83 x 470mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
