Delabie Be-line invatugi d35MM L900mm matt valge aluminim
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
PEGU09 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!

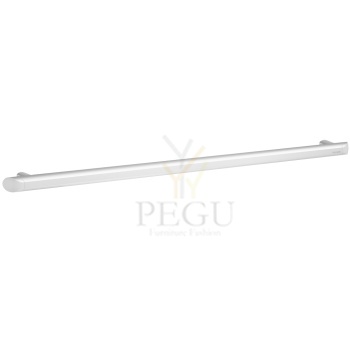

Be-Line® matte white straight grab bar Ø 35mm, L. 900mm
Ref. 511909W
Be-Line® grab bar Ø 35mm, for people with reduced mobility.

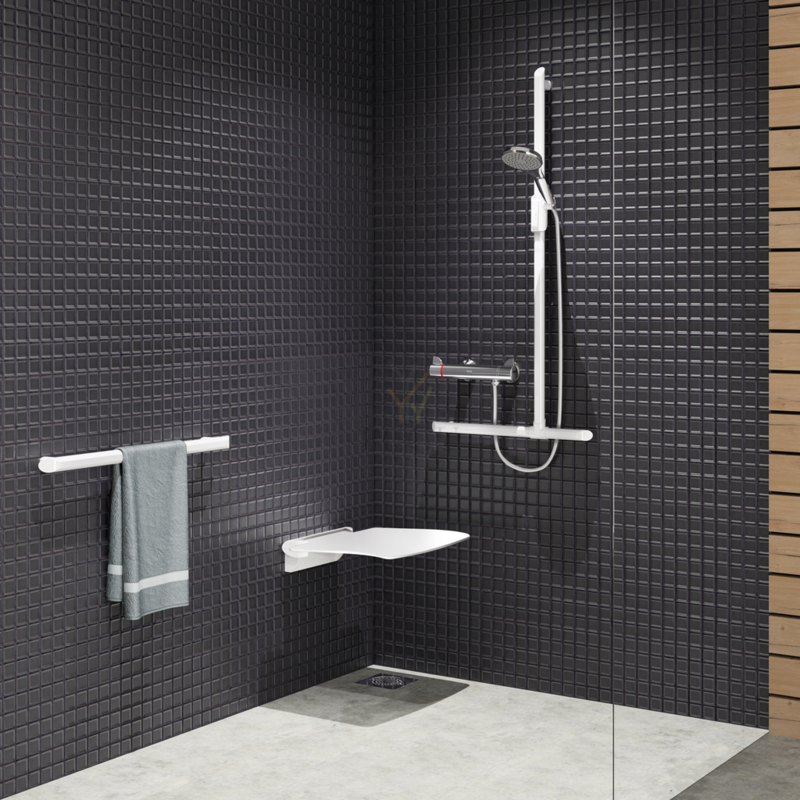

For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall:minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
900mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-Line® matte white straight grab bar Ø 35mm, L. 900mm
Ref. 511909W
| Length | 900mm |
|---|---|
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Matte white powder-coated aluminium |
Metallised anthracite shelf for grab bars for showers
Ref. 511922C
Metallised anthracite shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.
TECHNICAL FEATURES
Metallised anthracite shelf for grab bars for showers
Ref. 511922C
| Height | 71mm |
|---|---|
| Depth | 70mm |
| Length | 165mm |
White shelf for grab bars for showers
Ref. 511922W
White shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.
TECHNICAL FEATURES
White shelf for grab bars for showers
Ref. 511922W
| Height | 71mm |
|---|---|
| Depth | 70mm |
| Length | 165mm |
Invakäepide
Keraamiline tööorgan
121,00 €
Invakäepide
Keraamiline tööorgan
151,00 €
-
Components y materials
-
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
-
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
-
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
-
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
437,00 €
General description
-
Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
-
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
-
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
-
Well suited for keeping bathrooms and public enclosures barrier-free.
-
Highest durability and great resistance to rusting.
-
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
-
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
-
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
-
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
-
