Delabie Be-line invatugi dušilift d35MM L1050mm Antracite aluminim
Tootekoodid ja tehniline info on kättesaadavad projekti või spetsiaalse päringu korral.
Ekspert aitab valida sobivaima lahenduse nii koju kui objekti jaoks.
Soovitame jagada tootelehte, mitte ainult koodi – see välistab segaduse.
Küsi julgelt: info@pegu.ee
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ

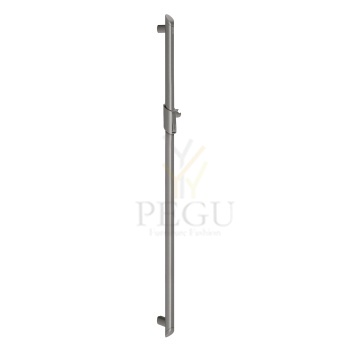

Be-line® anthracite shower grab bar with sliding shower head holder
Ref. 511946C
Be-line® straight bar Ø 35mm with sliding shower head holder for people with reduced mobility.
Can be used as a vertical grab bar and a shower head rail for showers or baths.
Metallised anthracite aluminium sliding shower head holder with ergonomic locking ring.
Possible to add a sliding soap dish (order separately).
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the barand the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Height: 1,050mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-line® anthracite shower grab bar with sliding shower head holder
Ref. 511946C
| Height | 1,050mm |
|---|---|
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Metallised anthracite powder-coated aluminium |
Failid
Käetugi 537mm sirge
teras valge epoksükate
d 32mm
toru paksus 1,5mm
Pelavajutav äärikukate d 81mm
Käetugi 695mm sirge, harjatud R/V teras
Käetugi 695mm sirge
R/V teras AISI304
d 32mm
toru paksus 1,5mm
Pelavajutav äärikukate d 81mm
600mm satii R/V teras
Nova2 Care
-
Components y materials
-
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
-
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
-
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
-
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
