Delabie Be-line T-invatugi T d35MM 1130x500mm Antracite aluminim
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
TALV2022 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!

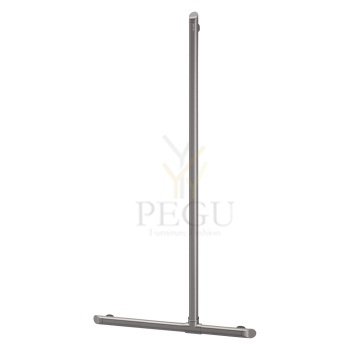

Be-line T-shaped shower grab bar with sliding vertical bar
Ref. 511944C
Be-line T-shaped grab bar Ø 35mm for showers with sliding vertical bar.
Use as a shower rail and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space(positioning of shower, depth of shower seat...).
Dimensions: 1,130 x 500mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with Ø 8 x 70mm stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-line T-shaped shower grab bar with sliding vertical bar
Ref. 511944C
| Height | 1,130mm |
|---|---|
| Length | 500mm |
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Metallised anthracite powder-coated aluminium |
Metallised anthracite shelf for grab bars for showers
Ref. 511922C
Metallised anthracite shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.
TECHNICAL FEATURES
Metallised anthracite shelf for grab bars for showers
Ref. 511922C
| Height | 71mm |
|---|---|
| Depth | 70mm |
| Length | 165mm |
White shelf for grab bars for showers
Ref. 511922W
White shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.
TECHNICAL FEATURES
White shelf for grab bars for showers
Ref. 511922W
| Height | 71mm |
|---|---|
| Depth | 70mm |
| Length | 165mm |
Termostaatsegistid
Termostaatsegisti Thermixa 300
- Artikli number 57503
- Viimistlused Kroom/must
- Standardfunktsioonid
- Keraamiline tööorgan.
- Põletuskaitsega
- Veesäästu funktsioon Eco-Klik.
- 1/2" ühendus käsiduši voolikule.
- Kummiaeraator – lihtne puhastada.
- Standardne tsentrite vahe 150 mm.
- Varustatud ilukatete ja ekstsentrikutega.
- Ümberlüliti.
Termostaatsegistid
Termostaatsegisti Thermixa 300
- Artikli number 57403
- Viimistlused Kroom/must
- Standardfunktsioonid
- Keraamiline tööorgan.
- Põletuskaitsega
- Veesäästu funktsioon Eco-Klik.
- 1/2" ühendus käsiduši voolikule.
- Standardne tsentrite vahe 150 mm.
- Varustatud ilukatete ja ekstsentrikutega.
General description
-
Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
-
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
-
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
-
Well suited for keeping bathrooms and public enclosures barrier-free.
-
Highest durability and great resistance to rusting.
-
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
-
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
-
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
-
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
-
General description
-
Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
-
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
-
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
-
Well suited for keeping bathrooms and public enclosures barrier-free.
-
Highest durability and great resistance to rusting.
-
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
-
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
-
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
-
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
-
