Delabie Be-line T-invatugi T d35MM 1130x500mm matt valge aluminim
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Lisainfo: info@pegu.ee
TALV2022 sisesta sooduskood ostukorvi lehel kupongi lahtrisse!

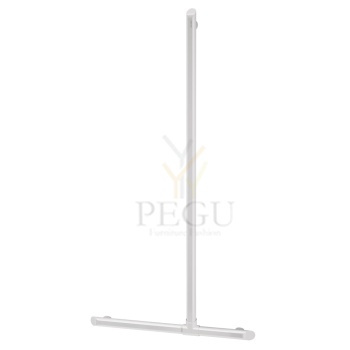

Be-line T-shaped shower grab bar with sliding vertical bar
Ref. 511944W
Be-line T-shaped grab bar Ø 35mm for showers with sliding vertical bar..
Use as a shower rail and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.

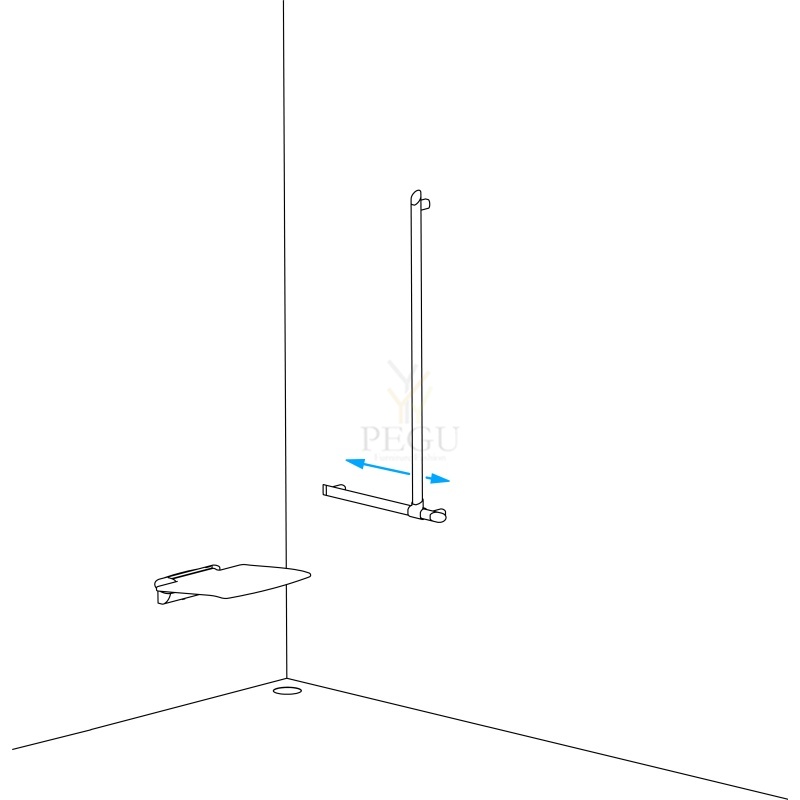

Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space(positioning of shower, depth of shower seat...).

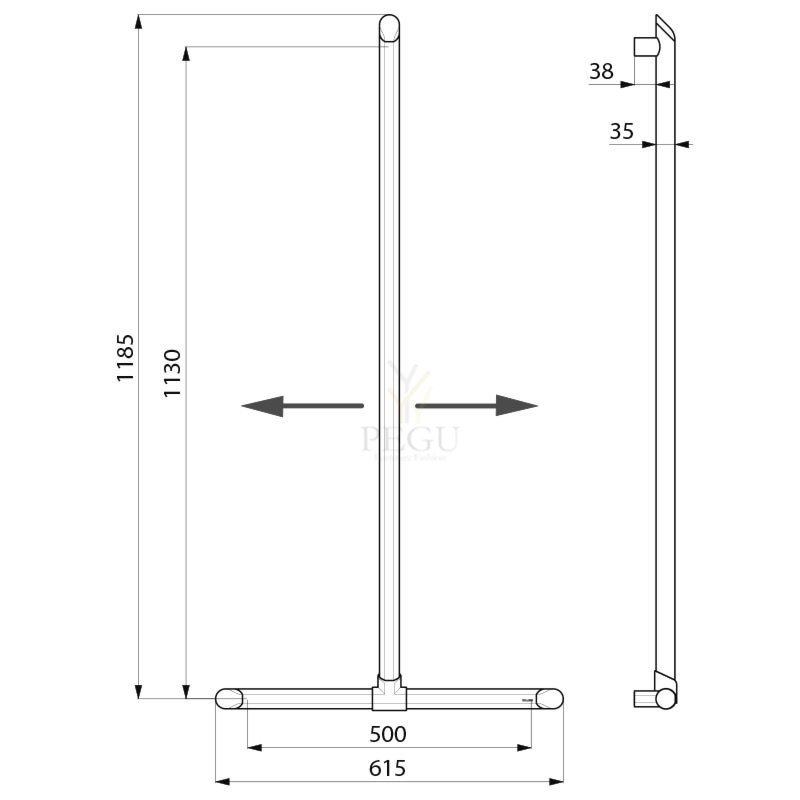

Dimensions: 1,130 x 500mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with Ø 8 x 70 mm stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-line T-shaped shower grab bar with sliding vertical bar
Ref. 511944W
| Height | 1,130mm |
|---|---|
| Length | 500mm |
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Matte white powder-coated aluminium |
Metallised anthracite shelf for grab bars for showers
Ref. 511922C
Metallised anthracite shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.
TECHNICAL FEATURES
Metallised anthracite shelf for grab bars for showers
Ref. 511922C
| Height | 71mm |
|---|---|
| Depth | 70mm |
| Length | 165mm |
White shelf for grab bars for showers
Ref. 511922W
White shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.
TECHNICAL FEATURES
White shelf for grab bars for showers
Ref. 511922W
| Height | 71mm |
|---|---|
| Depth | 70mm |
| Length | 165mm |
seinakinnitus plaat 90x250 mm
Pikkus 600mm
663,00 €
General description
-
Wall-floor grab bar, with three support points, made of a diameter of 32 mm AISI 304 stainless steel tube, bent in an "L" shape at 90o and with a 32mm diameter lateral arm, welded on the lower part of the grab bar and also bent at 90°.
-
With snap flange covers that conceal the installation screws, improving the aesthetics of the bars once installed on the wall.
-
These grab bars offer a great safety and comfort to the user, helping to make the bathroom much safer for the elderly or those with reduced
mobility. Models suitable for public use.
-
Well suited for keeping bathrooms and public enclosures barrier-free.
-
Highest durability and great resistance to rusting.
-
Optionally, these grab bars can be electrically isolated, installing the electrical isolation kit code KA0020.
-
Supplied with plugs and screws to fix the bar to a brick wall.
Components and materials
-
BSD020C: right hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSI020C: left hand grab bar made of AISI 304 stainless steel tube, bright finish.
-
BSD020CS: right hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
BSI020CS: left hand grab bar made of AISI 304 stainless steel tube, satin finish.
-
TUBING: made of a 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screw holes for wall mounting.
-
SNAP FLANGE COVER: three units made of AISI 304 stainless steel, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
-
General description
L454 x L869 mm
-
Grab bar, 90o angle to the right (BAD090C & BAD090CS) or to the left (BAI090C & BAI090CS) with snap flange cover, made of stainless steel AISI 304, for showers, baths and changing rooms.
-
These grab bars are very useful and highly recommended to achieve barrier-free accessibility both residential and public spaces.
-
Concealed screw mounting flanges.
-
Highest durability and rusting resistance.
-
Mounting hardware for brick wall is included for easy installation.
Components and materials
-
BAD090C & BAI090C: AISI 304 stainless steel, bright finish.
-
BAD090CS & BAI090CS: AISI 304 stainless steel, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along
the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes
for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 1.5 mm thick and Ø 82 mm. Each cover snaps over mounting
flange to conceal mounting screws.
HOME series stool with anti-slipping legs
In resin and aluminium, corrosion resistant
Maximum load 120 kg
Wall mounted MINERALCAST PMR washbasin
Ref. 132306
Wall-mounted washbasin, 785 x 545 x 150mm.
With integral side grips, can be used to support user or as a towel rail.
Sleek and fluid lines.
MINERALCAST: a composite material consisting of natural minerals and polyester resin.
Suitable for use in public and commercial places and the healthcare sector.
Shallow washbasin ideal for people with reduced mobility.
Uniform, non-porous surface is easy to clean.
One-piece pressed washbasin, seam-free, for easy maintenance and better hygiene.
Warm to the touch.
With Ø 35mm central tap hole.
Without overflow.
Supplied with fixing elements.
White, RAL 9016.
Weight: 21.5 kg.
