Delabie dušialus 800x800mm h60mm roostevabast terasest

Tootekood: DE-150300
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
444,00 €
Kuumakse alates: 37,74 €
Kogus: - +
   - või -

DESCRIPTION

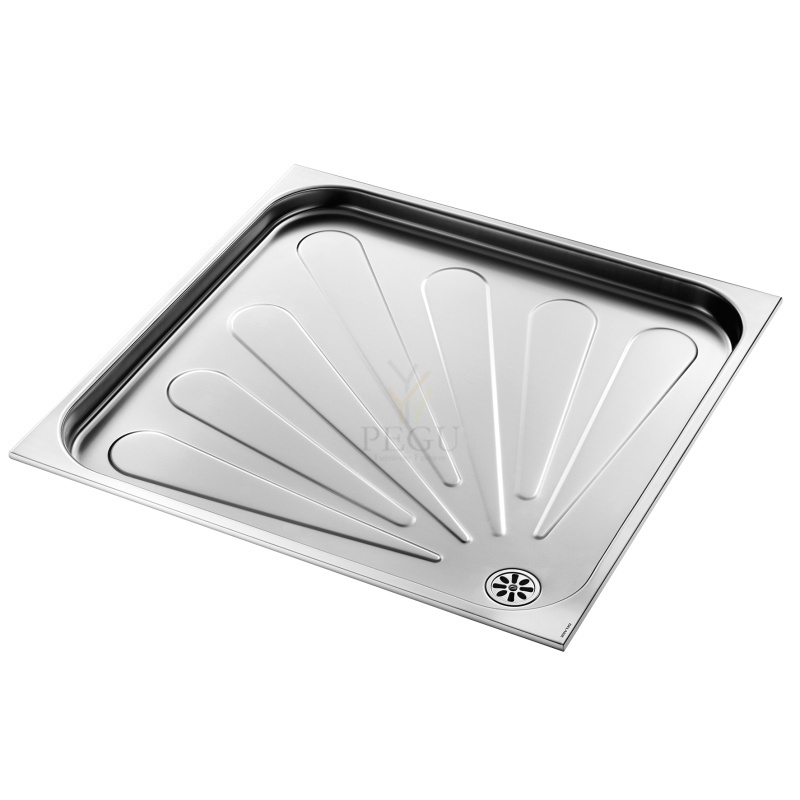

Recessed shower tray
Ref. 150300

Recessed shower tray, 800 x 800mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece pressed shower tray, seam-free for easy maintenanceand better hygiene.
Rounded internal corners for improved safety in the shower.
Drainage slope.
Supplied with 1 ½" waste.
Non-slip surface.
CE marked. Complies with European standard EN 14527.
Weight: 7kg.

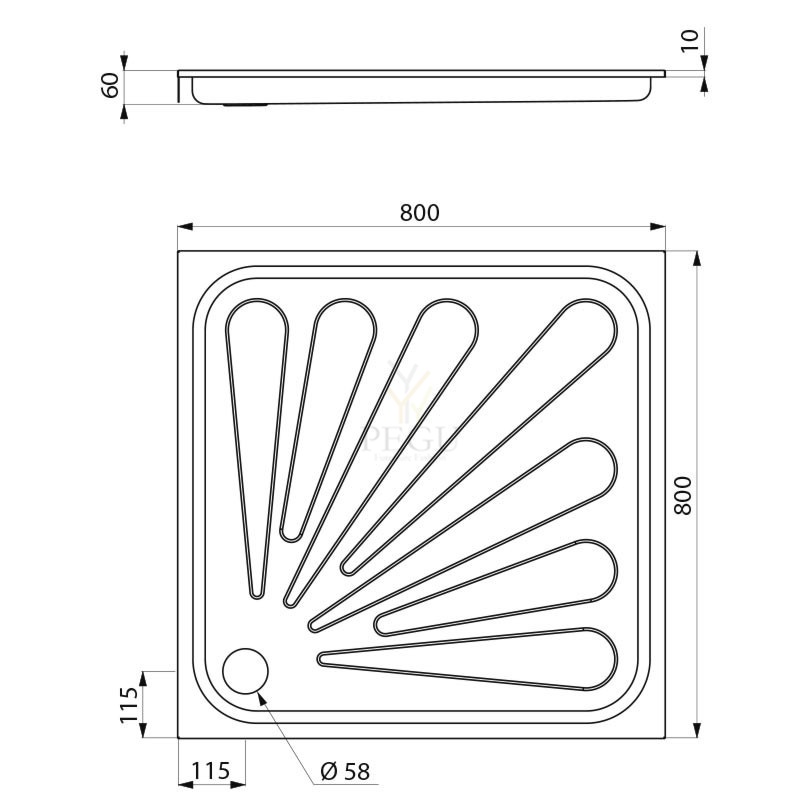

TECHNICAL FEATURES

Recessed shower tray
Ref. 150300

Depth 60mm
Length 800mm
Width 800mm
Thickness 1.2mm
Finish 304 polished satin stainless steel

Failid

Sarnased tooted



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
312,00 €

1092х383х80 мм

Tootekood: PURC-SEP ,   Tarneaeg: 14-30 päeva
570,00 €

automatic washing system for soles with rotary brushes - 230V, 50Hz



RMP 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections in the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above floor level. Large pieces of dirt are collected by a sieve, which can be easily cleaned. The sieve and brush can be taken out without using a tool.
The RMP 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.

Package contents

  • body of the washing machine
  • removable grid
  • electronics with photocell
  • rotary brush
  • hand brush
  • jerican holder
  • priming hose
  • adjustable supporting legs
  • central stop button



Radius of sensor 0,5 m
Water inlet G 1/2“
Water pressure 0,1 – 1,0 MPa
Outlet G 6/4”
Electricity protection IP 55
Power supply 230 V, 50 Hz
Power requirement 370 W
Water temperature max. 42°C
Weight 41 kg



  • Set up water inlet as per picture
  • Set up outlet G 6/4” via effluvial cover
  • Set up cable for power supply – 230 V, 50 Hz



Tootekood: AZP-RMP 02 ,   Tarneaeg: 3-5 nädalat
6906,00 €

Drinking fountain in stainless steel 18/10 for wall mounting. Supplied with supporting bracket, grated waste, wall panel and water bubbler.

Tootekood: I-ED2-0DF ,   Tarneaeg: 14-21 päeva
540,00 €

AFO 01 stainless steel wall-mounted drinking fountain

AFO 01 is a stainless steel wall-mounted drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 01 stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
AFO 01 is made of stainless steel AISI 304.
AFO 01.CL is made of stainless steel AISI 316 and is suitable into the areas with higher concentration of chlorine (e.g. swimming pools).
Sensor-controlled fountain possible made to order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • stainless steel sink with casing
  • press valve
  • corner valve with filter
  • flexible hose siphon
  • fixing bar
  • connecting hoses
  • anchoring material
Water inlet G 1/2"
Water pressure 0,2 – 0,6 MPa (recommended 0,3 MPa)
Outlet d = 40 mm
Inner dimension of the fountain d = 245 mm
Weight 4 kg



Tootekood: AZP-AFO01 ,   Tarneaeg: 3-4 nädalad
552,00 €
