Delabie dušialus PMR 800x800mm h30mm roostevabast terasest
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Müüja: PEGU OÜ
Olete leidnud õige toote – nüüd on aeg see enda omaks teha.
- ✔ Kvaliteetne toode kiiresti ja mugavalt kätte
- ✔ Turvaline ja läbipaistev ostuprotsess
- ✔ Meie meeskond hoolitseb iga detaili eest
Lisage toode ostukorvi ja jätkake tellimusega – nii on ta varsti juba teie juures!
PEGU.ee – targad valikud inimestele, kes hindavad stiili ja kvaliteeti.
DESCRIPTION

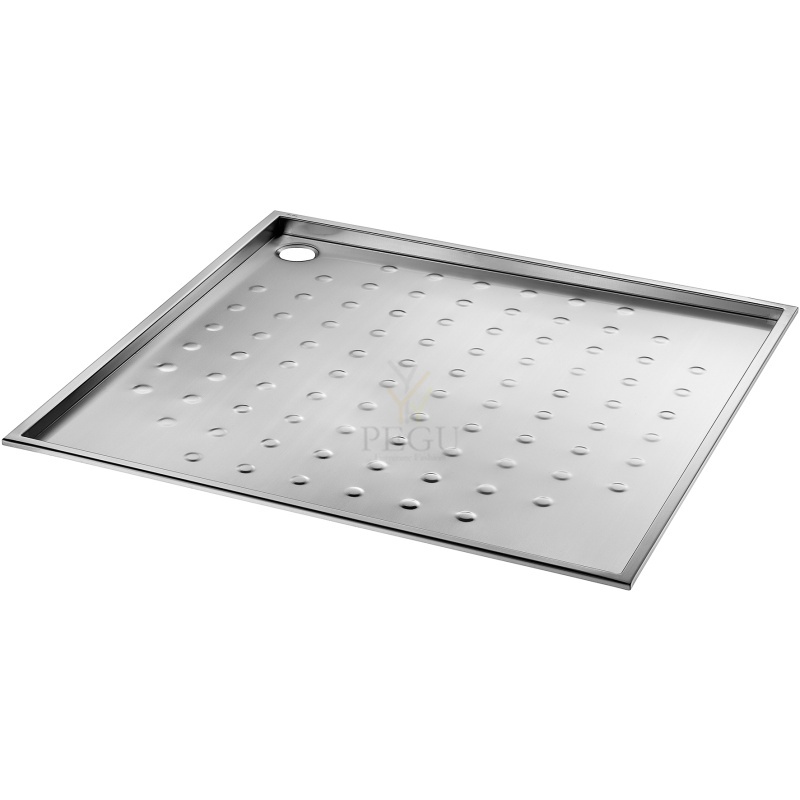

PMR recessed shower tray
Ref. 150500
Recessed shower tray, 800 x 800mm.
Suitable for people with reduced mobility: slimline shower tray.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Drainage slope.
Supplied with 1 ½" waste.
Non-slip surface.
CE marked. Complies with European standard EN 14527.
Weight: 8.5kg.

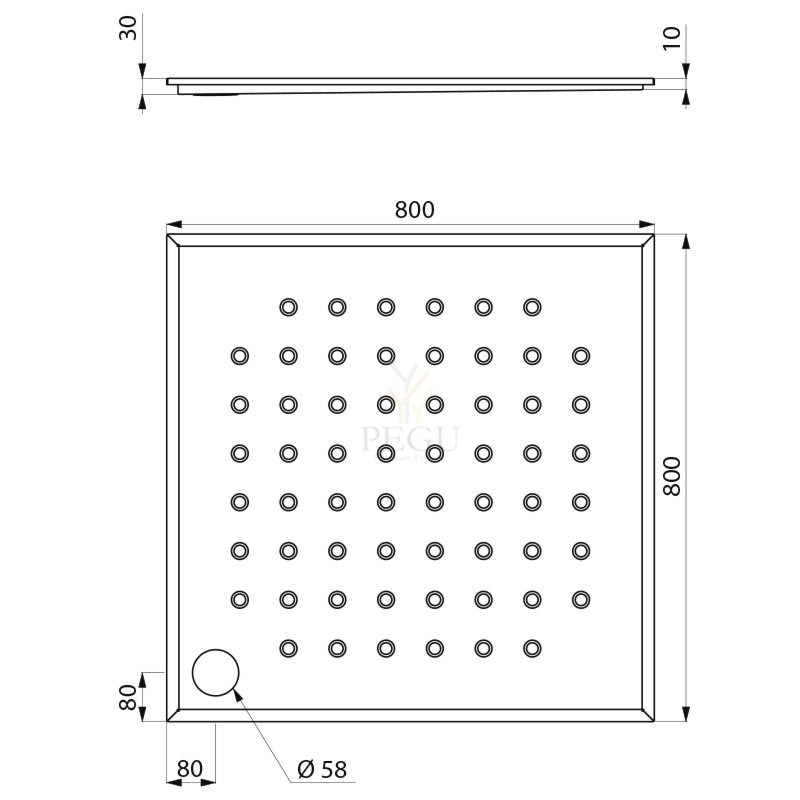

TECHNICAL FEATURES
PMR recessed shower tray
Ref. 150500
| Depth | 30mm |
|---|---|
| Length | 800mm |
| Width | 800mm |
| Thickness | 1.5mm |
| Finish | 304 polished satin stainless steel |
Failid
Koristajavalamu R/V teras 455x330, pritsmisplekiga+ämberrestiga
Characteristics
- stainless steel wall hung cleaner‘s sink
- with splash-back and grating
- overflow set
- waste output Ø 50 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
| Order number | 98010 |
| Code | SLVN 01 |
Характеристики
- stainless steel wall hung cleaner‘s sink
- with splash-back and grating
- overflow set
- waste output Ø 50 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
| Арт. № | 98010 |
| Название | SLVN 01 |
Valamu R/V terasest
Garaazi/koristusruumi jaoks
Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" grated waste, and reducer from 2" - 1 1/2".
Loputussüsteem pissuaarile aegreleega 230V/AC antivandaalne
SLP 01Z
Time-controlled flushing unit, 230 V AC
Characteristics
- vandal-proof
- time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
- adjustable flushing time 0,5 - 15,5 s, standard 5 s
- parameters adjustment by remote control SLD 04
- adjustable flushing interval 10 min - 3 days, standard 1 h
- after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
| Order number | 01011 |
| Code | SLP 01Z |
Supply specification
Technical information
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 40 l/min (inf. data)
Water inlet: male thread G 1“
Water outlet: male thread G 1“
Joogifontään seinale sensoriga R/V teras AISI304 12V/50Hz
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
