Delabie dušialus PMR 900x900mm h30mm roostevabast terasest

Tootekood: DE-150600
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21 päeva
Hind:
805,20 €
Kuumakse alates: 69,23 €
Kogus: - +

DESCRIPTION

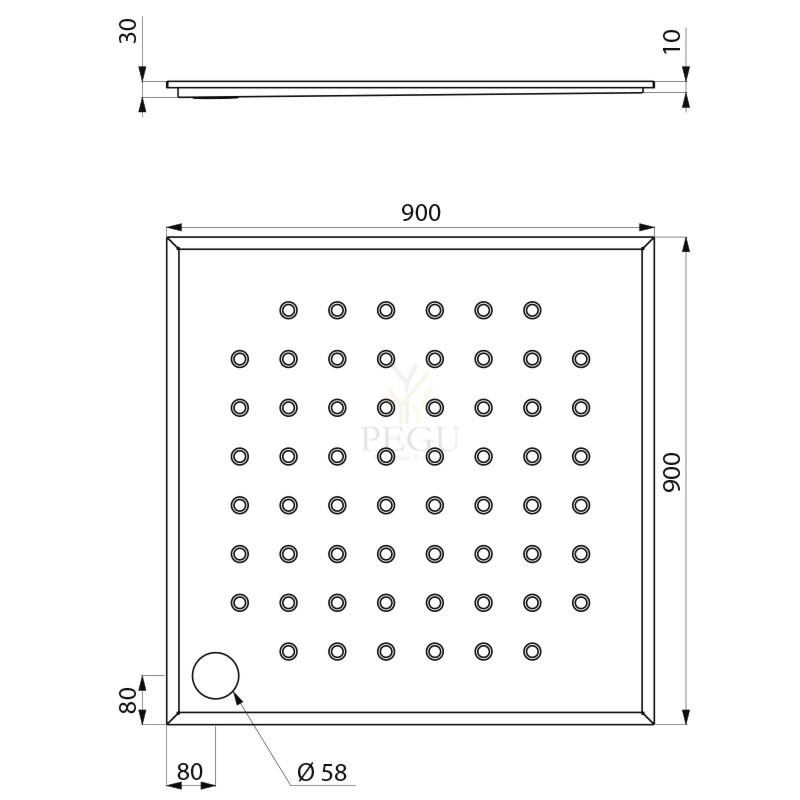

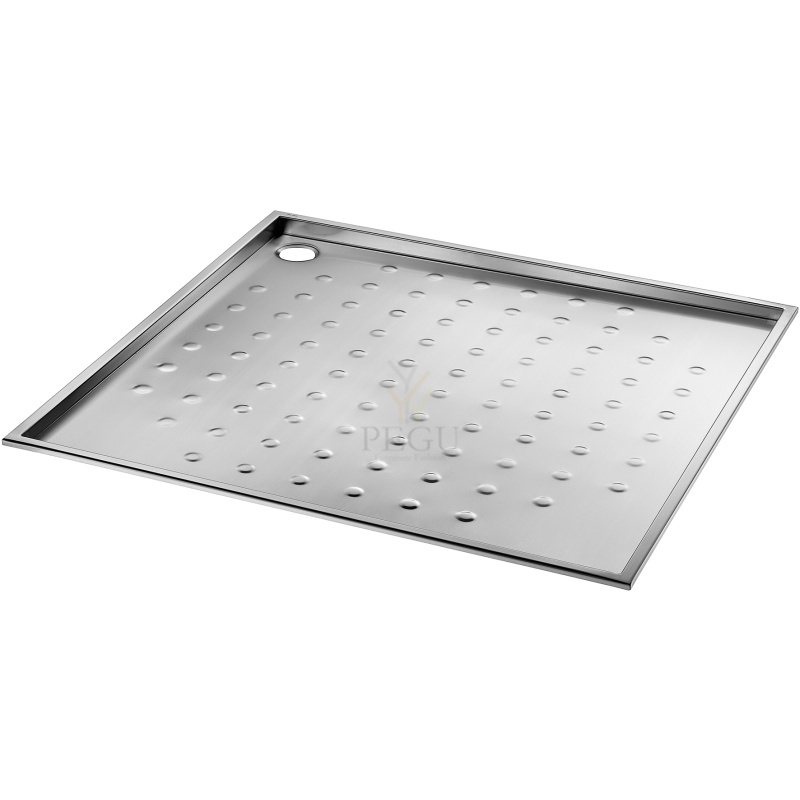

PMR recessed shower tray
Ref. 150600

Recessed shower tray, 900 x 900mm.
Suitable for people with reduced mobility: slimline shower tray.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
Drainage slope.
Supplied with 1 ½" waste.
Non-slip surface.
CE marked. Complies with European standard EN 14527.
Weight: 9.5kg.



TECHNICAL FEATURES

PMR recessed shower tray
Ref. 150600

Depth 30mm
Length 900mm
Width 900mm
Thickness 1.5mm
Finish 304 polished satin stainless steel

Failid

Sarnased tooted

Overall dimension in mm Ø174 x 235 Inlet dimension in mm 1.5" Outlet dimension in mm 1.5" Material AISI 304 Material thickness in mm 1.5 Gross weight in kg 2.50

Tootekood: I-SAND-02 ,   Tarneaeg: 3-4 nädalad
469,00 €

General

Size (mm): 560 x 420 x 199

Accessories

Included:
Extra equipment: Brackets

Mounting: Wall mount
Finish: Satin
Properties: Overflow
Tootekood: I-RS72STD + I-91008 ,   Tarneaeg: 14-21 päeva
360,00 €
WC poti raam loputuskastiga , antivandaalse R/V teras katega


BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Tootekood: AZP-BSAZ 5 ,   Tarneaeg: 3-4 nädalad
1055,00 €

DRINKING SYSTEM

  • Frost-free drinking system for cattle and horses
  • Fresh and clean water for the animals all year round
  • Without wiring or electricity
  • A minimum of maintenance
  • No concern about filling the drinking vessels
  • No concern about cleaning the drinking vessels

Automaatjootjad sobivad kasutamiseks nii karjamaal kui ka tallides ning nende läheduses asuvates joogikohtades.
Jootjaid on lihtne kasutada ning hobused saavad kiiresti aru, et mugavam on vee juurdevoolu avamiseks vajutada klapile
mitte nina otsaga vaid selle ülaosaga. Kui koon (mokad) on joomiseks vabad, joobki hobune loomulikul viisil vee pindmiselt
kihilt. Seetõttu olemegi valinud jooginõuks lai ja sügav kauss, et tekiks joomiseks mugav veepind.

Töötamise põhimõte
Tõusutoru on varustatud isetühjeneva 3-tee
ventiiliga, mis on paigaldatud kaevu, mis omakorda
on süvistatud pinnasesse.
Kui jootjat ei kasutata on veest tühi nii ventiil kui
ka tõustoru, milles olev vesi võiks muidu külmuda.
Nii jootja ventiil ja tõusutoru on külmumiskindlad nii
kaua kuni on külmumiskindel ka vee toitetorustik.


Tootekood: FL-A342 ,   Tarneaeg: 14-21 päeva
1004,67 € (10%)
1116,30 €



AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Tootekood: AZP-AFO01.YCL ,   Tarneaeg: 3-4 nädala
1159,00 €
