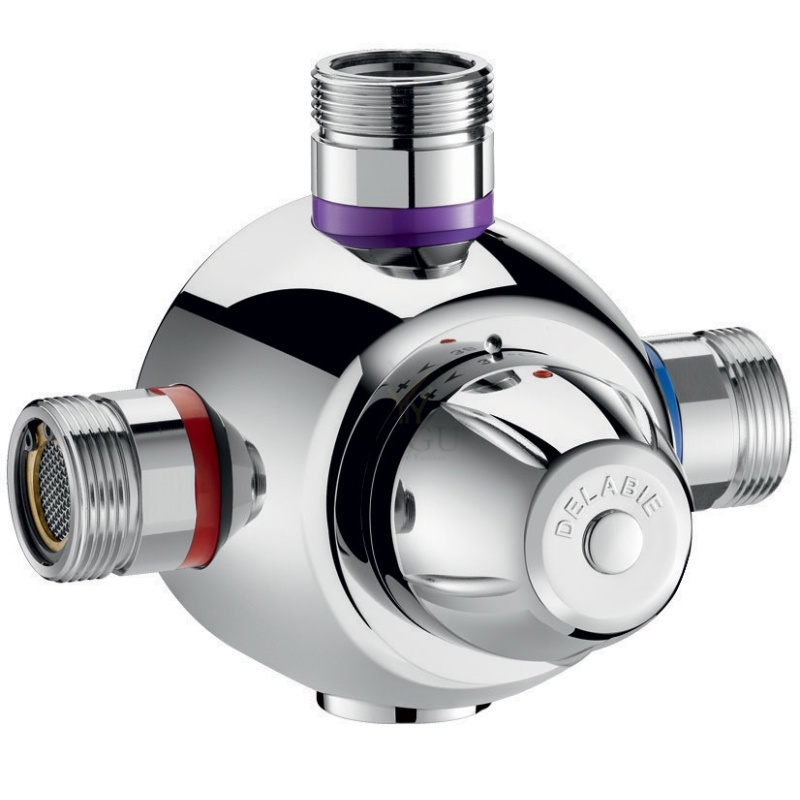

Delabie GROUP termostadi ventiil 1 1/2" PREMIX COMFORT 190L 32°C to 42°C

Tootekood: DE-731005
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21päeva
Hind:
2647,00 €
Kuumakse alates: 225,00 €
Kogus: - +
   - või -

PREMIX COMFORT
Ref. 731005

Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".

Failid

Sarnased tooted

Vajutava nupuga dušši segisti

ALPA

Presto

kroom

30 sek. töötsükkel 3 bar



Tootekood: P35814 ,   Tarneaeg: 14-21 päev
421,80 € (5%)
444,00 €

Sisu sobib kui Presto mudelile P50, 50TS

Siis ka Gustavsbergi kompletiletermostaadiga, kus on isesulguv osa.

Tootekood: P01010 ,   Tarneaeg: 3-5 päeva
84,55 € (5%)
89,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Tootekood: AZP-ZAC 1-20 ,   Tarneaeg: 3-4 nädalad
105,00 €

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system

> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards

> Hydraulic supply: G 1/2'' x 15

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme > Safety: With S® antiblocking system to prevent blocking in continuous flow

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Delivered with: 1 Filter gasket 1 coloured sticker

> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Tootekood: P64708 ,   Tarneaeg: 7-14 päeva
182,40 € (5%)
192,00 €

TEMPOMIX shower kit
Ref. 790912

Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).



TECHNICAL FEATURES

TEMPOMIX shower kit
Ref. 790912

Connector 1/2"
Technology Time flow
Flow rate 6 lpm
Tootekood: DE-790912 ,   Tarneaeg: 14 päeva
671,00 €
