Delabie GROUP termostadi ventiil 1 1/4" PREMIX COMFORT 140L 32°C to 42°C
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21päeva
"Minu maitsed on lihtsad: parimaga jään kergesti rahule."
Kiire tarne! Populaarsed tooted on laos olemas, nii et saadame need sulle 1-3 päeva jooksul!
Osta kohe ja naudi oma ostu kiirelt! #TarneajagaRõõm #KiireTarne

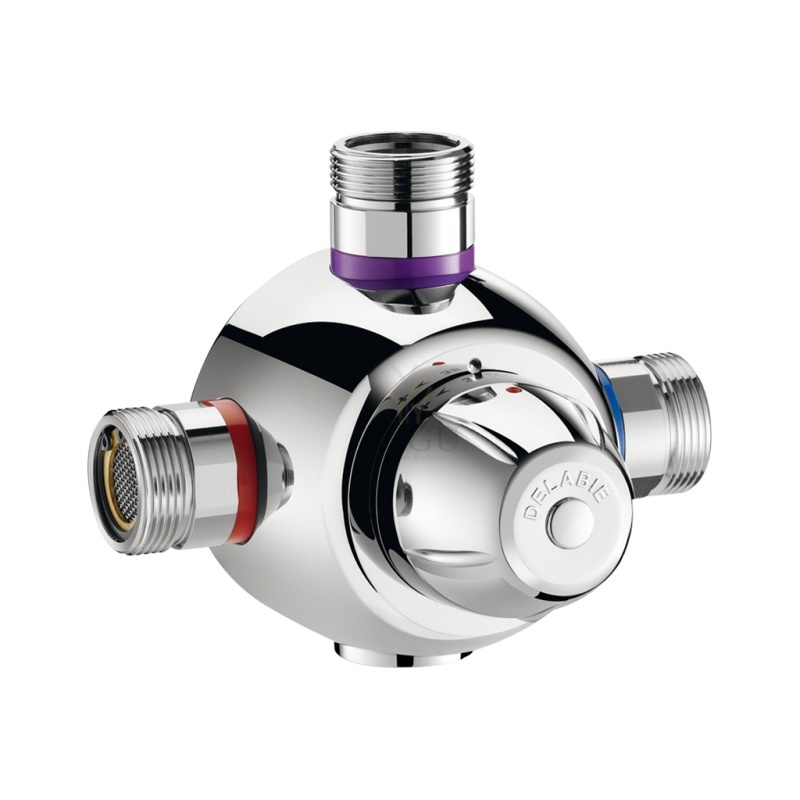

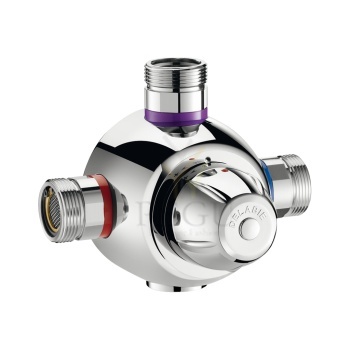

PREMIX COMFORT
Ref. 731004
Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1 ¼".
Failid
Vajutava nupuga segisti
Presto
Antiblokeerimise süsteemiga
kroom
15 sek. töötsükkel 3 bar
3-6 l/min
1/2" väliskeere
> Working pressure :
1 to 5 bar
> Flow :
10 l/min with integrated flow limiter
Hand-held shower on rail with chrome plated slide
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to use the adaptation kit under the reference 91026. On single control mixer tap with ceramic disks
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Adjustable tamper-proof temperature limiter to prevent scalding
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter. Anti-water-hammering device Fixed rotating shower head with anti-limescale spikes
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II with cold water or pre-mixed water
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
"Legionella" version: pre-equipped for PRESTO solutions
Non turnable push button. Non-removable, wear-proof red marker
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in concordance with ISO 9227
PREMIX COMFORT
Ref. 731005
Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".
