Delabie GROUP termostadi ventiil 1 1/4" PREMIX COMFORT T4 140L 32°C to 42°C
Kaubamärk:
Ühik: tk
Tarneaeg: 14-21päeva
Proovi kupongikoodi PEGU-KEVAD ! Vali toode täishinnaga, lisa see ostukorvi ja sisesta kupongikood ostu sooritamisel! Kupongikoodi kasutamise aeg on piiratud!
Lugupeetud PEGU.EE veebipoes külastajad!
Tere tulemast meie internetipoes! Me ei ole lihtsalt iseteeninduse kassa. Kui teil on vaja nõu või abi toote valimisel, võtke meiega julgesti ühendust kas e-mailiga või messendzeriga, telefoni teel. Oleme alati valmis pakkuma teile personaalset teenindust! Täname külastuse eest!
PEGU.EE meeskond

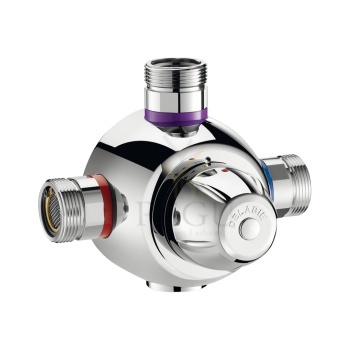

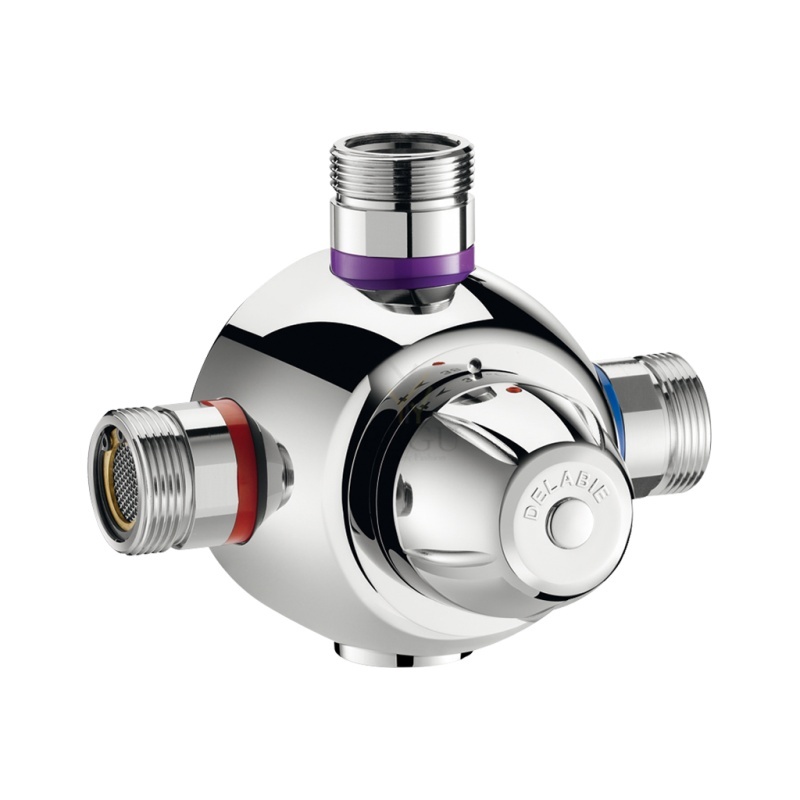

PREMIX COMFORT
Ref. 731400
Group thermostatic mixing valve for mixed water distribution from 32° to 42°C:
Anti-scalding safety.
Regulation of temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with automotive cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring).
For bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
140 lpm - M1 1/4".
Failid
1/2" väliskeere
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter
Fixed shower head with anti-limescale spikes Quick connector for hand-held shower
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 On P 50 tap NF II and thermostatic mixer tap EN 1111 (NF check valves)
G1/2" two-way reverser (shower head/hand-held shower reverser)
> Material :
Anodised aluminum profile (2.5mm thickness) Aluminum removable valve plate, peinted RAL 7005 High resistance RAL 7005 coloured ABS casings
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Anti-scald system: flow is immediately stopped if the cold water is cut off Maximum delivered temperature : pre-fixed at 38°
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Quick connector for hand-held shower
Fastening screws and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
TEMPOMIX shower kit
Ref. 790912
Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
TECHNICAL FEATURES
TEMPOMIX shower kit
Ref. 790912
Connector | 1/2" |
---|---|
Technology | Time flow |
Flow rate | 6 lpm |
Joogifontään veejahutussüsteemiga, pudeli taitmisega põrand/sein piezo nupp, R/V teras AISI304 230V/50Hz
AFO 01.SCL
drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall
AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
dimensions | 330 x 900 x 365 mm |
water outlet | d = 40 mm |
water inlet | G 1/2" |
water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
power supply | 230 V, 50 Hz |
power input | 830 W |
weight | 25 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 15 seconds (± 5 sec.)
> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock
> Security : Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922
